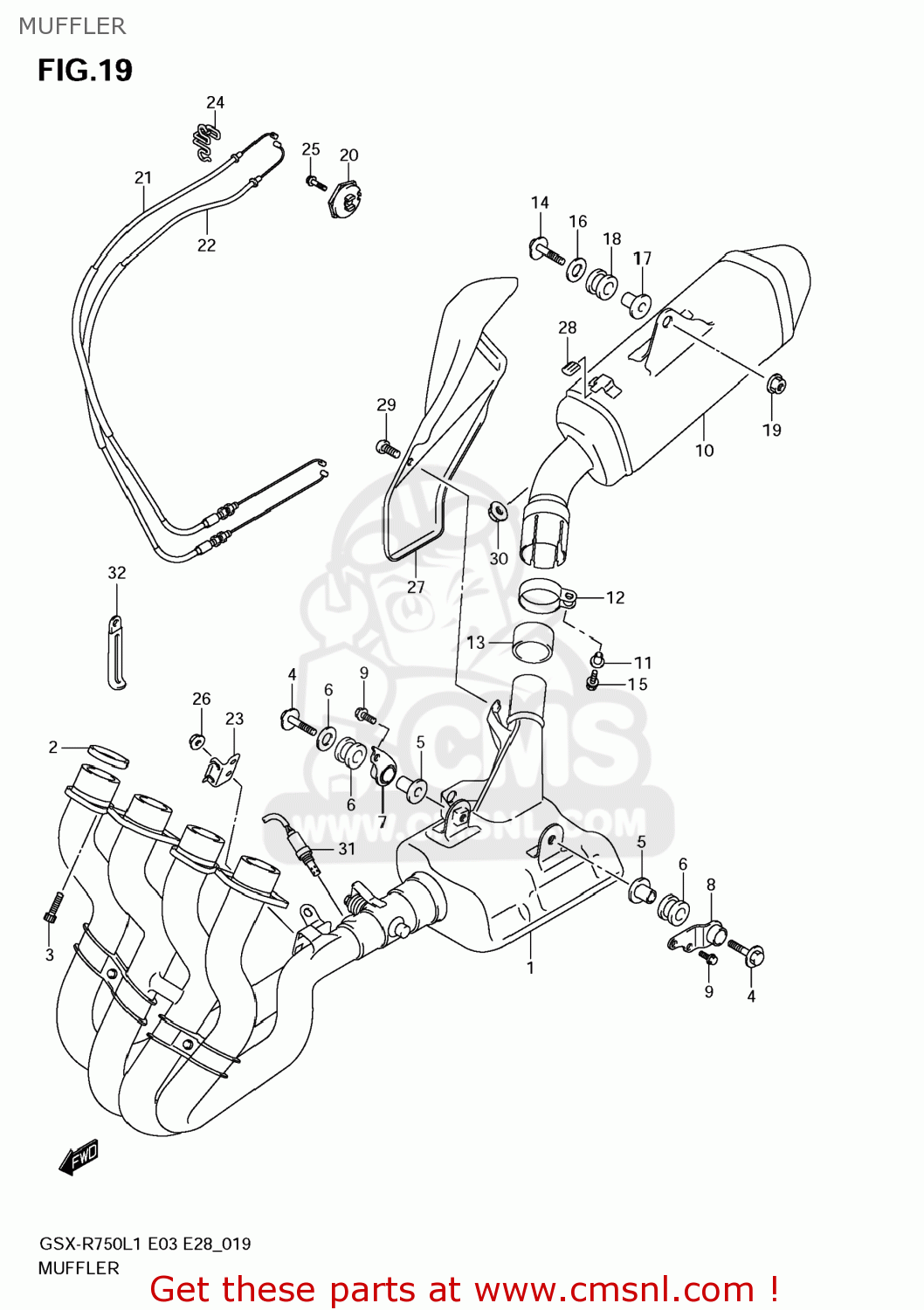

MUFFLER

ref

part #

description

quantity

1

1410015J00
ref: 1

EXHAUST

€ 1,203.50

2

1418146E00
ref: 2

GASKET,EXHAUST PIPE

€ 6.50

3

0910608165
ref: 3

BOLT(8X25)

€ 5.00

4

0911808152A05
ref: 4

BOLT(8X45)

€ 5.00

5

0918008152
ref: 5

SPACER(8.6X12X24.2)

€ 6.00

6

0932012077
ref: 6

CUSHION

€ 6.50

7

1477014J00
ref: 7

BRACKET,CHAMBER SPRT,R

€ 8.00

8

1477314J00
ref: 8

BRACKET,CHAMBER SPRT,L

€ 15.00

9

015500816A
ref: 9

BOLT

€ 2.50

10

1431015J00H01
ref: 10

BODY,MUFFLER

€ 1,162.50

11

1445814J00
ref: 11

SPACER,MUF CLAMP

€ 3.00

12

1445921H40
ref: 12

CLAMP,MUFFLER CONNECTOR

€ 17.50

13

1477142F10
ref: 13

CONNECTOR,MUFFLER

€ 13.00

14

0910308358
ref: 14

BOLT(8X45)

€ 3.50

15

0910308392
ref: 15

BOLT(8X40)

€ 4.00

16

0916008142
ref: 16

WASHER(8.5X28X1.5)

€ 2.50

17

0918008152
ref: 17

SPACER(8.6X12X24.2)

€ 6.00

18

0932012048
ref: 18

CUSHION

€ 5.00

19

083612508A
ref: 19

NUT

€ 2.50

20

1126918G01
ref: 20

PULLEY,CONTROLLER

€ 17.00

21

1127614J00
ref: 21

CABLE,EXHAUST VALVE NO.1

€ 34.00

22

1127714J00
ref: 22

CABLE,EXHAUST VALVE NO.2

€ 34.00

23

1425021H00
ref: 23

BRACKET,EXHAUST VALVE CABLE

€ 4.50

24

1425214J00
ref: 24

GUIDE,EXHAUST VALVE CABLE

€ 4.50

25

015470516A
ref: 25

BOLT

€ 2.00

26

083161006A
ref: 26

NUT

€ 2.50

27

1478014J00
ref: 27

COVER,MUFFLER FR

€ 187.00

28

1479510FA0
ref: 28

GROMMET

€ 3.00

29

0913906172
ref: 29

SCREW(6X10)

€ 3.00

30

0932008066
ref: 30

CUSHION

€ 7.50

31

1821323H01
ref: 31

SENSOR,OXYGEN

€ 253.00

32

0940406429
ref: 32

CLAMP(L:45)

€ 2.50
