FRONT FORK [ GT550K (KAYABA) ]

GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

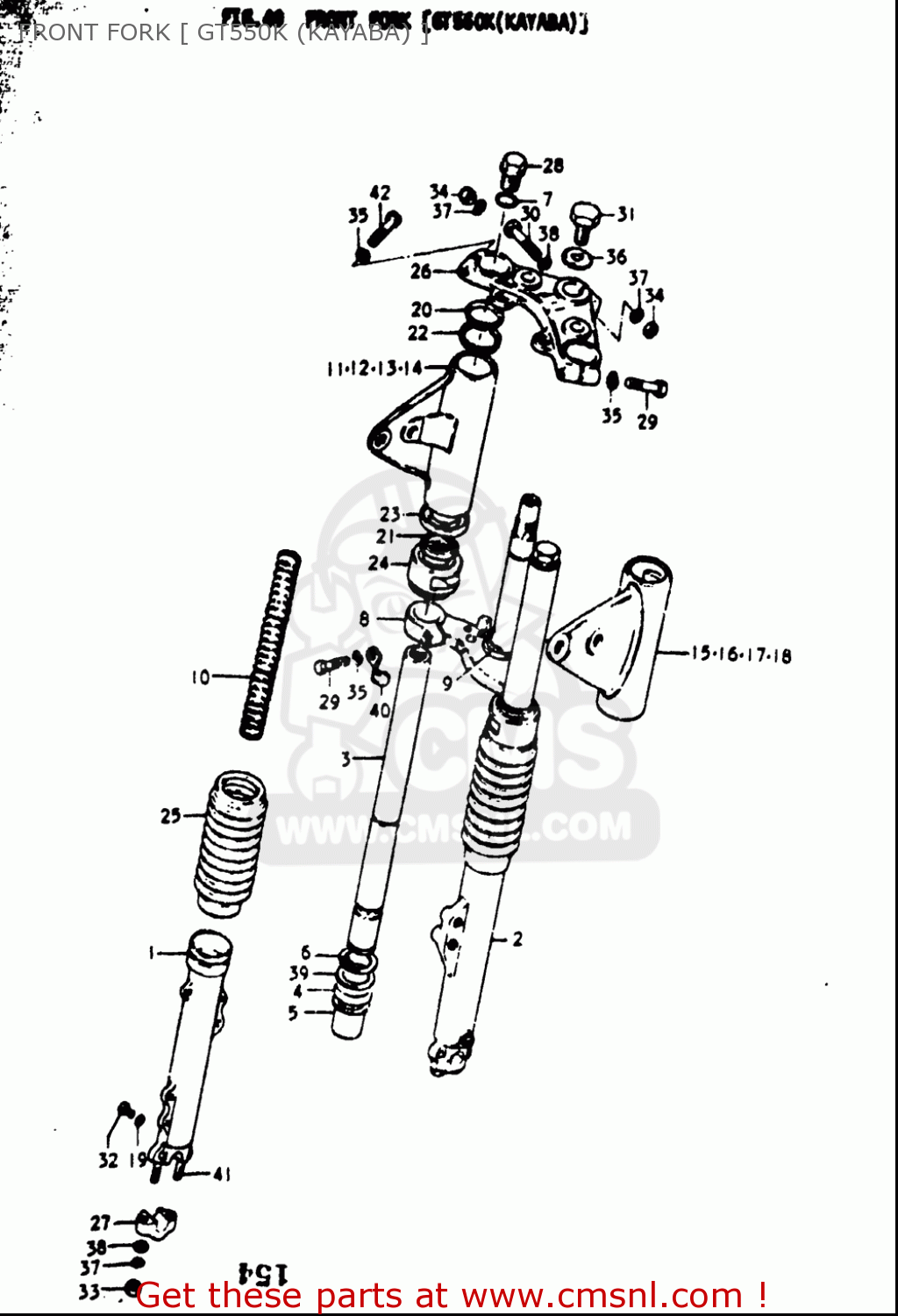

Front fork [ gt550k (kayaba) ] diagram GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

FRONT FORK [ GT550K (KAYABA) ] GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
FRONT FORK [ GT550K (KAYABA) ] GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
FRONT FORK [ GT550K (KAYABA) ] GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
4
5115334010
ref: 4
SEAL,OIL
5115334010
€ 15.00
7
5118118510
ref: 7
O-RING,FORK FITTING BOLT
€ 4.50
9
5162133001
ref: 9
RACE,STEERING OUTER LWR
5162133001
€ 10.00
19
5118303010
ref: 19
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
22
5155531000
ref: 22
GUIDE
5155531000
€ 11.50
23
5155131000
ref: 23
GUIDE
5155131000
€ 20.00
28
5135131010
ref: 28
CAP,FORK INNER TUBE
€ 49.00
29
0150010407
ref: 29
BOLT
0150010407
€ 3.00
30
0150008507
ref: 30
BOLT
0150008507
€ 3.00
32
0211204087
ref: 32
SCREW
0211204087
€ 1.50
33
0831000087
ref: 33
NUT
0831000087
€ 2.00
34
0831000087
ref: 34
NUT
0831000087
€ 2.00
35
0832101107
ref: 35
WASHER,LOCK
0832101107
€ 2.00
36
5135622011
ref: 36
WASHER
5135622011
€ 6.00
37
0832101087
ref: 37
WASHER,LOCK
0832101087
€ 2.00
38
0832201087
ref: 38
WASHER
0832201087
€ 2.00
41
0910808142
ref: 41
BOLT,STUD
0910808142
€ 3.00
