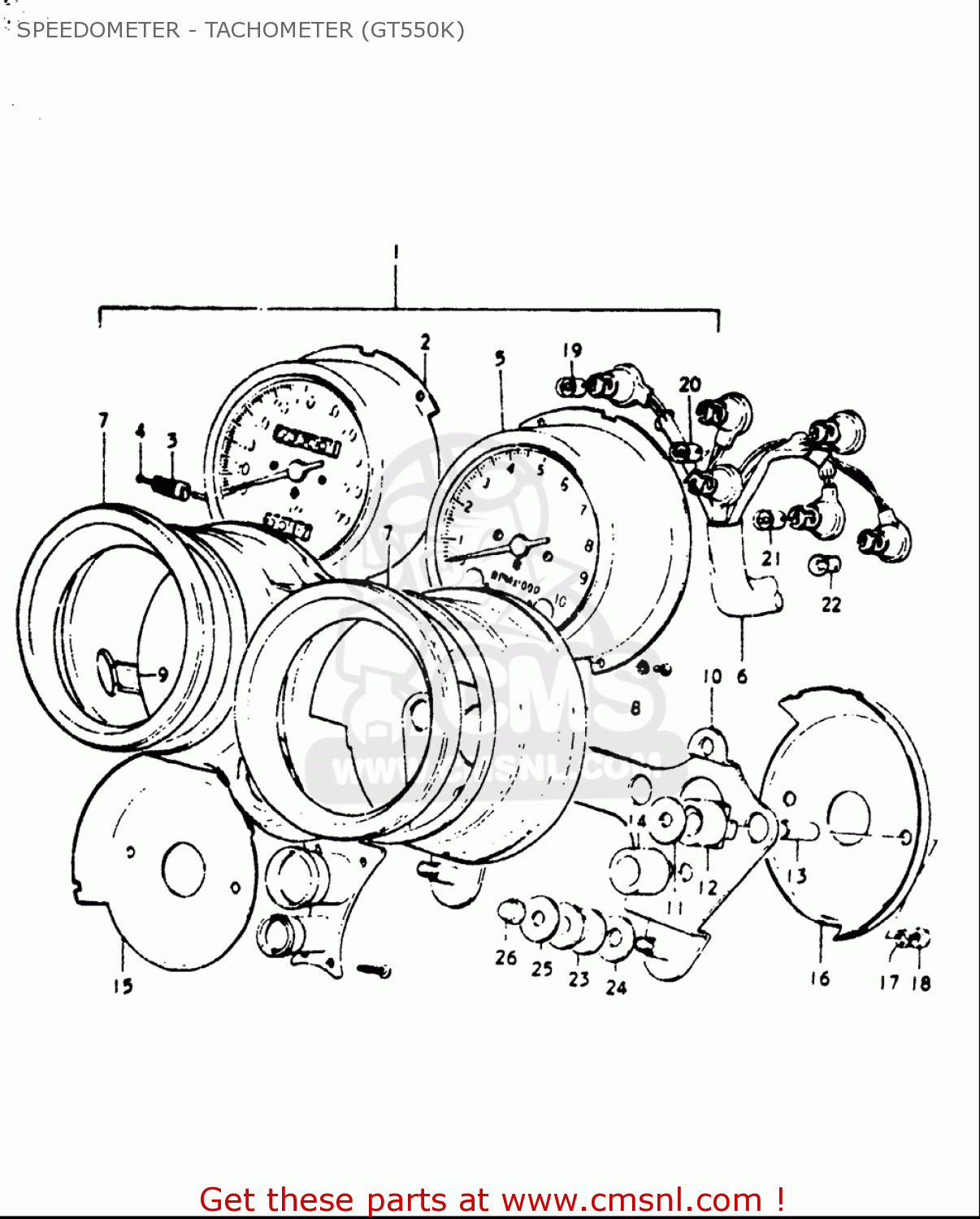

SPEEDOMETER - TACHOMETER (GT550K)

GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

Speedometer - tachometer (gt550k) diagram GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

SPEEDOMETER - TACHOMETER (GT550K) GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
SPEEDOMETER - TACHOMETER (GT550K) GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
SPEEDOMETER - TACHOMETER (GT550K) GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
3
3498033600
ref: 3
KNOB, TRIP METER
3498033600
€ 14.50
4
0913902003
ref: 4
SCREW(2X6)
0913902003
€ 2.00
7
3419033601
ref: 7
VISOR
3419033601
€ 5.50
9
3419233600
ref: 9
CAP
3419233600
€ 4.00
12
3495516420
ref: 12
CUSHION,METER NO.1
3495516420
€ 4.00
14
3495633600
ref: 14
CUSHION,METER
€ 0.00
17
0832101057
ref: 17
WASHER,LOCK
0832101057
€ 2.00
18
0831000057
ref: 18
NUT
0831000057
€ 2.50
19
0947112001
ref: 19
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
22
0947112004
ref: 22
BULB(12V1.7W,A71A)
0947112004
€ 2.00
23
3495615100
ref: 23
CUSHION
3495615100
€ 4.00
24
0916006084
ref: 24
WASHER(6.5X18X1.6)
0916006084
€ 2.00
25
0832201087
ref: 25
WASHER
0832201087
€ 2.00
26
0831310067
ref: 26
NUT
0831310067
€ 2.00
