FRONT FORK (GT550M

GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

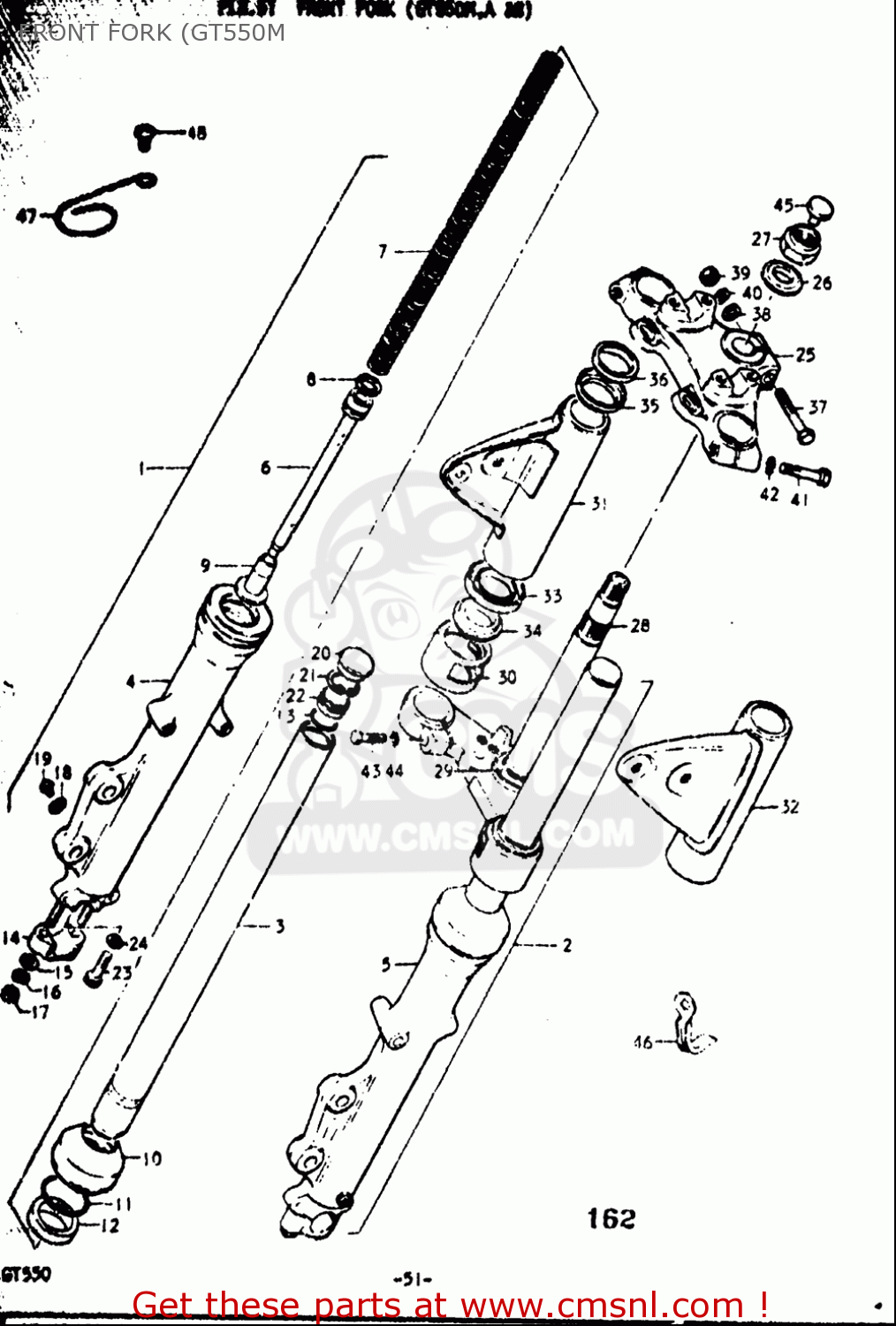

Front fork (gt550m diagram GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

FRONT FORK (GT550M GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
FRONT FORK (GT550M GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
FRONT FORK (GT550M GT550 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)
prices are in EUR
ref
part #
description
quantity
8
5119631230
ref: 8
RING
5119631230
€ 7.50
9
5119531230
ref: 9
PIECE,OIL LOCK
€ 0.00
10
5157120520
ref: 10
DUST SEAL,FR FORK
5157120520
€ 19.50
11
5115601A00
ref: 11
RING,OIL SEAL STOPPER
5115601A00
€ 3.50
12
5115319D10
ref: 12
SEAL,OIL 35X48X11
5115319D10
€ 14.00
13
5118131030
ref: 13
O RING
5118131030
€ 3.50
14
5113231030
ref: 14
HOLDER,AXLE
5113231030
€ 31.50
15
0832201087
ref: 15
WASHER
0832201087
€ 2.00
16
0832101087
ref: 16
WASHER,LOCK
0832101087
€ 2.00
17
0831000087
ref: 17
NUT
0831000087
€ 2.00
18
5118333030
ref: 18
GASKET (NAS)
5118333030
€ 6.50
19
0211204063
ref: 19
SCREW 4X6
0211204063
€ 2.00
20
5118931230
ref: 20
CAP
5118931230
€ 6.50
21
0833141309
ref: 21
CIRCLIP
0833141309
€ 2.00
23
5114748130
ref: 23
BOLT(8X27)
5114748130
€ 3.50
24
5114831030
ref: 24
GASKET (NAS)
5114831030
€ 4.00
26
5135631700
ref: 26
WASHER
5135631700
€ 9.50
27
5135331710
ref: 27
NUT
5135331710
€ 29.00
29
5162133001
ref: 29
RACE,STEERING OUTER LWR
5162133001
€ 10.00
30
5157037000
ref: 30
COVER,FORK LWR BRACKET
5157037000
€ 24.50
33
5155131000
ref: 33
GUIDE
5155131000
€ 20.00
34
5155331000
ref: 34
CUSHION,HEADLAMP BRACKET
5155331000
€ 12.50
35
5155531000
ref: 35
GUIDE
5155531000
€ 11.50
36
5155631000
ref: 36
CUSHION,HEADLAMP BRACKET UPR
5155631000
€ 5.00
37
0150008507
ref: 37
BOLT
0150008507
€ 3.00
38
0832201087
ref: 38
WASHER
0832201087
€ 2.00
39
0831000087
ref: 39
NUT
0831000087
€ 2.00
40
0832101087
ref: 40
WASHER,LOCK
0832101087
€ 2.00
41-1
0150010407
ref: 41-1
BOLT
0150010407
€ 3.00
42
0832101107
ref: 42
WASHER,LOCK
0832101107
€ 2.00
43
0150010407
ref: 43
BOLT
0150010407
€ 3.00
44
0832101107
ref: 44
WASHER,LOCK
0832101107
€ 2.00
45
0925008005
ref: 45
CAP(OD:20)
0925008005
€ 2.50
46
3499118100
ref: 46
LAMP ASSEMBLY
€ 0.00
47
5145531010
ref: 47
CLIP
5145531010
€ 5.00
48
0912505117
ref: 48
SCREW(5X6)
0912505117
€ 2.50
