CYLINDER HEAD (REAR)

GV1200GLF2 MADURA 1985 (F) USA (E03)

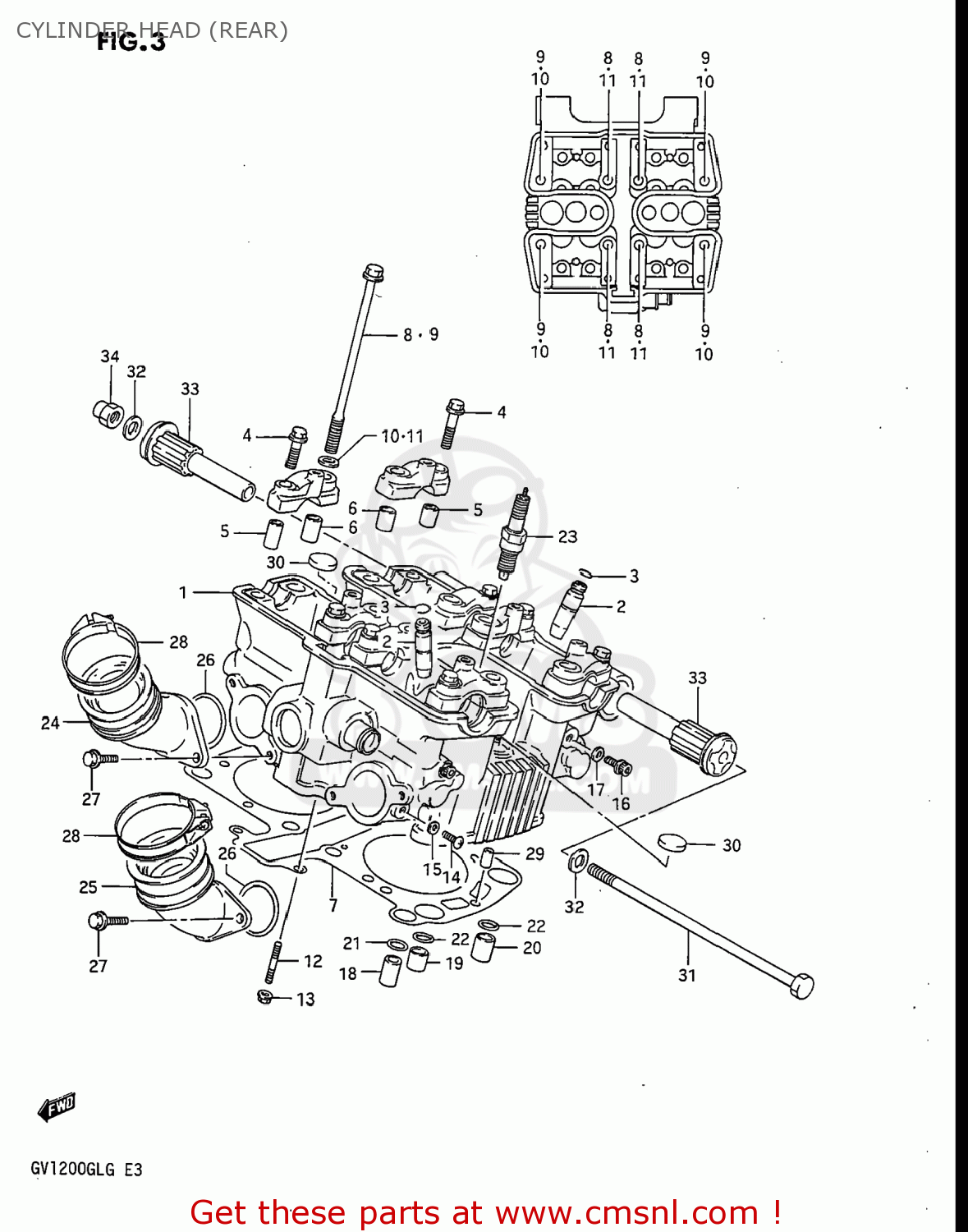

Cylinder head (rear) diagram GV1200GLF2 MADURA 1985 (F) USA (E03)

CYLINDER HEAD (REAR) GV1200GLF2 MADURA 1985 (F) USA (E03)
CYLINDER HEAD (REAR) GV1200GLF2 MADURA 1985 (F) USA (E03)
CYLINDER HEAD (REAR) GV1200GLF2 MADURA 1985 (F) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1110305A00
ref: 1-1
11103-05A01
HEAD ASSEMBLY,CYLINDER,REAR
€ 594.50
1-2
1110305A01
ref: 1-2
HEAD,CYLINDER,REAR
€ 594.50
1-2
1110305A01
ref: 1-2
HEAD,CYLINDER,REAR
€ 594.50
2
1111505A70
ref: 2
11115-33271
GUIDE,VALVE
€ 18.00
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0910308136
ref: 4
BOLT
€ 0.00
5
0920611005
ref: 5
09206-11017
PIN (11X20)(SUS)
€ 6.50
6
0920613004
ref: 6
PIN(10.4X13X22)
0920613004
€ 3.00
7-1
1114205A03
ref: 7-1
11142-05A04
GASKET,CYLINDER HEAD,REAR (MCA)
€ 80.50
7-2
1114205A04
ref: 7-2
GASKET,CYLINDER HEAD,REAR (MCA)
1114205A04
€ 80.50
8
0910310104
ref: 8
09103-10133
BOLT
€ 7.50
9
0910310105
ref: 9
09103-10134
BOLT
€ 7.50
10
0916011005
ref: 10
WASHER
€ 0.00
11
0916010085
ref: 11
09160-10142
WASHER (10X20X2.3)
0916010085
€ 2.00
12
0142106255
ref: 12
01421-0625A
STUD 6X25
0142106255
€ 2.00
13
0831616064
ref: 13
08316-1006B
NUT 6MM
0831616064
€ 2.50
14
0211205085
ref: 14
02112-0508A
SCREW
€ 2.00
15
0916805010
ref: 15
GASKET(5.3X9.3X1.2) (NAS)
0916805010
€ 2.00
16
0712006125
ref: 16
07120-0612B
BOLT
€ 3.50
17
0916806018
ref: 17
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
18
0920609003
ref: 18
PIN(6.4X9X20)
0920609003
€ 12.50
19-1
0920613005
ref: 19-1
PIN
€ 0.00
19-2
0920613005
ref: 19-2
PIN
€ 0.00
20
0920613006
ref: 20
09206-13017
PIN
0920613006
€ 9.00
21
0928009005
ref: 21
O RING(D:1.9,ID:8.6)
0928009005
€ 4.00
22
0928012009
ref: 22
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
23-1
0948200144
ref: 23-1
SPARK PLUG D8EA
0948200144
€ 3.50
23-2
0948200145
ref: 23-2
09482-00223
SPARK PLUG X24ES-U
€ 3.50
24-1
1313005A00
ref: 24-1
13120-05A10
NET,INTAKE
€ 57.50
24-2
1312005A10
ref: 24-2
PIPE,INTAKE (FRONT,L/RE
€ 57.50
25-1
1311005A00
ref: 25-1
13110-05A10
PIPE,INTAKE
€ 48.00
25-2
1311005A10
ref: 25-2
PIPE,INTAKE (FRONT,R/RE
€ 48.00
26
0928040003
ref: 26
09280-40010
O-RING (D:2.4 ID:39.7)
0928040003
€ 3.50
27
0151706205
ref: 27
01550-0620A
BOLT
€ 2.50
28
1317005A00
ref: 28
09402-52501
CLAMP,PIPE
€ 9.00
29
0621104103
ref: 29
04221-04109
PIN
0621104103
€ 1.50
30
0924222001
ref: 30
PLUG
0924222001
€ 2.50
31
0910410023
ref: 31
BOLT
€ 0.00
32
0832211105
ref: 32
08322-0110A
WASHER
€ 2.50
33
1167005A00
ref: 33
BUSHING,ENGINE MOUNT
€ 18.00
34
0915910039
ref: 34
09159-10064
NUT
0915910039
€ 8.50
