REAR SHOCK ABSORBER

GV1200GLF2 MADURA 1985 (F) USA (E03)

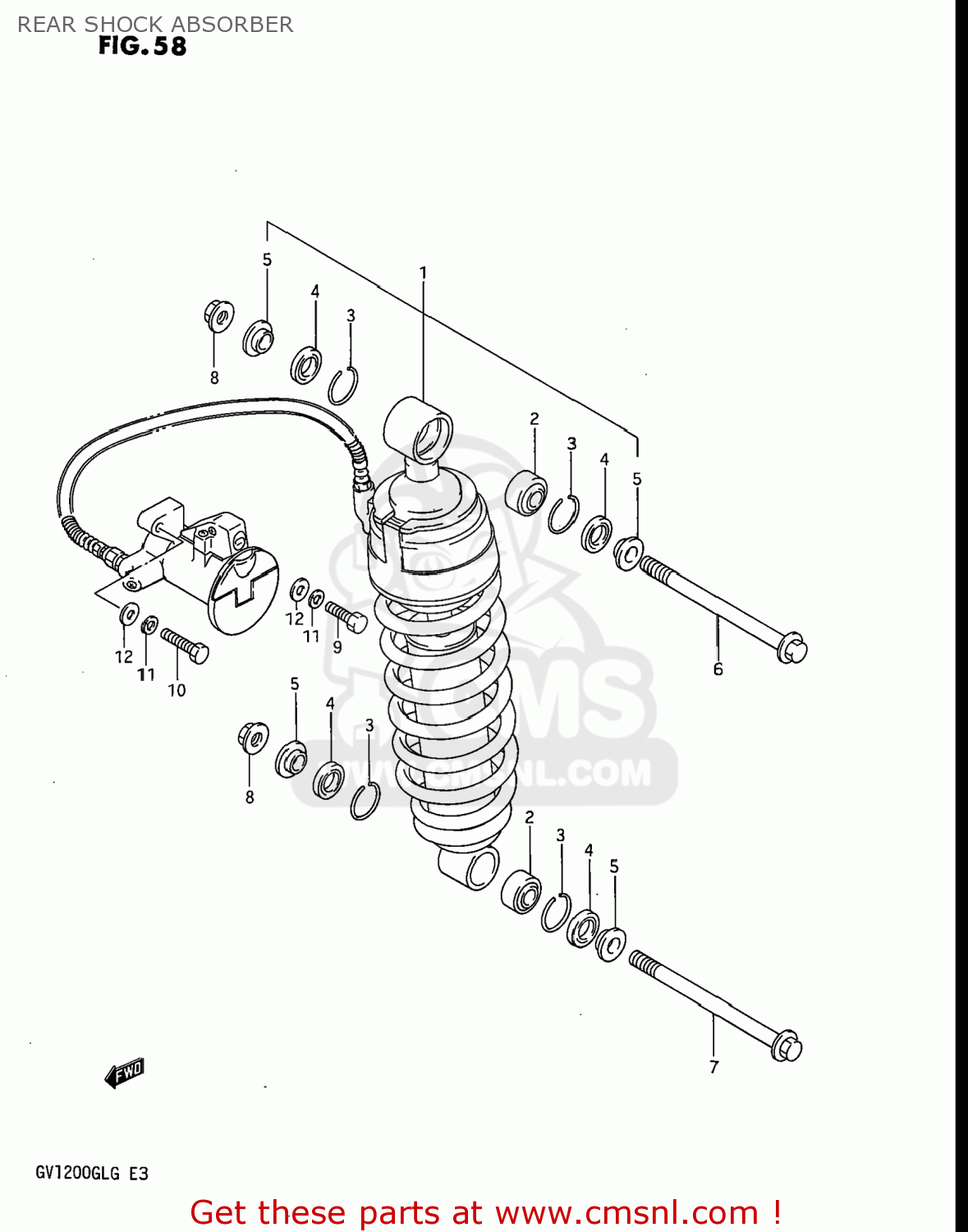

Rear shock absorber diagram GV1200GLF2 MADURA 1985 (F) USA (E03)

REAR SHOCK ABSORBER GV1200GLF2 MADURA 1985 (F) USA (E03)

REAR SHOCK ABSORBER GV1200GLF2 MADURA 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6210005A00
ref: 1

ABSORBER ASSEMBLY,REAR SHOCK

€ 807.00

2

6217543400
ref: 2
62175-00B00

BEARING,REAR SHOCK ABSORBER

€ 66.00

3

6227714200
ref: 3
62657-34A01

RING

€ 1.50

4

6222643410
ref: 4

SEAL,DUST

€ 7.50

5

6268443401
ref: 5

SPACER

€ 7.00

6

6231105A00
ref: 6

BOLT,REAR SHOCK ABSORBER

€ 4.00

7

0910310076
ref: 7

BOLT(10X118)

€ 7.50

8

0831931108
ref: 8

NUT

€ 3.00

9

0110706205
ref: 9
01500-0620A

BOLT

€ 2.00

10

0110706255
ref: 10
01500-0625A

BOLT

€ 2.50

11

0832121064
ref: 11
08321-0106A

WASHER,LOCK

€ 2.00

12

0832221064
ref: 12
08322-0106B

WASHER

€ 2.00
