TRANSMISSION (MODEL F/F2)

GV1200GLF2 MADURA 1985 (F) USA (E03)

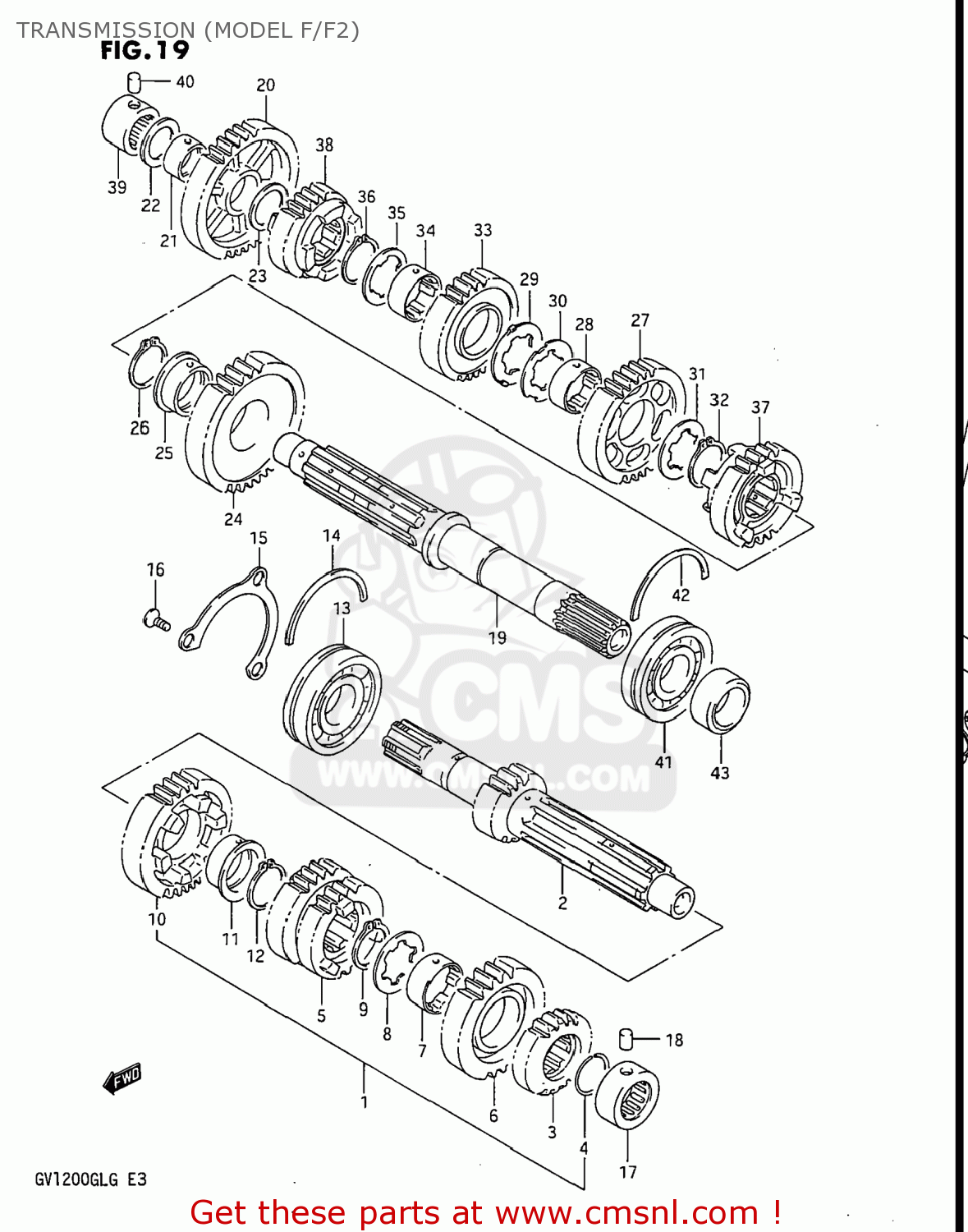

Transmission (model f/f2) diagram GV1200GLF2 MADURA 1985 (F) USA (E03)

TRANSMISSION (MODEL F/F2) GV1200GLF2 MADURA 1985 (F) USA (E03)
TRANSMISSION (MODEL F/F2) GV1200GLF2 MADURA 1985 (F) USA (E03)
TRANSMISSION (MODEL F/F2) GV1200GLF2 MADURA 1985 (F) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2412005A00
ref: 1
24120-05A01
SHAFT,COUNTER
€ 253.50
2
2410005851
ref: 2
COUNTER SHAFT
€ 91.50
3
2422105A00
ref: 3
GEAR,SECOND DRIVE
€ 61.50
4
0938028005
ref: 4
CIRCLIP
€ 1.00
5
2423105A01
ref: 5
GEAR,THIRD/FOURTH DRIVE
€ 62.50
6
2425105A01
ref: 6
GEAR,FIFTH DRIVE
€ 57.00
7
2433249000
ref: 7
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
8
0916728001
ref: 8
WASHER,LOCK
0916728001
€ 3.00
9
0833111289
ref: 9
08331-3128A
CIRCLIP
€ 2.50
10
2426105A00
ref: 10
GEAR,SIXTH DRIVE
€ 55.50
11
0930128001
ref: 11
BUSH(28X32X2)
0930128001
€ 19.50
12
0833111289
ref: 12
08331-3128A
CIRCLIP
€ 2.50
13
0926225051
ref: 13
09262-25105
BEARING(25X62X17)
0926225051
€ 59.50
14
0939062006
ref: 14
09390-62012
C-RING
0939062006
€ 5.00
15
2474105A00
ref: 15
PLATE,COUNTERSHAFT BEARING
€ 6.00
16
0212206167
ref: 16
SCREW
0212206167
€ 2.00
17
0926320054
ref: 17
ROLLER BEARING (20X36X1
€ 36.50
18
0422107209
ref: 18
PIN
0422107209
€ 1.50
19
2413105A03
ref: 19
SHAFT,DRIVE
€ 94.50
20
2431105A00
ref: 20
GEAR,FIRST DRIVEN
€ 62.50
21
0930022005
ref: 21
24312-02F00
BUSHING
€ 19.50
22
0821120343
ref: 22
WASHER
€ 2.50
23
0821122321
ref: 23
WASHER
0821122321
€ 3.00
24
2432105A00
ref: 24
GEAR,SECOND DRIVEN
€ 108.50
25
0930128001
ref: 25
BUSH(28X32X2)
0930128001
€ 19.50
26
0833111289
ref: 26
08331-3128A
CIRCLIP
€ 2.50
27
2433105A00
ref: 27
GEAR,THIRD DRIVEN
€ 63.00
28
2433249000
ref: 28
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
29
0916928001
ref: 29
WASHER
0916928001
€ 3.00
30
0916728002
ref: 30
WASHER,LOCK
0916728002
€ 3.00
31
0916728001
ref: 31
WASHER,LOCK
0916728001
€ 3.00
32
0833111289
ref: 32
08331-3128A
CIRCLIP
€ 2.50
32
0833111289
ref: 32
08331-3128A
CIRCLIP
€ 2.50
33
2434105A01
ref: 33
GEAR,FOURTH DRIVEN
€ 104.00
34
2433249000
ref: 34
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
35
0916728001
ref: 35
WASHER,LOCK
0916728001
€ 3.00
36
0833111289
ref: 36
08331-3128A
CIRCLIP
€ 2.50
37-1
2435105A02
ref: 37-1
GEAR,FIFTH DRIVEN
€ 96.00
37-2
2435105A03
ref: 37-2
GEAR,FIFTH DRIVEN
€ 58.50
38-1
2436105A03
ref: 38-1
24361-05A04
GEAR,SIXTH DRIVEN
€ 54.00
38-2
2436105A04
ref: 38-2
GEAR,SIXTH DRIVEN
€ 54.00
39
0926320040
ref: 39
BEARING(20X34X20)
0926320040
€ 42.50
40
0422107209
ref: 40
PIN
0422107209
€ 1.50
41
0926225065
ref: 41
09262-25105
BALL BEARING 25X62X17
0926225065
€ 59.50
42
0939062006
ref: 42
09390-62012
C-RING
0939062006
€ 5.00
43
2413645100
ref: 43
SPACER,DRIVESHAFT,LEFT
€ 13.50
43
2413645100
ref: 43
SPACER,DRIVESHAFT,LEFT
€ 13.50
