CAM CHAIN

GV1400GD CAVALCADE 1988 (J) USA (E03)

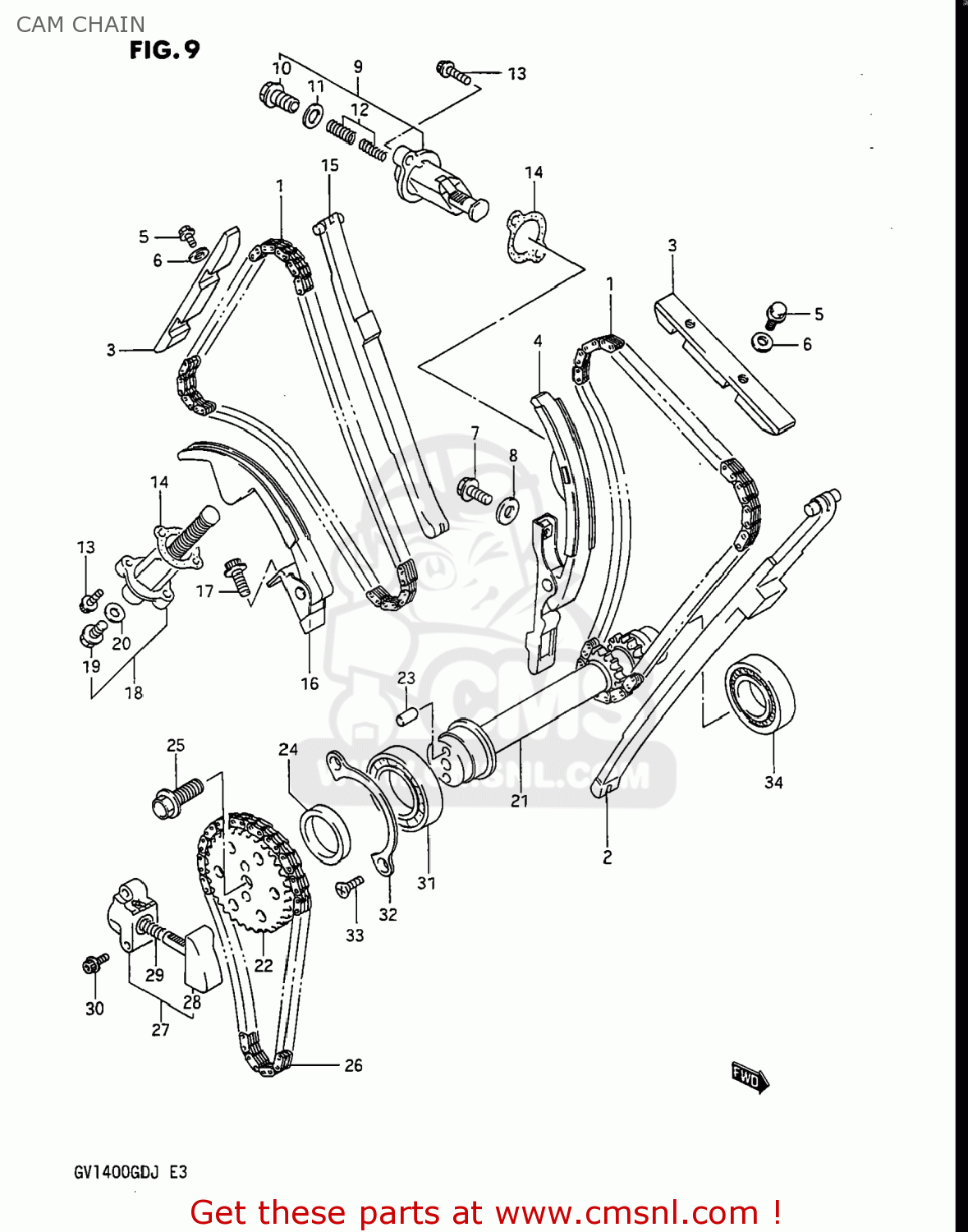

Cam chain diagram GV1400GD CAVALCADE 1988 (J) USA (E03)

CAM CHAIN GV1400GD CAVALCADE 1988 (J) USA (E03)

CAM CHAIN GV1400GD CAVALCADE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276024A00
ref: 1

CHAIN COMP,CAMSHAFT DRIVE

€ 115.00

2

1277124A00
ref: 2

GUIDE,FRONT CAM CHAIN

€ 39.00

3

1278205A01
ref: 3

GUIDE,RR CAM CHAIN NO.1

€ 28.00

4

1281024A00
ref: 4

TENSIONER COMP,FRONT CAM

€ 65.00

5

0151706108
ref: 5
01550-06107

BOLT

€ 2.50

6

0916806015
ref: 6
09168-06023

WASHER

€ 2.00

7

0151708205
ref: 7
01550-0820A

BOLT

€ 3.00

8

0916808014
ref: 8
09168-08021

GASKET (NAS)

€ 2.00

9

1283105A00
ref: 9

ADJUSTER,FRONT TENSIONER

€ 98.50

10

1283305A00
ref: 10

PLUG,FR TENSIONER ADJ

€ 9.00

11

1283705A00
ref: 11
09168-12018

GASKET,TENSIONER ADJUSTER (NAS)

€ 2.00

12

1283805A00
ref: 12

SPRING SET,FRONT TENSIONER

€ 6.00

13

0711006255
ref: 13
07130-0625B

BOLT

€ 3.00

14

1283724A00
ref: 14
12837-24A10

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

15

1277224A00
ref: 15

GUIDE,REAR CAM CHAIN N

€ 36.50

16

1281524A00
ref: 16

TENSIONER COMP,REAR CAM

€ 66.00

17

0712008208
ref: 17
07120-0820A

BOLT

€ 3.00

18

1283224A01
ref: 18

ADJUSTER ASSY,RR TENSIONER

€ 134.50

19

1283405A01
ref: 19

PLUG

€ 0.00

20

1283705A00
ref: 20
09168-12018

GASKET,TENSIONER ADJUSTER (NAS)

€ 2.00

21

1271505A01
ref: 21

SHAFT, IDLER

€ 131.00

22

1274505A00
ref: 22

SPROCKET,IDLER SHAFT

€ 43.50

23

0926106001
ref: 23

PIN(6X14)

€ 0.00

24

0918032004
ref: 24

SPACER

€ 0.00

25

0910310112
ref: 25

BOLT(10X24)

€ 4.00

26

1276105A00
ref: 26

CHAIN,IDLER SHAFT,DRIVE

€ 75.00

27

1283505A00
ref: 27

ADJUSTER,IDLE CHAIN

€ 58.50

28

1283605A00
ref: 28

BOLT,ADJUST OIL HOSE UNION

€ 0.00

29

1283905A00
ref: 29

PLUG,ADJUSTER

€ 0.00

30

0711006358
ref: 30
07130-06357

BOLT

€ 3.50

31

0926232005
ref: 31

BALL BEARING 32X58X13

€ 35.00

32

1274605A00
ref: 32

WASHER

€ 5.00

33

0212206168
ref: 33
02122-06167

SCREW

€ 2.00

34

0926420004
ref: 34

ROLLER BEARING (20X47X

€ 106.50
