prices are in EUR
ref
part #
description
quantity

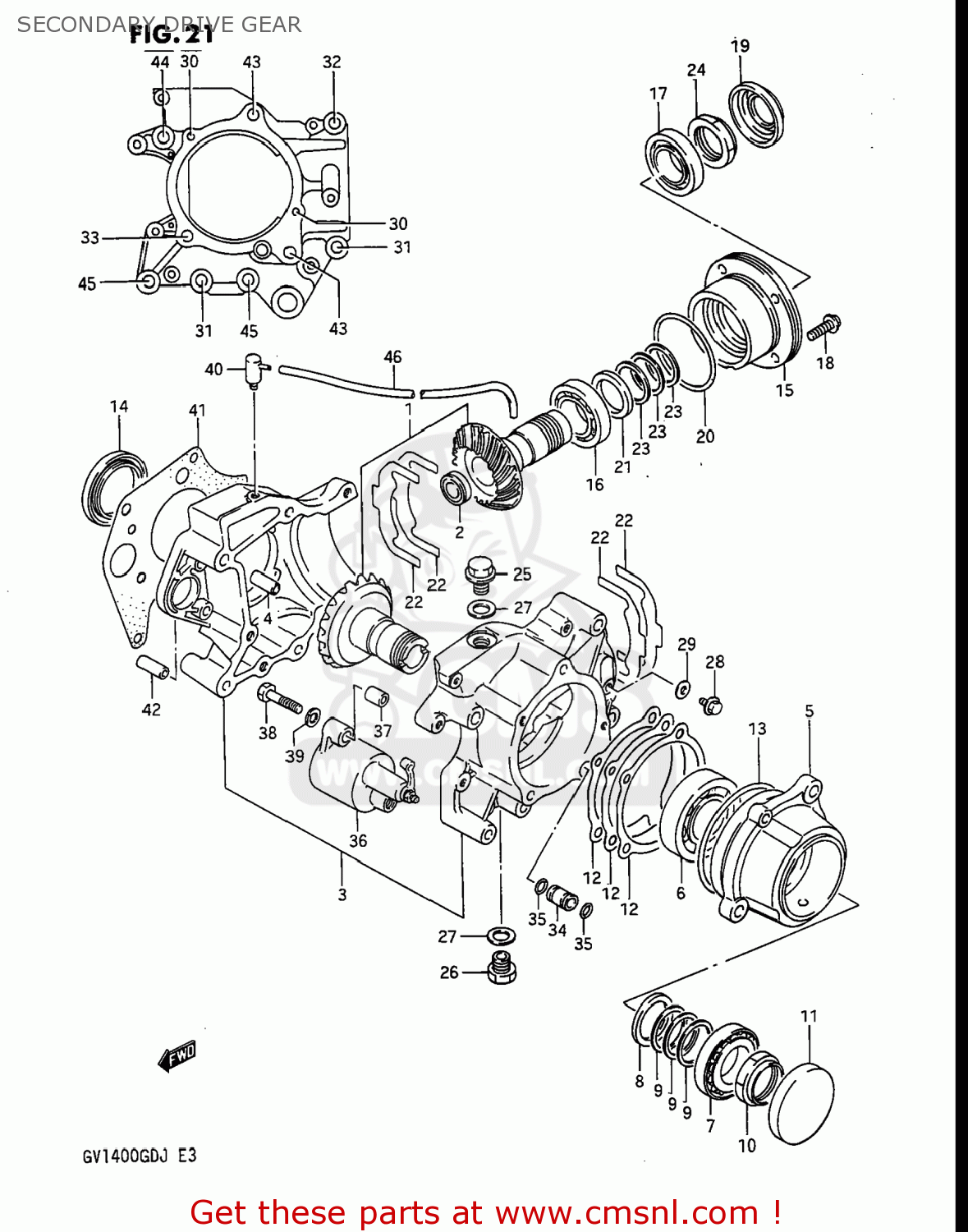

GEAR & CASE SET,SECONDARY BEVEL
GEAR & CASE SET,SECONDARY BEVEL
3
CASE ASSEMBLY,SECONDARY
5
HOUSING,SECONDARY DRIVE BEARING
9-1
SHIM (32X38X1.6)
9-3
SHIM (32X38X1.64)
9-4
SHIM (32X38X1.66)
9-5
SHIM (32X38X1.68)
9-6
SHIM (32X38X1.7)
9-7
SHIM (32X38X1.8)
9-8
SHIM (32X38X1.9)
9-9
SHIM(32X38X2)
10
NUT,SECONDARY DRIVE BELT
11
PLUG
12-1
SHIM,SECONDARY DRIVE
12-2
SHIM,SECONDARY DRIVE
12-3
SHIM,SECONDARY DRIVE
12-4
SHIM,SECONDARY DRIVE
12-5
SHIM,SECONDARY DRIVE
13
O RING(D:3,ID:78)
14
SEAL,OIL(48X62X6)
15
HOUSING,SECONDARY DRIVEN BEVEL
16
BEARING(35X62X18)
18
BOLT
20
O RING(D:3.1,ID:69.4)
22-1
SHIM,SECONDARY DRIVEN HOUSING
22-2
SHIM,SECONDARY DRIVEN HOUSING
22-3
SHIM,SECONDARY DRIVEN HOUSING
22-4
SHIM,SECONDARY DRIVEN HOUSING
22-5
SHIM,SECONDARY DRIVEN HOUSING
23-1
SHIM (32X38X1.6)
23-3
SHIM (32X38X1.64)
23-4
SHIM (32X38X1.66)
23-5
SHIM (32X38X1.68)
23-6
SHIM (32X38X1.7)
23-7
SHIM (32X38X1.8)
23-8
SHIM (32X38X1.9)
23-9
SHIM(32X38X2)
24
NUT
25
PLUG (14X12)
27
GASKET(14X19.2X2) (NAS)
28
BOLT
29
GASKET(5.8X13X1.2) (NAS)
30
BOLT 6X25
33
BOLT(8X95)
35
O-RING
36
CYLINDER,CLUTCH RELEASE
37
PIN
39
WASHER,LOCK
40
BPLUG,BEVEL GEAR BREATHER
42
PIN(10.4X13X22)
45
BOLT(8X110)
