FRONT WHEEL (GV1400GDG/GTG ~F.NO.103764)

GV1400GD CAVALCADE 1988 (J) USA (E03)

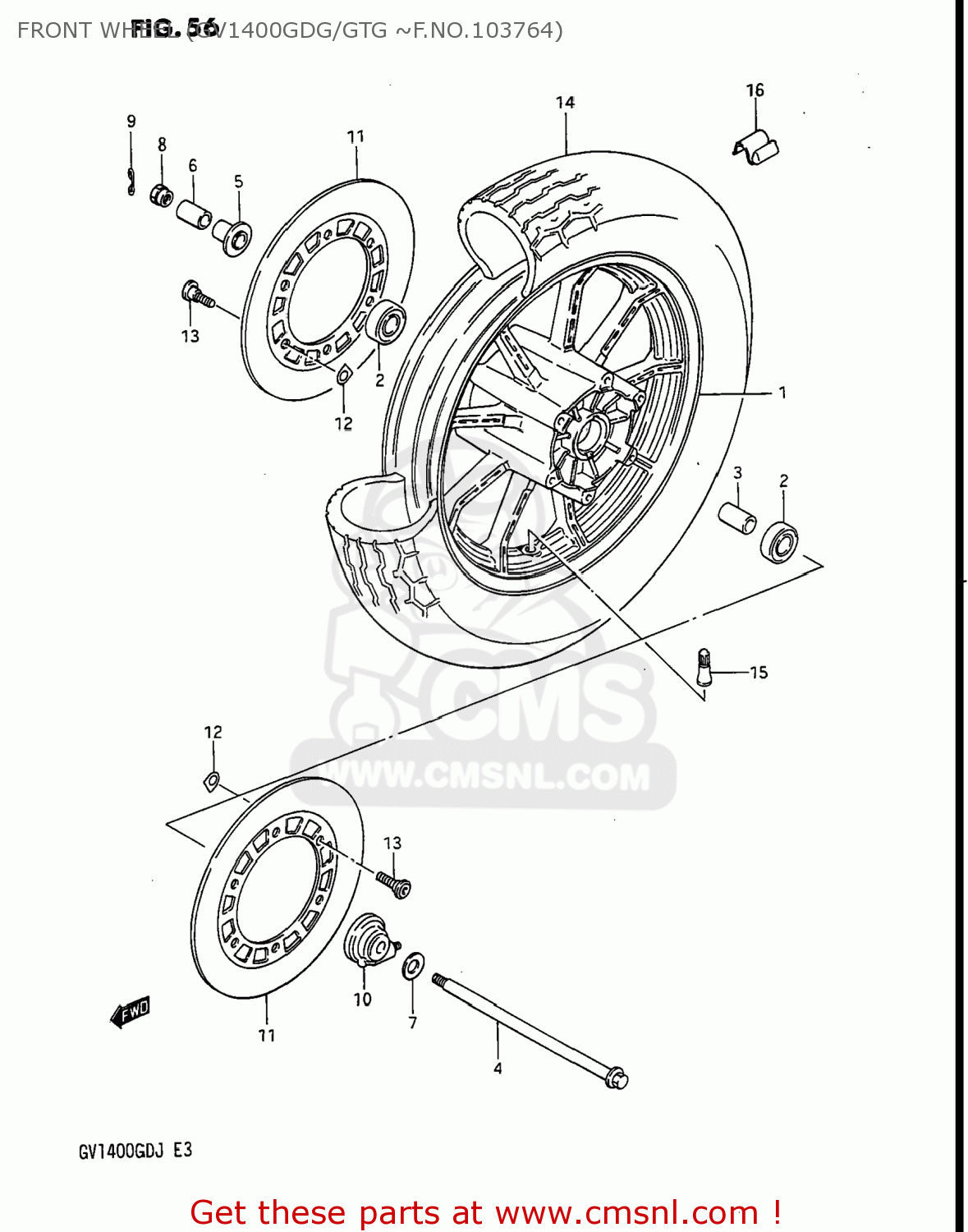

Front wheel (gv1400gdg/gtg ~f.no.103764) diagram GV1400GD CAVALCADE 1988 (J) USA (E03)

FRONT WHEEL (GV1400GDG/GTG ~F.NO.103764) GV1400GD CAVALCADE 1988 (J) USA (E03)

FRONT WHEEL (GV1400GDG/GTG ~F.NO.103764) GV1400GD CAVALCADE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5411124A01291
ref: 1
54111-24A02-291

WHEEL,FRONT

€ 571.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015072
ref: 3

SPACER

€ 14.50

4

5471124A00
ref: 4
54711-24A01

AXLE,FRONT

€ 39.00

5

5474018410
ref: 5

SPACER,FR HUB BEARING,R

€ 17.00

6

5474149300
ref: 6

SPACER,FR AXLE,R

€ 19.00

7

0916015038
ref: 7

WASHER

€ 0.00

8

0915912018
ref: 8

NUT (12MM)

€ 9.00

9

5479138A00
ref: 9

PIN,FRONT AXLE

€ 2.50

10

5460024A00
ref: 10

BOX ASSY,SPEEDOMETER GEAR

€ 85.50

11

5921124A00
ref: 11

DISC,FRONT BRAKE

€ 246.50

12

5921424A00
ref: 12
59214-19C00

SHIM,BRAKE DISC

€ 4.50

13

0910608049
ref: 13

BOLT(8X25.5)

€ 4.00

14-1

5510024A00
ref: 14-1
55100-24A52

TIRE,FRONT

€ 104.00

14-2

5510024A50
ref: 14-2
55100-24A52

TIRE,FRONT

€ 104.00

15

4313075150
ref: 15
43130-78030

VALVE,TIRE

€ 14.50

16-1

5541100A00291
ref: 16-1
55411-00A00-10V

BALANCER,WHEEL

€ 6.50

16-2

5541200A00291
ref: 16-2
55412-17G00

BALANCER,WHEEL

€ 7.00

16-3

5541300A00291
ref: 16-3
55413-00A01

BALANCER,WHEEL

€ 4.00

16-3

5541300A00291
ref: 16-3
55413-00A01

BALANCER,WHEEL

€ 4.00

16-3

5541300A00291
ref: 16-3
55413-00A01

BALANCER,WHEEL

€ 4.00
