CYLINDER HEAD COVER

GV1400GD CAVALCADE 1988 (J) USA (E03)

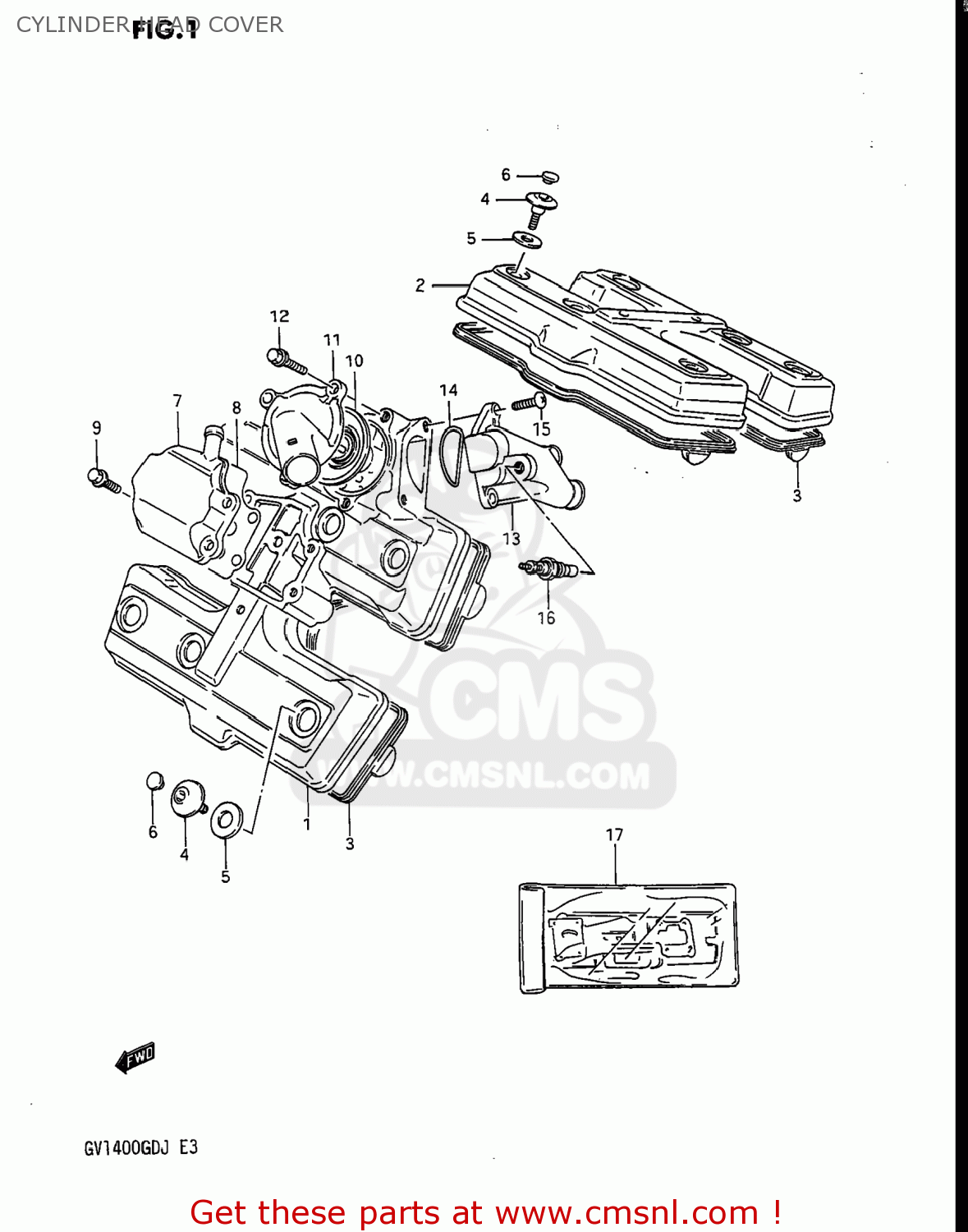

Cylinder head cover diagram GV1400GD CAVALCADE 1988 (J) USA (E03)

CYLINDER HEAD COVER GV1400GD CAVALCADE 1988 (J) USA (E03)

CYLINDER HEAD COVER GV1400GD CAVALCADE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117124A00
ref: 1

COVER,CYLINDER HEAD,FRONT

€ 139.50

2

1117224A00
ref: 2

COVER,CYLINDER HEAD,REAR

€ 129.00

3

1117305A00
ref: 3

GASKET,CYLINDER HEAD COVER (NAS)

€ 26.50

4

0910607001
ref: 4

BOLT(7X5.5)

€ 6.00

5

0916111006
ref: 5
09161-11008

WASHER

€ 4.50

6

0925006008
ref: 6

CAP(OD:10)

€ 3.00

7

1117805A00
ref: 7

GASKET

€ 19.00

8

1117905A00
ref: 8

GASKET,BREATHER COVER (NAS)

€ 7.50

9

0151706208
ref: 9
01550-06207

BOLT,REAR

€ 2.50

10

1767005A01
ref: 10

THERMOSTAT,WATER

€ 45.00

11

1766124A00
ref: 11

CAP,THERMOSTAT CASE

€ 58.00

12

0151706208
ref: 12
01550-06207

BOLT,REAR

€ 2.50

13

1766224A00
ref: 13

CONNECTOR,THERMOSTAT,INLET

€ 61.50

14

1766505A00
ref: 14

O-RING,THERMO CONNECTOR

€ 3.00

15

0211206208
ref: 15
02112-06207

SCREW

€ 2.00

16

3485005A10
ref: 16

GAUGE ASSY,WATER TEMP

€ 104.00

17

1140024840
ref: 17
11400-24844

GASKET SET (MCA)

€ 139.50
