CAM CHAIN

GZ125 1998 (W) (E01 E02 E04 E17 E22 E25 E34)

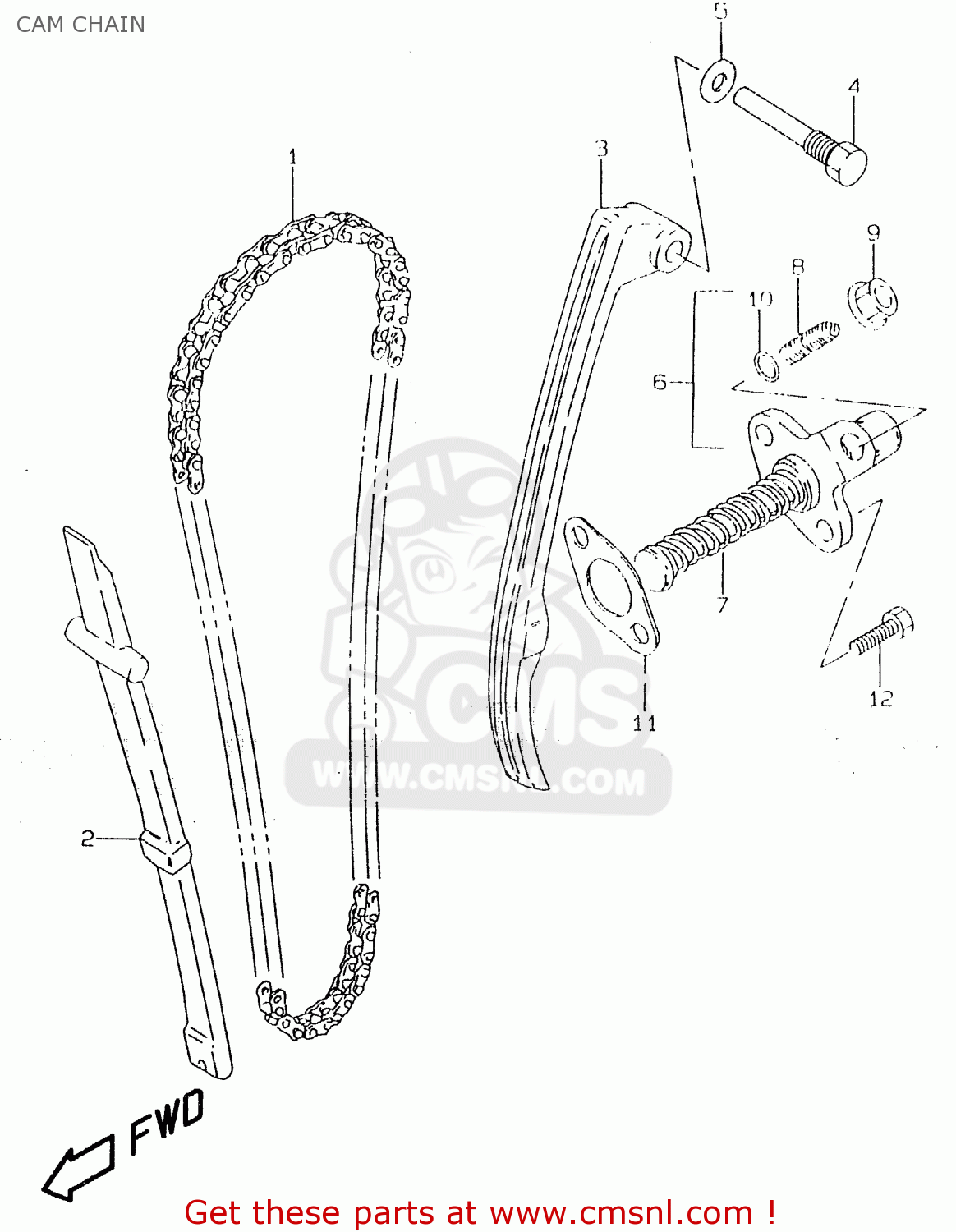

Cam chain diagram GZ125 1998 (W) (E01 E02 E04 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1276044A00
ref: 1
98LE

CHAIN,CAMSHAFT DRIVE

€ 54.00

1277105200
ref: 2

GUIDE,CAM CHAIN

€ 20.50

1281105220
ref: 3

TENSIONER,CAM CHAIN

€ 24.50

1281232400
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

1283032452
ref: 6

ADJUSTER ASSY,TENSIONER

€ 48.00

0944011018
ref: 7

SPRING

€ 2.00

1283845001
ref: 8

SCREW

€ 6.00

0831610083
ref: 9

NUT

€ 3.00

0928006005
ref: 10

O RING(D:1.9,ID:5.7)

€ 2.50

1283732410
ref: 11

GASKET,TENSIONER ADJUSTER (NAS)

€ 2.50

0150006203
ref: 12

BOLT

€ 2.00
