REAR COMBINATION LAMP

GZ125 1998 (W) (E01 E02 E04 E17 E22 E25 E34)

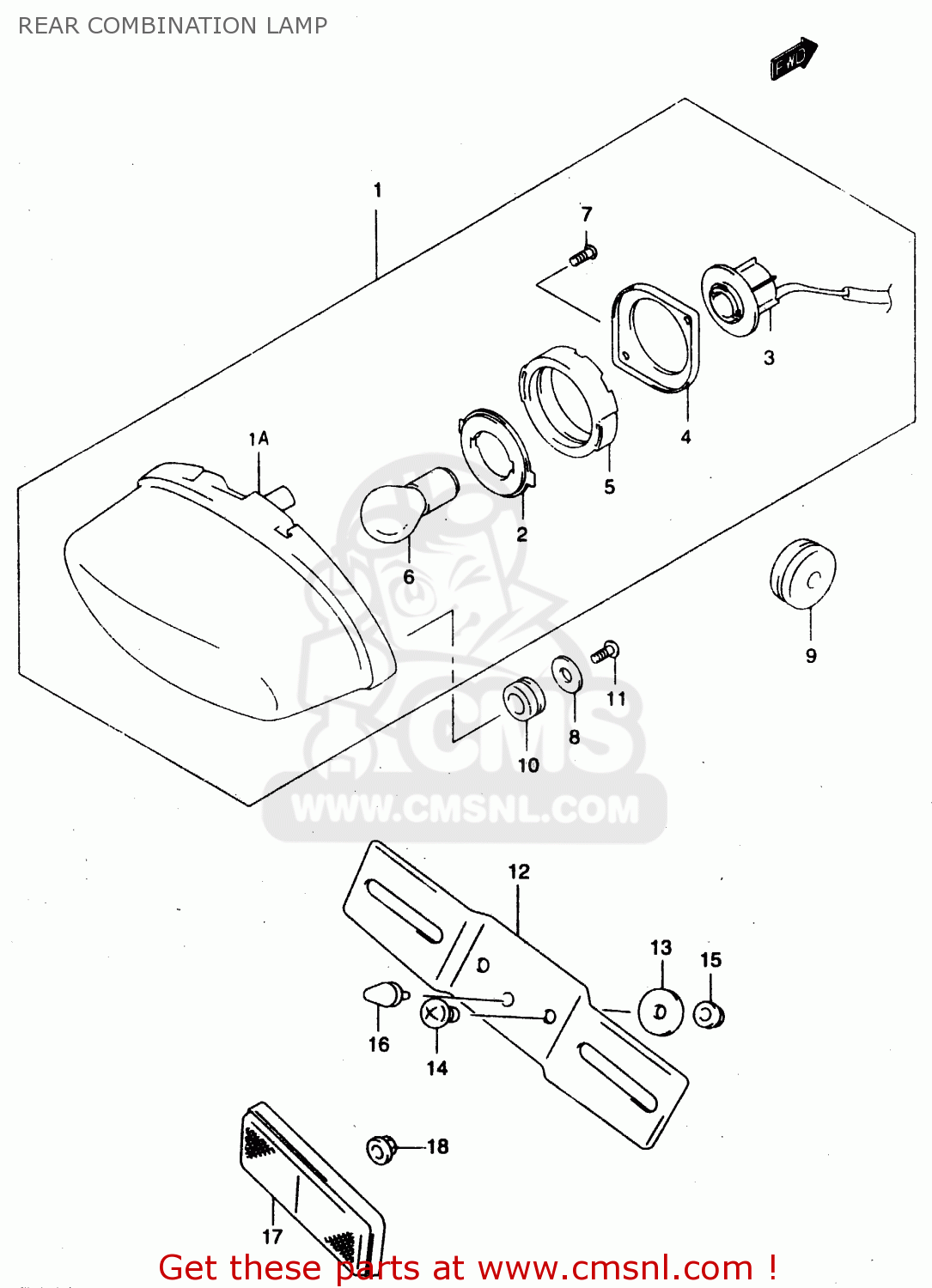

Rear combination lamp diagram GZ125 1998 (W) (E01 E02 E04 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

3571012F00
ref: 1

LAMP ASSY,RR COMBINATION

€ 278.00

3574042E11
ref: 1A

LAMP UNIT

€ 92.00

3571648B21
ref: 2

PLATE NO.1

€ 25.00

3571812F00
ref: 3

SOCKET & CORD

€ 55.50

3573648B21
ref: 4

PLATE NO.2

€ 16.50

3576542E00
ref: 5

CUSHION

€ 10.50

0947112083
ref: 6

BULB(12V21/5W)

€ 6.00

0321104123
ref: 7

SCREW

€ 1.50

0916005501
ref: 8
5.5X20X1.2

WASHER(5.5X20X1.2)

€ 2.00

0930808007
ref: 9

GROMMET

€ 2.00

0932010015
ref: 10

CUSHION

€ 2.50

0354105123
ref: 11

SCREW

€ 2.00

3592744110
ref: 12

PLATE,RR LICENSE

€ 22.50

0916006088
ref: 13
6.5X20X1.6

WASHER(6.5X20X1.6)

€ 2.00

0214206123
ref: 14

SCREW 6X12

€ 2.00

0831610063
ref: 15

NUT

€ 2.50

0932106028
ref: 16

CUSHION

€ 3.00

3597007F00
ref: 17

REFLECTOR ASSEMBLY,REAR

€ 20.50

0831610053
ref: 18

NUT

€ 2.50
