FRAME

GZ125 1998 (W) (E01 E02 E04 E17 E22 E25 E34)

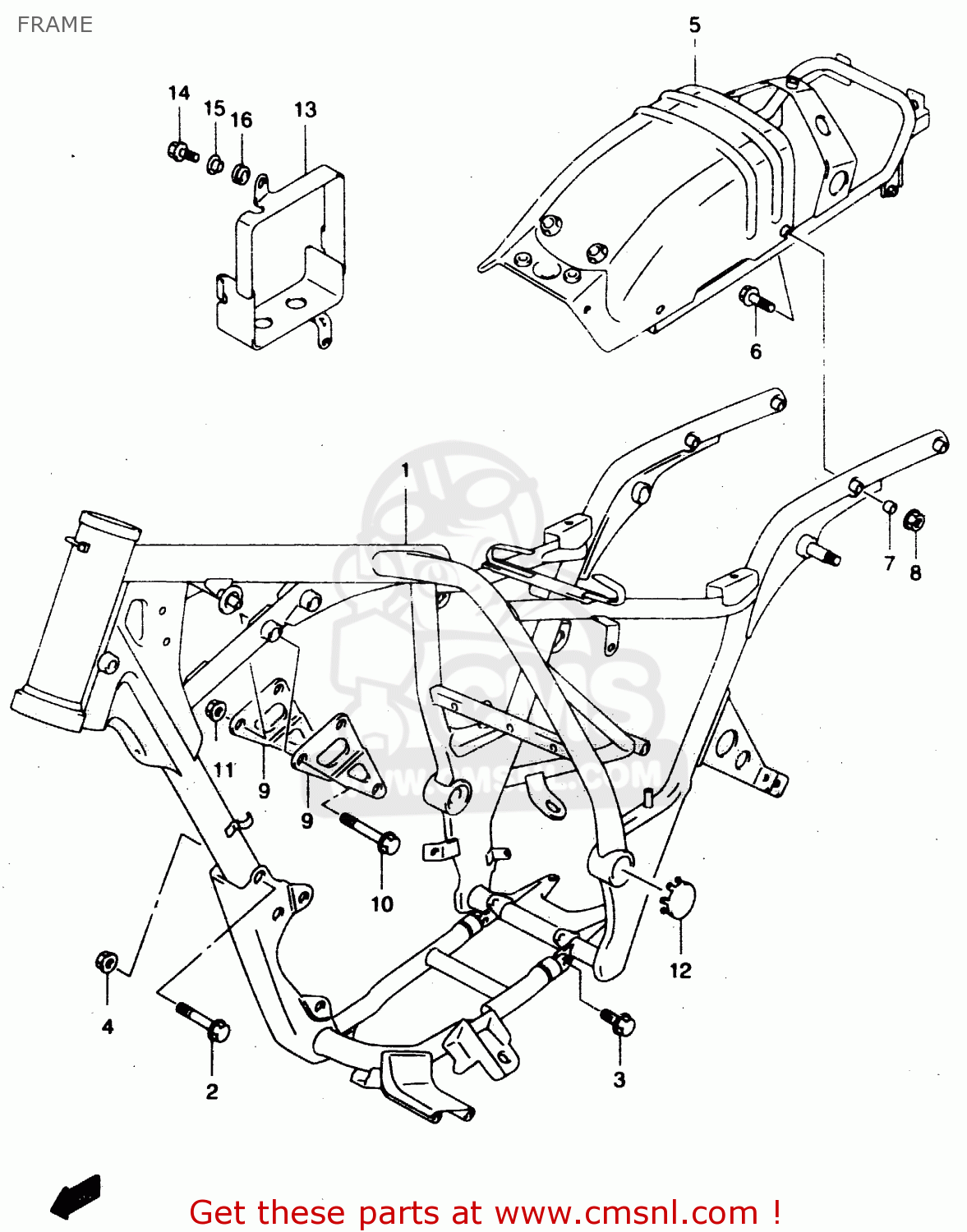

Frame diagram GZ125 1998 (W) (E01 E02 E04 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

4110012F01019
ref: 1

FRAME (BLACK)

€ 1,121.00

0155008603
ref: 2

BOLT

€ 3.50

0155008253
ref: 3

BOLT

€ 2.50

0831320087
ref: 4

NUT

€ 2.50

4158012F00
ref: 5

BRACE,RR FRAME

€ 115.50

0155008553
ref: 6

BOLT

€ 3.00

0918008208
ref: 7

SPACER(8.5X16X10)

€ 7.50

0831610083
ref: 8

NUT

€ 3.00

4199112F00
ref: 9

PLATE,ENG MTG UPR

€ 5.00

0910308289
ref: 10

BOLT(8X50)

€ 5.00

0831931087
ref: 11

NUT

€ 2.50

6122238A01
ref: 12

CAP,RR SWINGING ARM PIVOT,R

€ 6.50

4154012F00
ref: 13

HOLDER,BATTERY

€ 24.50

0155006163
ref: 14

BOLT

€ 2.50

0916906065
ref: 15

WASHER

€ 3.50

0932008021
ref: 16

CUSHION

€ 4.00
