FOOTREST

GZ125 1998 (W) (E01 E02 E04 E17 E22 E25 E34)

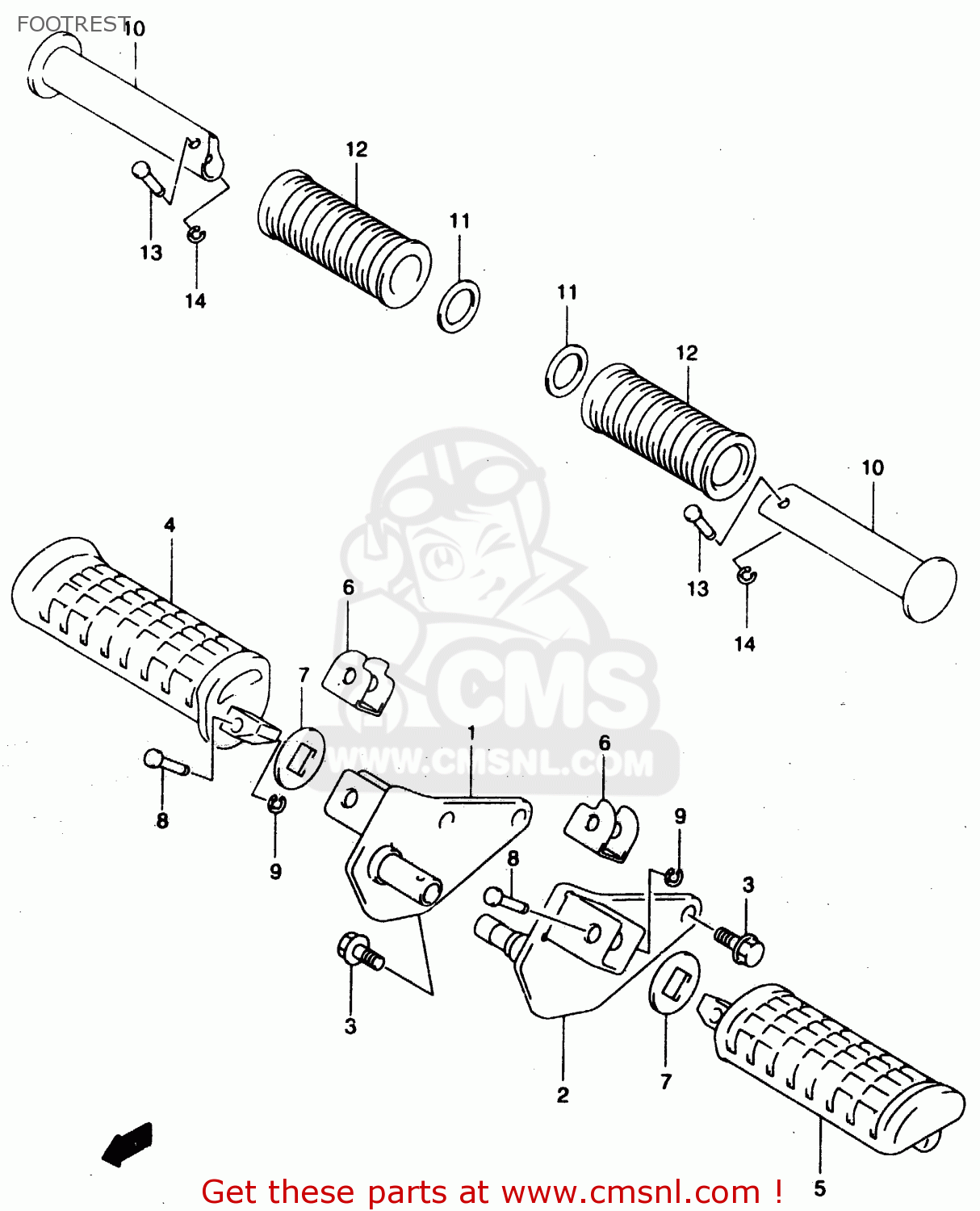

Footrest diagram GZ125 1998 (W) (E01 E02 E04 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

4351012F00
ref: 1

BRACKET,FR FOOTREST,R

€ 64.00

4352012F00
ref: 2

BRACKET,FR FOOTREST,L

€ 85.50

0155008207
ref: 3

BOLT

€ 3.00

4355004F00
ref: 4

RUBBER,FRONT FOOTREST,RIGHT

€ 14.00

4356004F00
ref: 5

RUBBER,FRONT FOOTREST,LEFT

€ 23.50

4357004F00
ref: 6

CUSHION,FR FOOTREST

€ 17.00

4363134A01
ref: 7

WASHER,FOOTREST RUBBER

€ 6.50

0920806005
ref: 8

PIN

€ 3.00

0833211043
ref: 9

E-RING

€ 2.00

4361038300
ref: 10

BAR,PILLION FOOTREST

€ 21.50

0916019024
ref: 11

WASHER(19.5X32X2)

€ 2.00

4361233200
ref: 12

RUBBER,PILLION FOOTREST

€ 4.50

4363625D00
ref: 13

PIN,PILLION FOOTREST

€ 5.50

0833211043
ref: 14

E-RING

€ 2.00
