CYLINDER

JR50 1982 (Z) USA (E03)

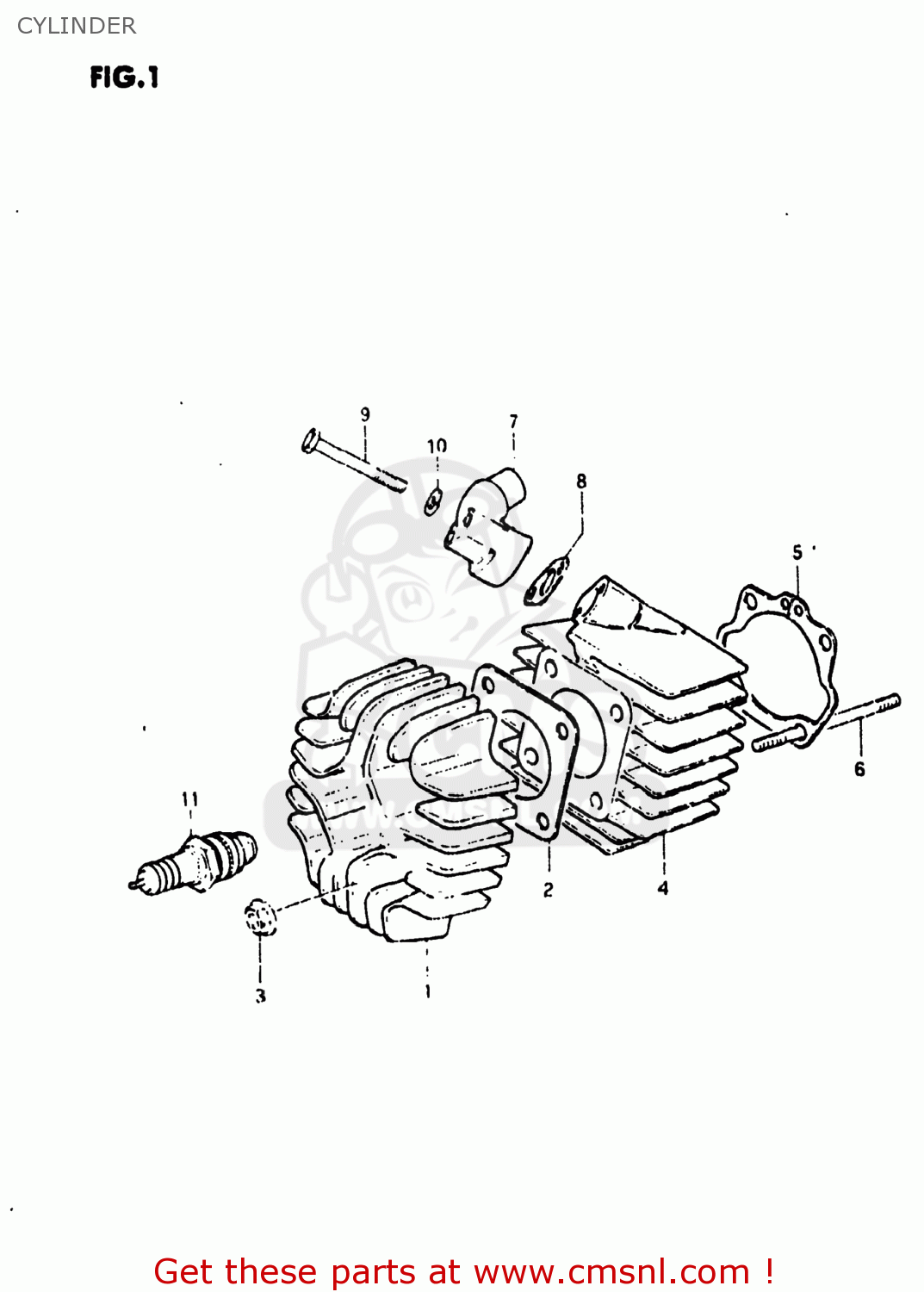

Cylinder diagram JR50 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1111104001
ref: 1

HEAD,CYLINDER

€ 47.00

1114104000
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 4.50

0831616068
ref: 3
08319-31067

NUT

€ 2.50

1121104001
ref: 4
11211-04002-0F0

CYLINDER

€ 116.50

1124104000
ref: 5
11241-04010

GASKET,CYLINDER (MCA)

€ 4.00

0142106908
ref: 6
09108-06108

STUD BOLT

€ 4.50

1311104001
ref: 7

PIPE,INTAKE

€ 12.50

1312104000
ref: 8
13121-04000-H17

GASKET (NAS)

€ 4.00

0110706458
ref: 9
01500-0645B

BOLT

€ 2.00

0832121068
ref: 10
08321-01067

LOCK WASHER

€ 2.50

11-1

0948200137
ref: 11-1
09482-00290

SPARK PLUG

€ 7.50

11-2

0948200138
ref: 11-2
09482-00186

SPARK PLUG W14FP

€ 2.50
