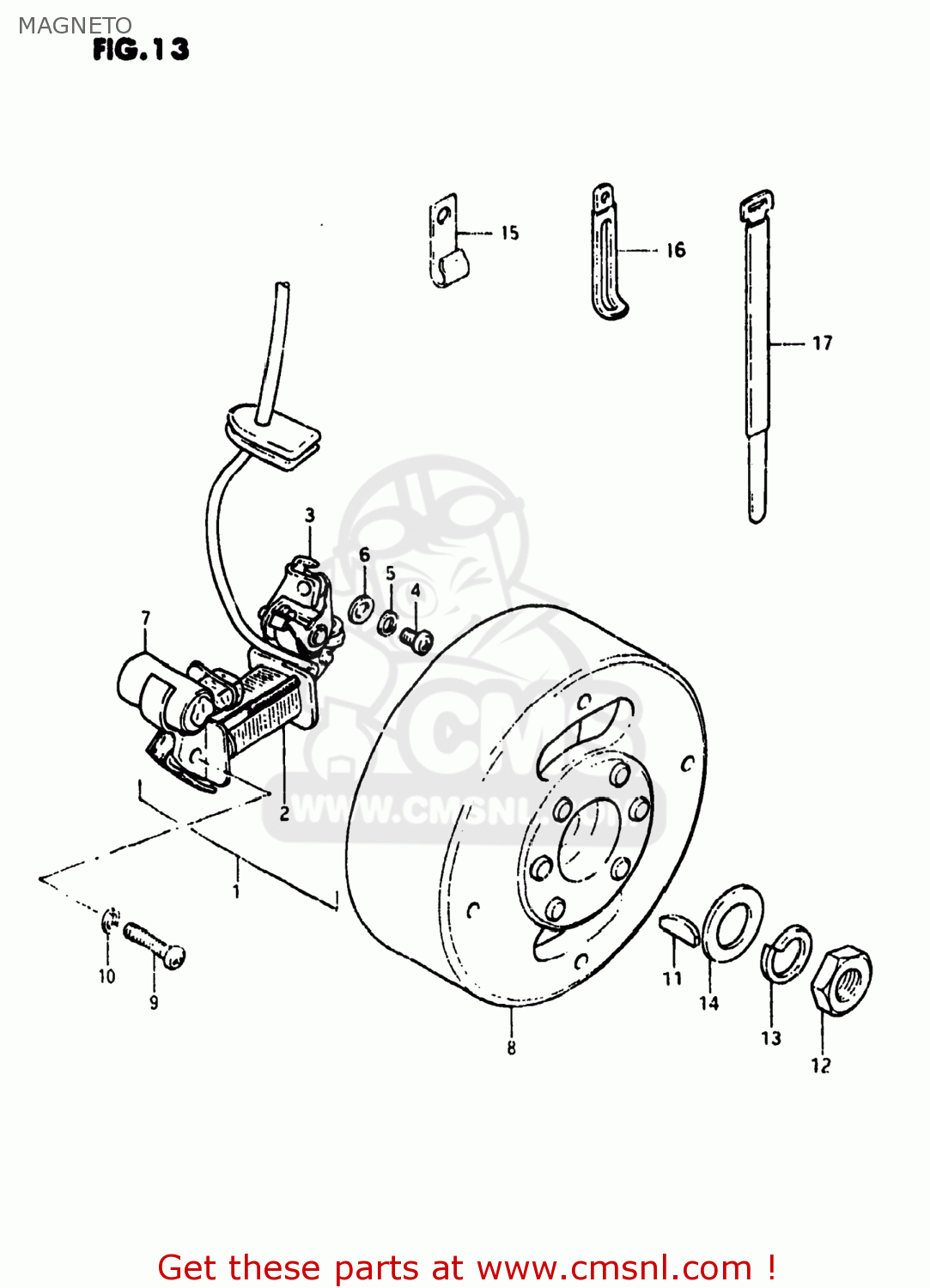

MAGNETO

ref

part #

description

quantity

1

3210104420
ref: 1

STATOR ASSEMBLY

€ 54.50

2

3214004020
ref: 2

COIL ASSY,IGNITION PRIMARY

€ 46.00

3

3224004420
ref: 3

POINT ASSY,CONTACT

€ 17.00

4

0912504001
ref: 4

SCREW(4X10)

€ 4.50

5

0832121048
ref: 5
08321-0104A

LOCK WASHER

€ 2.00

6

0832221048
ref: 6
08322-01047

WASHER

€ 2.00

7

3234104020
ref: 7

CONDENSER,MAGNETO

€ 20.00

8

3210204020
ref: 8

ROTOR ASSEMBLY

€ 70.50

9

0211204258
ref: 9
02112-0425B

SCREW 4X25

€ 2.00

10

0832121048
ref: 10
08321-0104A

LOCK WASHER

€ 2.00

11

0834131039
ref: 11

KEY

€ 2.00

12

0914010003
ref: 12
09140-10041

NUT (10MM)

€ 3.50

13

0832121108
ref: 13
08321-01107

LOCK WASHER

€ 2.00

14

0832221108
ref: 14
08322-01107

WASHER

€ 2.50

15

0940305303
ref: 15

CLAMP

€ 2.00

16

0940406401
ref: 16
09404-06432

CLAMP L:35

€ 2.50

17

0940718301
ref: 17

CLAMP

€ 6.00
