ELECTRICAL

JR50 1982 (Z) USA (E03)

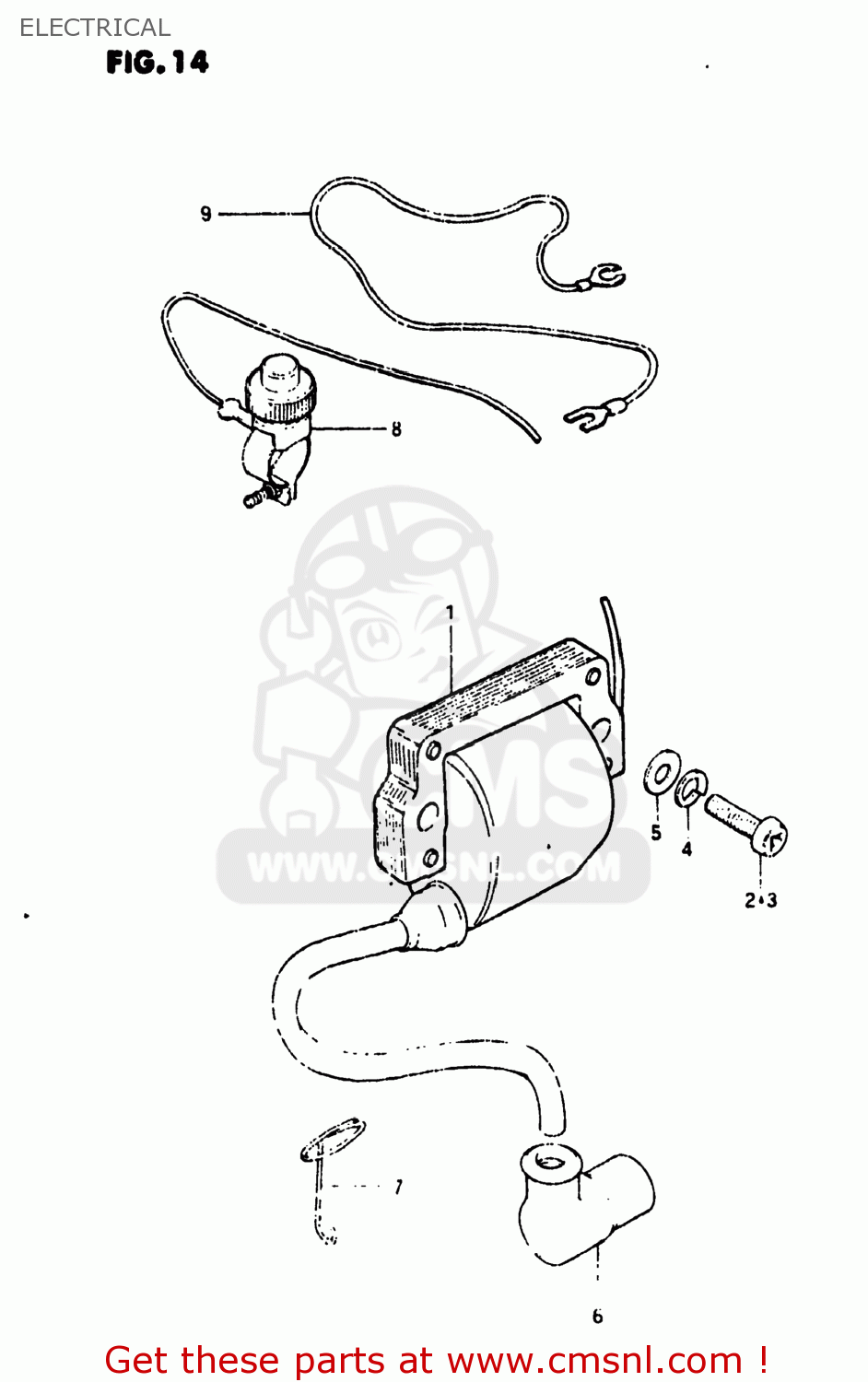

Electrical diagram JR50 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

3341043020
ref: 1
33410-43011

COIL ASSEMBLY,IGNITION

€ 89.50

0211206258
ref: 2
02112-06257

SCREW

€ 2.00

0211206208
ref: 3
02112-06207

SCREW

€ 2.00

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

0832221068
ref: 5
08322-01067

WASHER

€ 2.00

3351041111
ref: 6
33510-20A02

CAP,SPARK PLUG

€ 23.00

3494930002
ref: 7

CLIP

€ 15.50

3782004430
ref: 8
37820-14X50

SWITCH ASSEMBLY

€ 24.50

3685104410
ref: 9
36851-41200

WIRE

€ 6.00
