REAR BRAKE
JR50 1982 (Z) USA (E03)

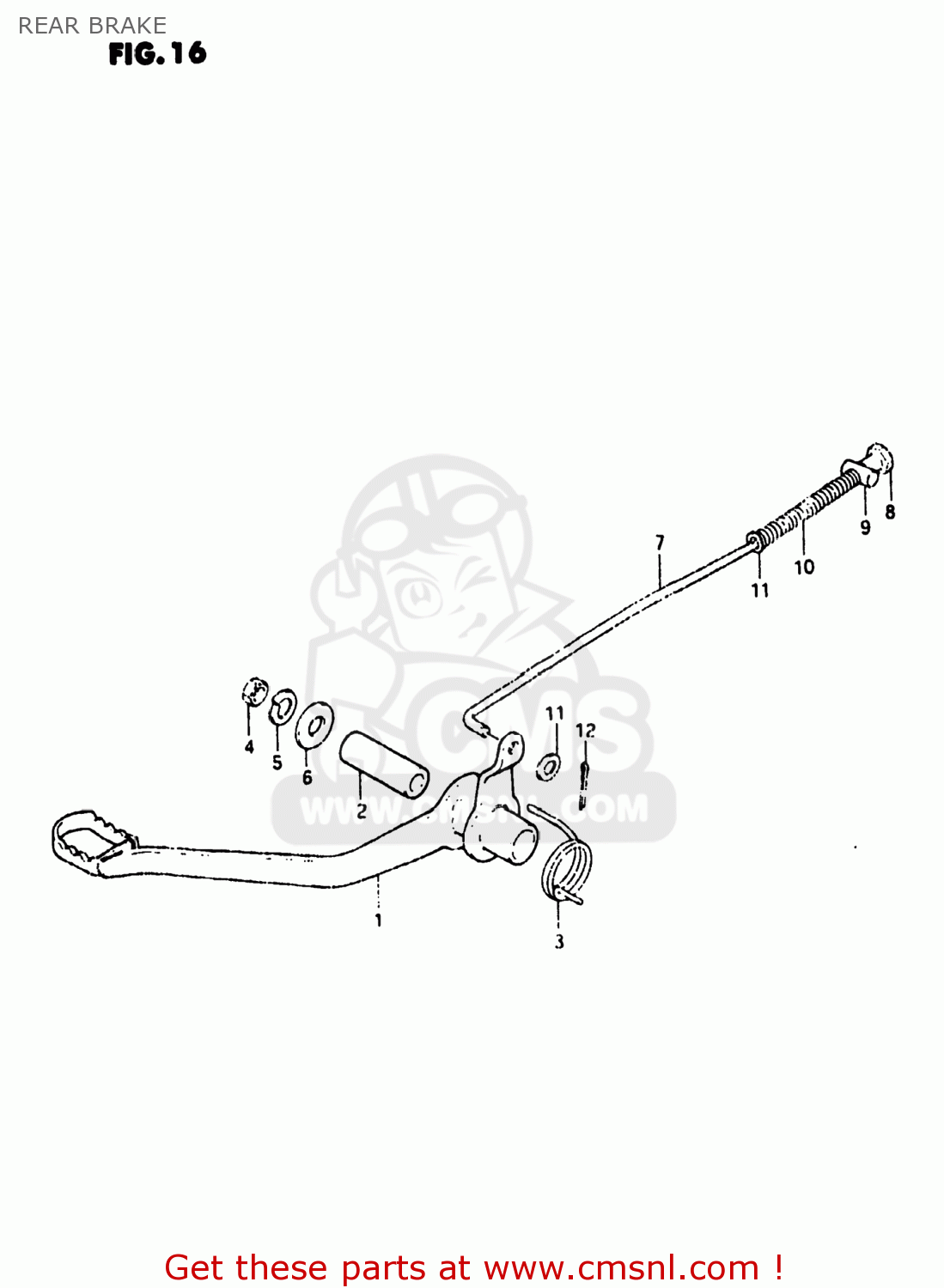

Rear brake diagram JR50 1982 (Z) USA (E03)
REAR BRAKE JR50 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311004410
ref: 1
PEDAL,BRAKE
€ 12.00
2
4318104410
ref: 2
43181-04411
SPACER,BRAKE PEDAL
€ 3.50
3
4318204410
ref: 3
SPRING,BRAKE PEDAL RETURN
€ 6.50
4
0831011108
ref: 4
08310-00107
NUT
€ 2.50
5
0832121108
ref: 5
08321-01107
LOCK WASHER
€ 2.00
6
0832221108
ref: 6
08322-01107
WASHER
€ 2.50
7
4330004410
ref: 7
ROD ASSY,RR BRAKE
€ 6.00
8
0915005101
ref: 8
NUT
€ 3.00
9
0920910001
ref: 9
PIN,10X19
€ 2.00
10
0944009004
ref: 10
SPRING
€ 2.00
11
0832221058
ref: 11
08322-01057
WASHER
€ 2.50
12
0411120208
ref: 12
04111-2020A
PIN 20X20
€ 1.50
