CRANKCASE
JR50 1996 (T) USA CANADA (E03 E28)

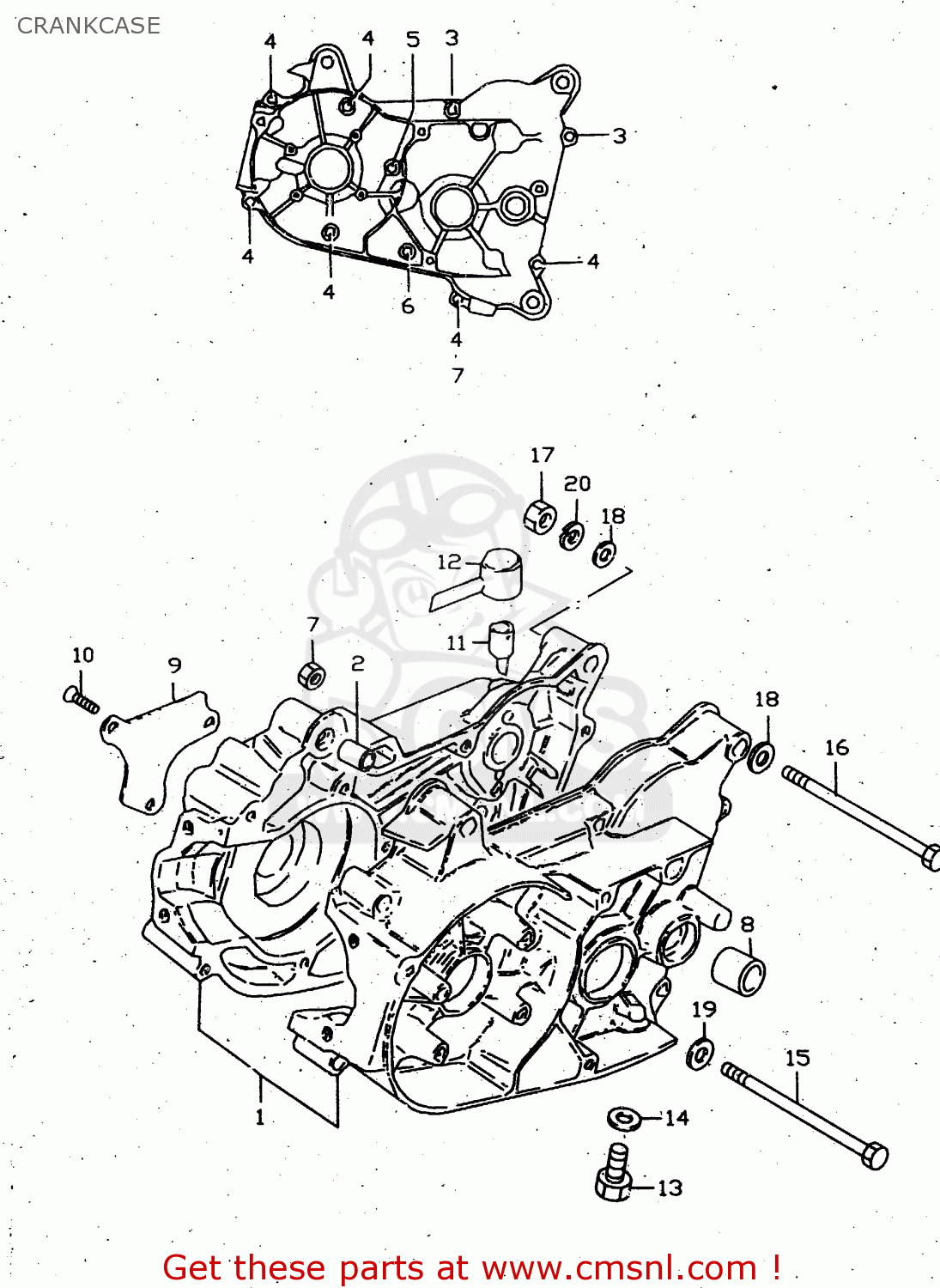

Crankcase diagram JR50 1996 (T) USA CANADA (E03 E28)
CRANKCASE JR50 1996 (T) USA CANADA (E03 E28)
×
prices are in EUR
ref
part #
description
quantity
1
1130004841
ref: 1
MODEL T/V
CRANKCASE SET
€ 291.00
1
1130004842
ref: 1
MODEL W/X
CRANKCASE SET
€ 291.00
2
0421111129
ref: 2
PIN
€ 2.00
3
0211206303
ref: 3
SCREW 6X30
€ 2.50
4
0211206353
ref: 4
SCREW
€ 2.50
5
0211206403
ref: 5
SCREW
€ 2.00
6
0211206553
ref: 6
SCREW
€ 2.00
7
0831000063
ref: 7
NUT 6MM
€ 2.00
8
0930410005
ref: 8
BUSH
€ 6.00
9
1252104000
ref: 9
PLATE,OIL RESERVOIR
€ 6.50
10
0212204103
ref: 10
SCREW,UPPER
€ 2.50
11
2482109001
ref: 11
PLUG,T/M BREATHER
€ 5.50
12
2482220000
ref: 12
GASKET (NAS)
€ 16.00
13
0924710001
ref: 13
PLUG
€ 3.00
14
0916810002
ref: 14
GASKET(10X14X3.6) (NAS)
€ 2.00
15
0150008903
ref: 15
BOLT
€ 3.50
16
0150008703
ref: 16
BOLT
€ 2.50
17
0831000033
ref: 17
NUT
€ 2.00
18
0832201083
ref: 18
WASHER
€ 1.50
19
0916008080
ref: 19
MODEL T/V
WASHER (8.2X22X3.2)
€ 2.50
19
0916008128
ref: 19
MODEL W/X
WASHER(8.5X22X3.2)
€ 2.50
20
0832101083
ref: 20
LOCK WASHER
€ 2.50
