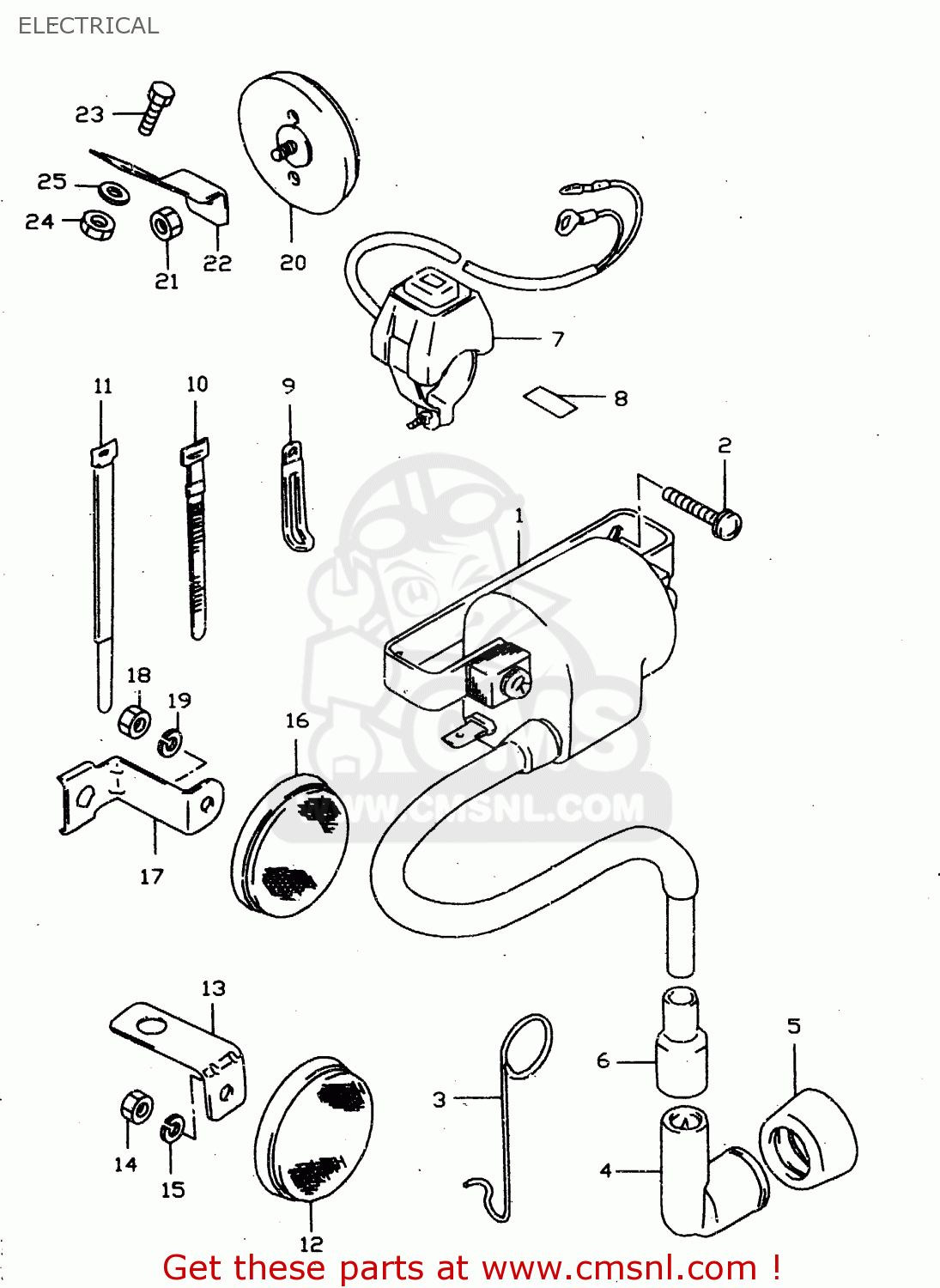

ELECTRICAL

ref

part #

description

quantity

1

3341035340
ref: 1

UNIT & COIL ASSY,IGNITION

€ 190.50

2

0211206207
ref: 2

SCREW

€ 2.00

3

5862604410
ref: 3

CLIP

€ 0.00

4

3351035411
ref: 4

CAP ASSY,SPARK PLUG

€ 20.00

5

3354169010
ref: 5

SEAL,SPARK PLUG

€ 5.00

6

3354238B00
ref: 6

SEAL,HIGH TENSION CORD

€ 4.50

7

3782014X50
ref: 7

SWITCH ASSY,ENGINE STOP

€ 24.50

8

3723846400
ref: 8
MODEL T/V/W E3

LABEL (ENGINE STOP)

€ 0.00

8

3723846401
ref: 8
MODEL X E3

LABEL,ENGINE STEP SWITCH

€ 0.00

8

3723846410
ref: 8
MODEL T/V/W E28

LABEL (ENGINE STOP)

€ 0.00

8

3723846411
ref: 8
MODEL X E28

LABEL,ENGINE STEP SWITCH

€ 0.00

9

0940406429
ref: 9

CLAMP(L:45)

€ 2.50

10

0940712402
ref: 10

CLAMP(L:120)

€ 3.00

11

0940718301
ref: 11

CLAMP

€ 6.00

12

3595045010
ref: 12
E28

REFLEX REFLECTOR,FR

€ 17.00

13

3597504410
ref: 13
E28

BRACKET, FR SIDE RR

€ 0.00

14

0831000053
ref: 14
E28

NUT

€ 2.50

15

0832101053
ref: 15
E28

LOCK,WASHER

€ 3.00

16

3597030910
ref: 16
E28

REFLEX REFLECTOR,RR

€ 47.50

17

3597604410
ref: 17
E28

BRACKET, NEAR SIDE RR

€ 4.50

18

0831000053
ref: 18
E28

NUT

€ 2.50

19

0832101053
ref: 19
E28

LOCK,WASHER

€ 3.00

20

3597030910
ref: 20
E28

REFLEX REFLECTOR,RR

€ 47.50

21

0831000053
ref: 21
E28

NUT

€ 2.50

22

3597404410
ref: 22
E28

BRACKET, NEAR RR

€ 0.00

23

0150006123
ref: 23
E28

BOLT

€ 2.00

24

0831000063
ref: 24
E28

NUT 6MM

€ 2.00

25

0832201063
ref: 25
E28

WASHER

€ 2.00

all assemblies
