CYLINDER
JR50 1996 (T) USA CANADA (E03 E28)

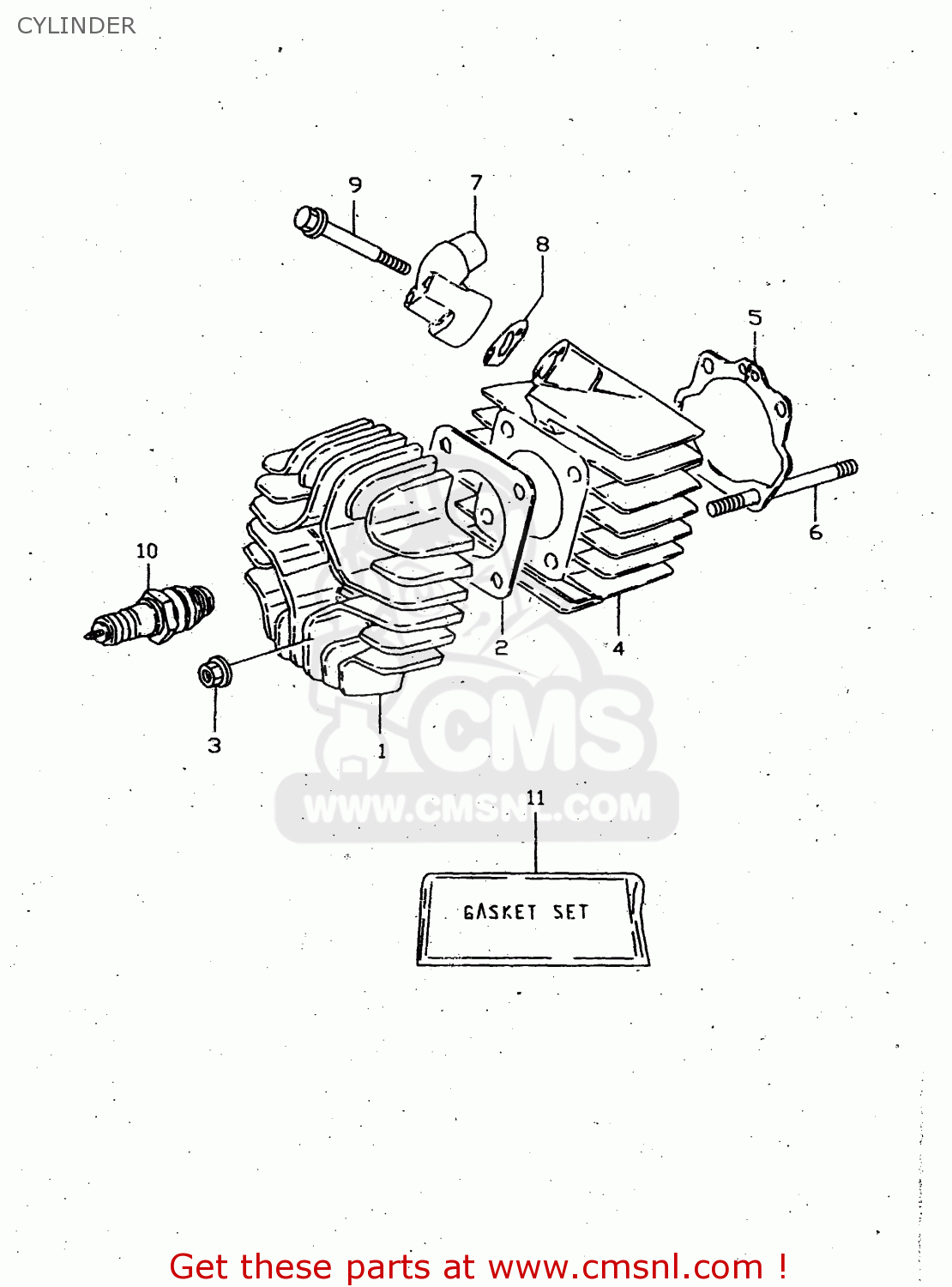

Cylinder diagram JR50 1996 (T) USA CANADA (E03 E28)
CYLINDER JR50 1996 (T) USA CANADA (E03 E28)
×
prices are in EUR
ref
part #
description
quantity
1
1111104001
ref: 1
HEAD,CYLINDER
€ 47.00
2
1114104000
ref: 2
GASKET,CYLINDER HEAD (NAS)
€ 4.50
3
0831610063
ref: 3
NUT
€ 2.50
4
11211040010F0
ref: 4
CYLINDER
€ 116.50
5
1124104010
ref: 5
GASKET,CYLINDER (NAS)
€ 4.00
6
0910806108
ref: 6
BOLT,STUD
€ 4.50
7
1311104001
ref: 7
PIPE,INTAKE
€ 12.50
8
1312104000H17
ref: 8
GASKET,INTAKE PIPE (NAS)
€ 4.00
9
0157006453
ref: 9
BOLT
€ 2.00
10
0948200205
ref: 10
PLUG,SPARK(BPR4HS NGK)
€ 4.50
10
0948200206
ref: 10
SPARK PLUG W14FPR-UL
€ 4.50
11
1140104811
ref: 11
GASKET SET (NAS)
€ 28.50
