JR50 1996 (T) USA CANADA (E03 E28)

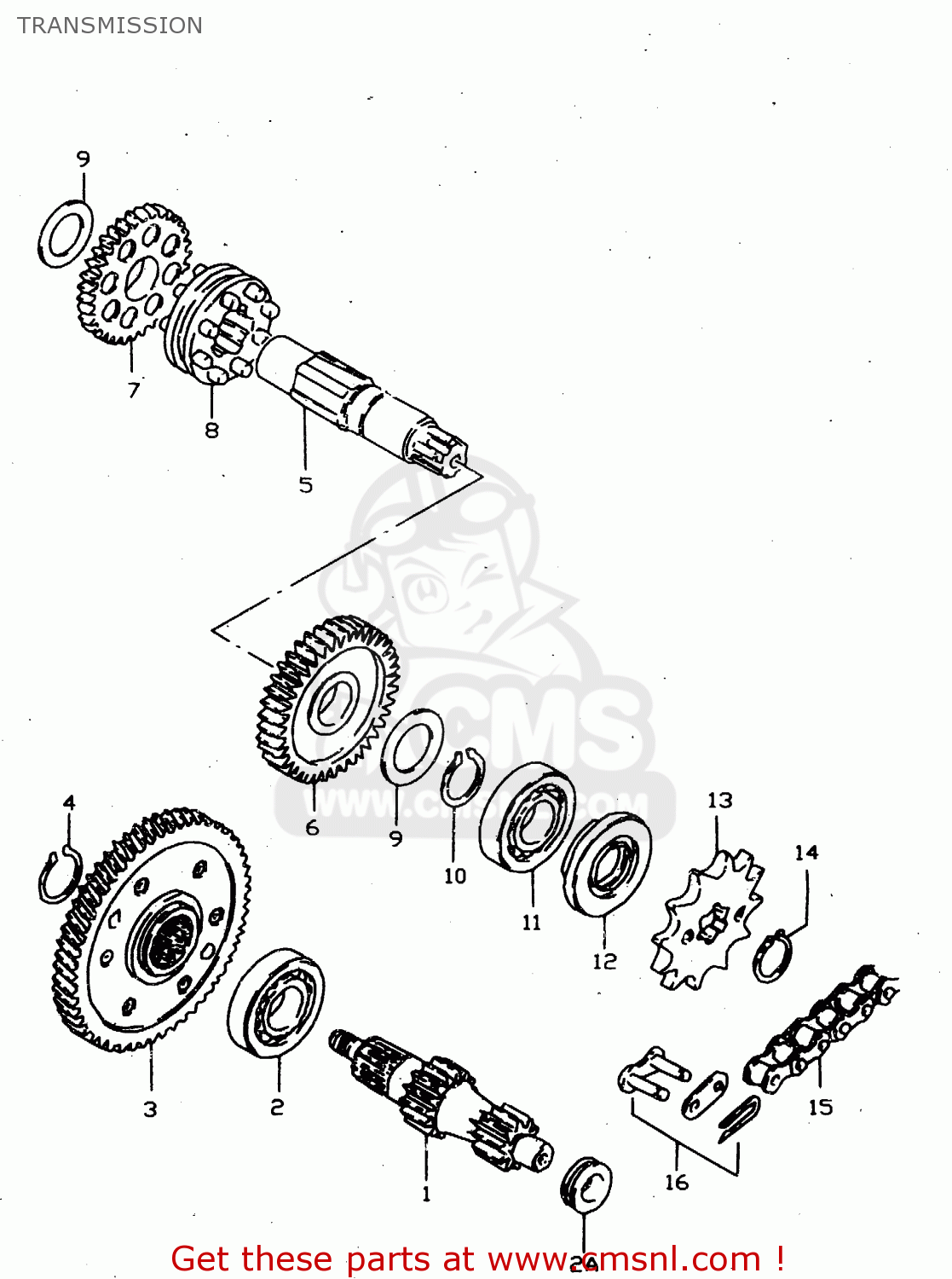

Transmission diagram JR50 1996 (T) USA CANADA (E03 E28)
TRANSMISSION JR50 1996 (T) USA CANADA (E03 E28)
×
prices are in EUR
ref
part #
description
quantity
1
2412104010
ref: 1
MODEL T/V
SHAFT,COUNTER
€ 89.00
1
2412104011
ref: 1
MODEL W/X
SHAFT,COUNTER
€ 89.00
2
0926217023
ref: 2
BEARING(17X40X12)
€ 14.00
2A
0930410005
ref: 2A
BUSH
€ 6.00
3
2120004501
ref: 3
GEAR ASSY,PRI DRIVEN
€ 103.00
4
0938017003
ref: 4
CIRCLIP
€ 3.00
5
2413104001
ref: 5
SHAFT,DRIVE
€ 81.50
6
2431104001
ref: 6
MODEL T/V/W
GEAR,FIRST DRIVEN
€ 51.50
6
2431104002
ref: 6
MODEL X
GEAR 1ST DRIVEN
€ 51.50
7
2432104010
ref: 7
MODEL T/V/W
GEAR,SECOND DRIVEN
€ 55.50
7
2432104011
ref: 7
MODEL X
GEAR 2ND DRIVEN
€ 55.50
8
2441104003
ref: 8
WHEEL,1ST GEAR
€ 39.50
9
0821117301
ref: 9
MODEL T/V/W
WASHER,THRUST
€ 3.00
9
0918117223
ref: 9
MODEL X
SHIM(17X30X1)
€ 3.00
10
0938017003
ref: 10
CIRCLIP
€ 3.00
11
0926217023
ref: 11
BEARING(17X40X12)
€ 14.00
12
0928317010
ref: 12
OIL SEAL (17X29X7)
€ 9.50
13
2751119000
ref: 13
SPROCKET,ENGINE
€ 14.00
14
0833131166
ref: 14
CIRCLIP 16MM
€ 2.00
15
2760001011078
ref: 15
CHAIN,DRIVE
€ 16.00
16
2762001012
ref: 16
JOINT
€ 5.00
