FRAME - FOOTREST
JR50 1998 (W) USA (E03)

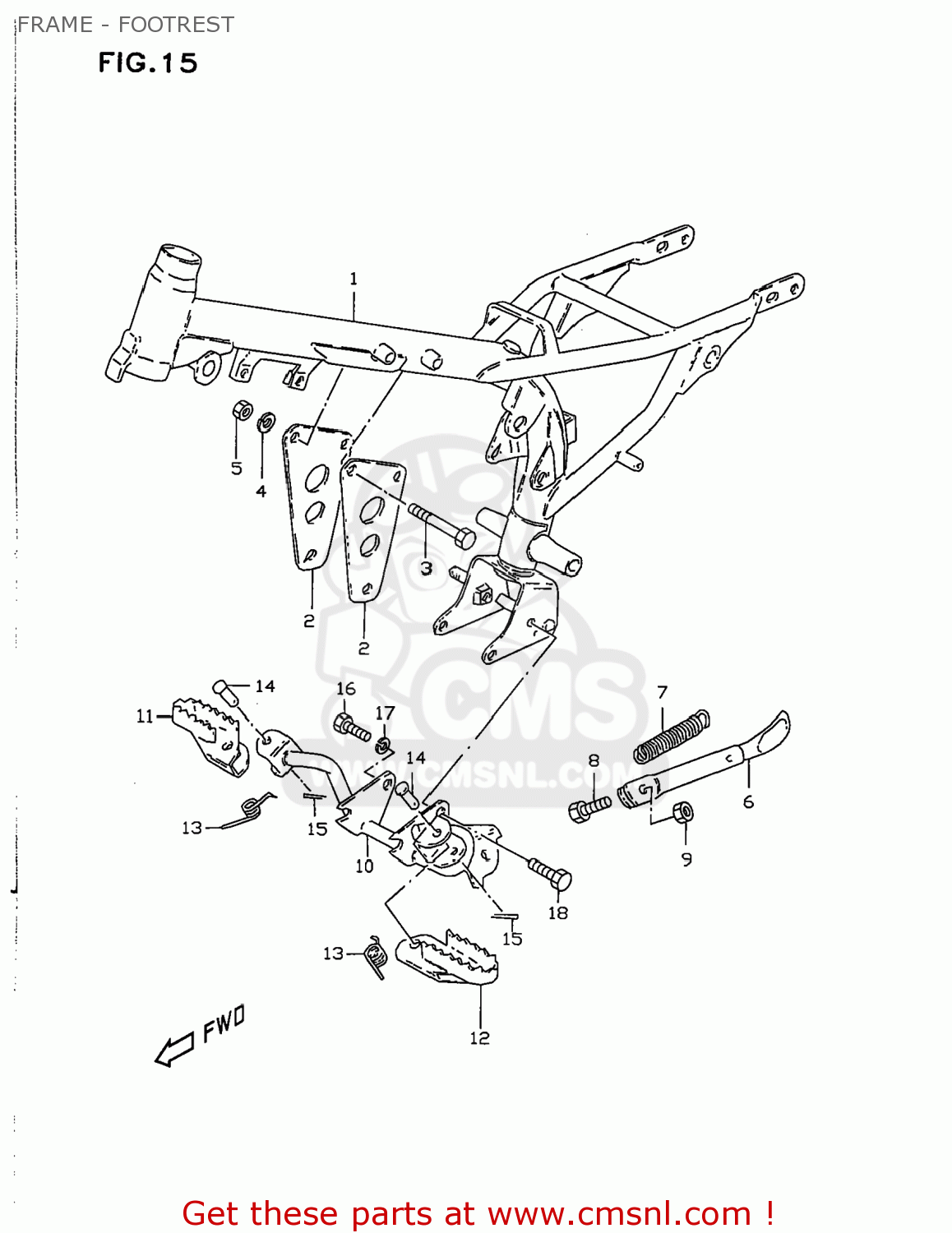

Frame - footrest diagram JR50 1998 (W) USA (E03)
FRAME - FOOTREST JR50 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110004431019
ref: 1
FRAME (BLACK)
€ 0.00
2
4199104410
ref: 2
PLATE,ENG MTG
€ 0.00
3
0150008703
ref: 3
01500-0870B
BOLT
€ 2.50
4
0832101083
ref: 4
08321-0108A
LOCK WASHER
€ 2.50
5
0831000083
ref: 5
08310-0008A
NUT
€ 1.50
6
4230004420019
ref: 6
STAND,PROP
€ 93.50
7
0944314017
ref: 7
SPRING
€ 6.50
8
0910008145
ref: 8
09100-08274
BOLT 8X22
€ 3.00
9
0831000083
ref: 9
08310-0008A
NUT
€ 1.50
10
4351004411
ref: 10
BAR,FR FOOTREST
€ 22.50
11
4355046000019
ref: 11
FOOTREST,FR,R
€ 9.00
12
4356046000019
ref: 12
FOOTREST,FR,L
€ 9.00
13
0944814012
ref: 13
SPRING
€ 3.00
14
0920008002
ref: 14
PIN
€ 2.00
15
0411120158
ref: 15
04111-2015A
PIN
€ 1.50
16
0150008163
ref: 16
01500-0816B
BOLT
€ 2.00
17
0832101083
ref: 17
08321-0108A
LOCK WASHER
€ 2.50
18
0910008143
ref: 18
BOLT(8X14)
€ 2.50
