FUEL TANK (MODEL T/V)
JR50 1998 (W) USA (E03)

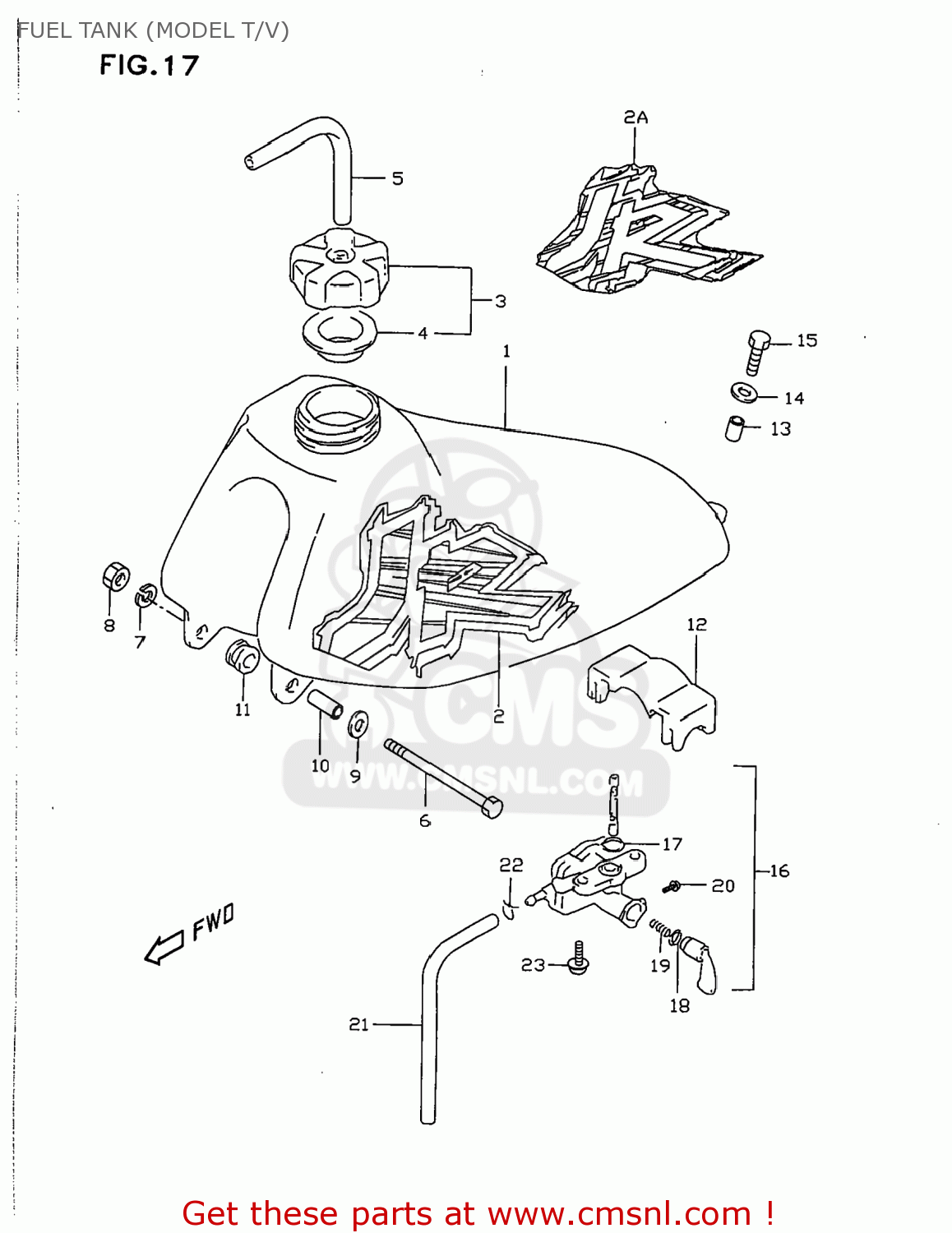

Fuel tank (model t/v) diagram JR50 1998 (W) USA (E03)
FUEL TANK (MODEL T/V) JR50 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
441100442025Y
ref: 1
TANK,FUEL
€ 151.50
2
6812009A00E9Z
ref: 2
EMBLEM SET,FUEL TANK
€ 0.00
2A
6812009A10G1Y
ref: 2A
EMBLEM SET,FRAME TANK
€ 0.00
3
4420040811
ref: 3
44200-40821
CAP,FUEL TANK FILLER
€ 20.00
4
4424805210
ref: 4
GASKET (NAS)
€ 4.50
5
0935250823600
ref: 5
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
6
0150006903
ref: 6
01500-0690B
BOLT, FRONT
€ 2.50
7
0832101063
ref: 7
08321-0106A
LOCK WASHER
€ 2.00
8
0831000063
ref: 8
08310-0006A
NUT 6MM
€ 2.00
9
0916006028
ref: 9
WASHER(6.5X18X1)
€ 1.50
10
0918006112
ref: 10
09180-06289
SPACER (6.8X10X11.5)
€ 2.50
11
0932010008
ref: 11
CUSHION
€ 2.50
12
4454204420
ref: 12
CUSHION,FUEL TANK UPR
€ 5.50
13
0918006260
ref: 13
SPACER(6.5X9X7.2)
€ 3.50
14
0916006028
ref: 14
WASHER(6.5X18X1)
€ 1.50
15
0150006163
ref: 15
01500-0616A
BOLT
€ 2.00
16
4430004420
ref: 16
COCK ASSY,FUEL
€ 21.00
17
4434841370
ref: 17
O RING
€ 1.50
18
4435341370
ref: 18
O RING,LEVER
€ 4.00
19
4435741370
ref: 19
44357-32470
SPRING,FUEL COCK VALUE
€ 2.00
20
4434341370
ref: 20
SCREW
€ 2.00
21
0935250823600
ref: 21
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
22
0940108401
ref: 22
CLIP
€ 1.50
23
0211236163
ref: 23
02112-3616A
SCREW
€ 2.50
