REAR SWINGING ARM
JR50 1998 (W) USA (E03)

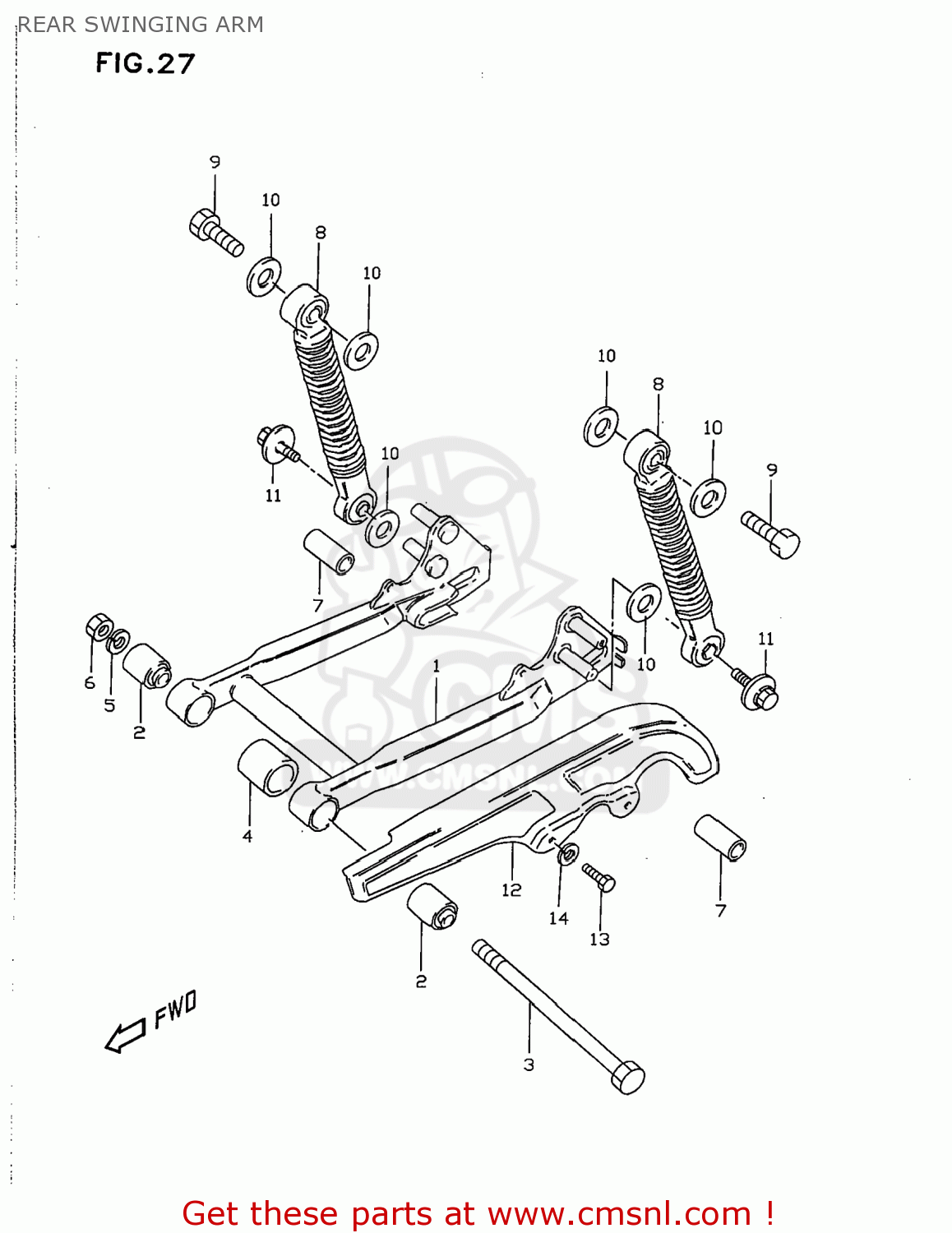

Rear swinging arm diagram JR50 1998 (W) USA (E03)
REAR SWINGING ARM JR50 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
610000442013L
ref: 1
SWINGINGARM ASSY,RR
€ 68.50
1
610000442013L
ref: 1
SWINGINGARM ASSY,RR
€ 68.50
2
0931910014
ref: 2
BUSH
€ 11.50
3
6121104410
ref: 3
SHAFT,RR SWINGINGARM PIVOT
€ 6.50
4
0932020002
ref: 4
CUSHION
€ 5.00
5
0916010119
ref: 5
09160-10143
WASHER(10.5X22X1.6)
€ 2.00
6
0831000103
ref: 6
08310-0010A
NUT
€ 2.00
7
6122304420
ref: 7
CAP,RR SHOCK ABSORBER BOSS
€ 42.50
8
6210004410
ref: 8
ABSORBER ASSY,RR SHOCK
€ 178.00
9
0110710358
ref: 9
01500-1035B
BOLT,M10X1.25X
€ 2.50
10
0916010119
ref: 10
09160-10143
WASHER(10.5X22X1.6)
€ 2.00
11
0911806055
ref: 11
BOLT(6X12)
€ 2.50
12
6131004410
ref: 12
CASE,CHAIN
€ 25.00
13
0150006123
ref: 13
01500-0612A
BOLT
€ 2.00
14
0832101063
ref: 14
08321-0106A
LOCK WASHER
€ 2.00
