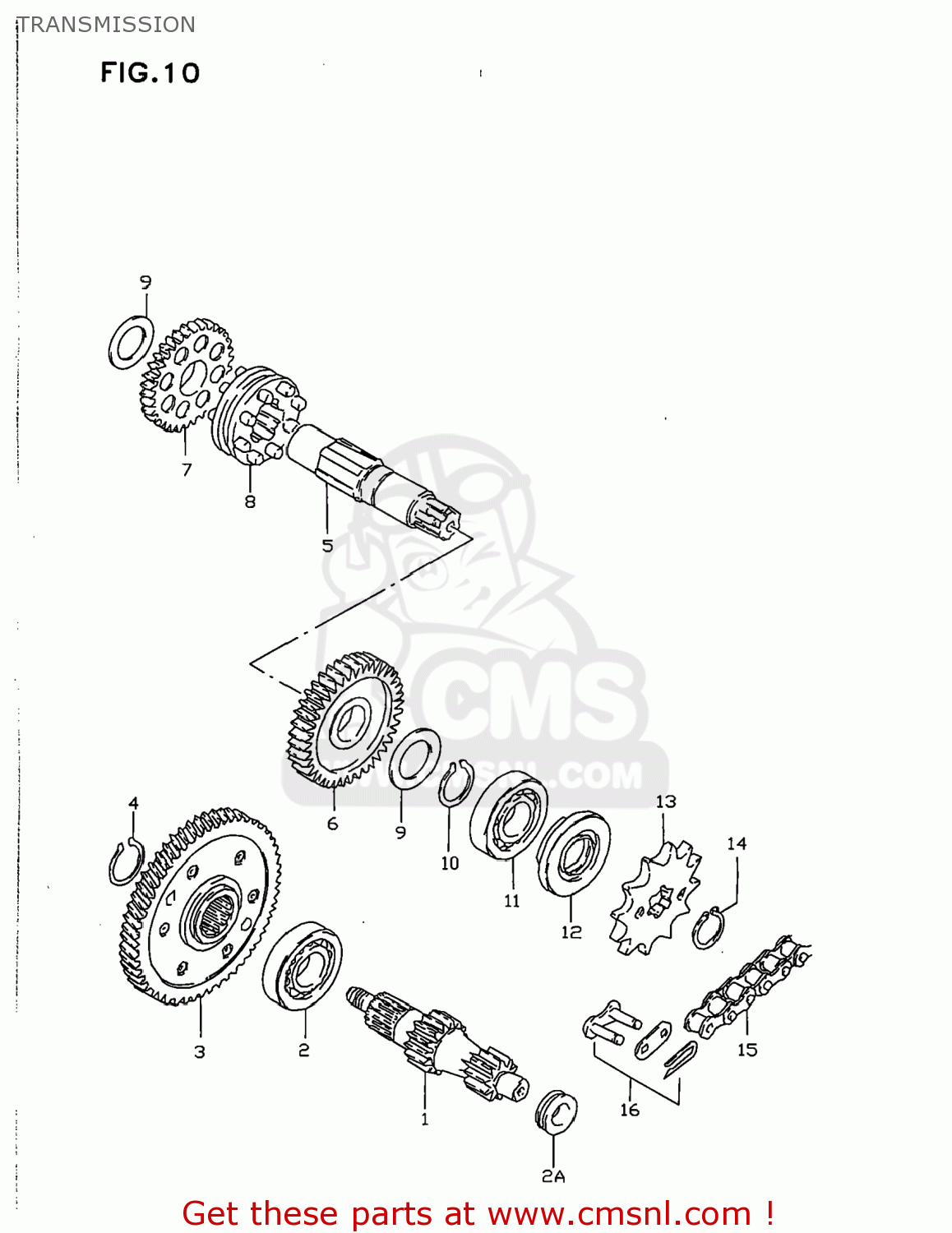

TRANSMISSION

ref

part #

description

quantity

1-1

2412104010
ref: 1-1
24121-04011

SHAFT,COUNTER

€ 89.00

1-2

2412104011
ref: 1-2

SHAFT,COUNTER

€ 89.00

2

0926217023
ref: 2

BEARING(17X40X12)

€ 14.00

2A

0930410005
ref: 2A

BUSH

€ 6.00

3

2120004501
ref: 3

GEAR ASSY,PRI DRIVEN

€ 103.00

4

0938017003
ref: 4

CIRCLIP

€ 3.00

5

2413104001
ref: 5

SHAFT,DRIVE

€ 81.50

6-1

2431104001
ref: 6-1
24311-04002

GEAR,FIRST DRIVEN

€ 51.50

6-2

2431104002
ref: 6-2

GEAR 1ST DRIVEN

€ 51.50

7-1

2432104010
ref: 7-1
24321-04011

GEAR,SECOND DRIVEN

€ 55.50

7-2

2432104011
ref: 7-2

GEAR 2ND DRIVEN

€ 55.50

8

2441104003
ref: 8

WHEEL,1ST GEAR

€ 39.50

9-1

0821117301
ref: 9-1
09181-17223

WASHER,THRUST

€ 3.00

9-2

0918117223
ref: 9-2

SHIM(17X30X1)

€ 3.00

10

0938017003
ref: 10

CIRCLIP

€ 3.00

11

0926217023
ref: 11

BEARING(17X40X12)

€ 14.00

12

0928317010
ref: 12
09283-17012

OIL SEAL (17X29X7)

€ 9.50

13

2751119000
ref: 13

SPROCKET,ENGINE

€ 14.00

14

0833131166
ref: 14
08331-3116A

CIRCLIP 16MM

€ 2.00

15

2760001011078
ref: 15

CHAIN,DRIVE

€ 16.00

16

2762001012
ref: 16

JOINT

€ 5.00

all assemblies
