FRAME COVER

JR50 2006 (K6) USA (E03)

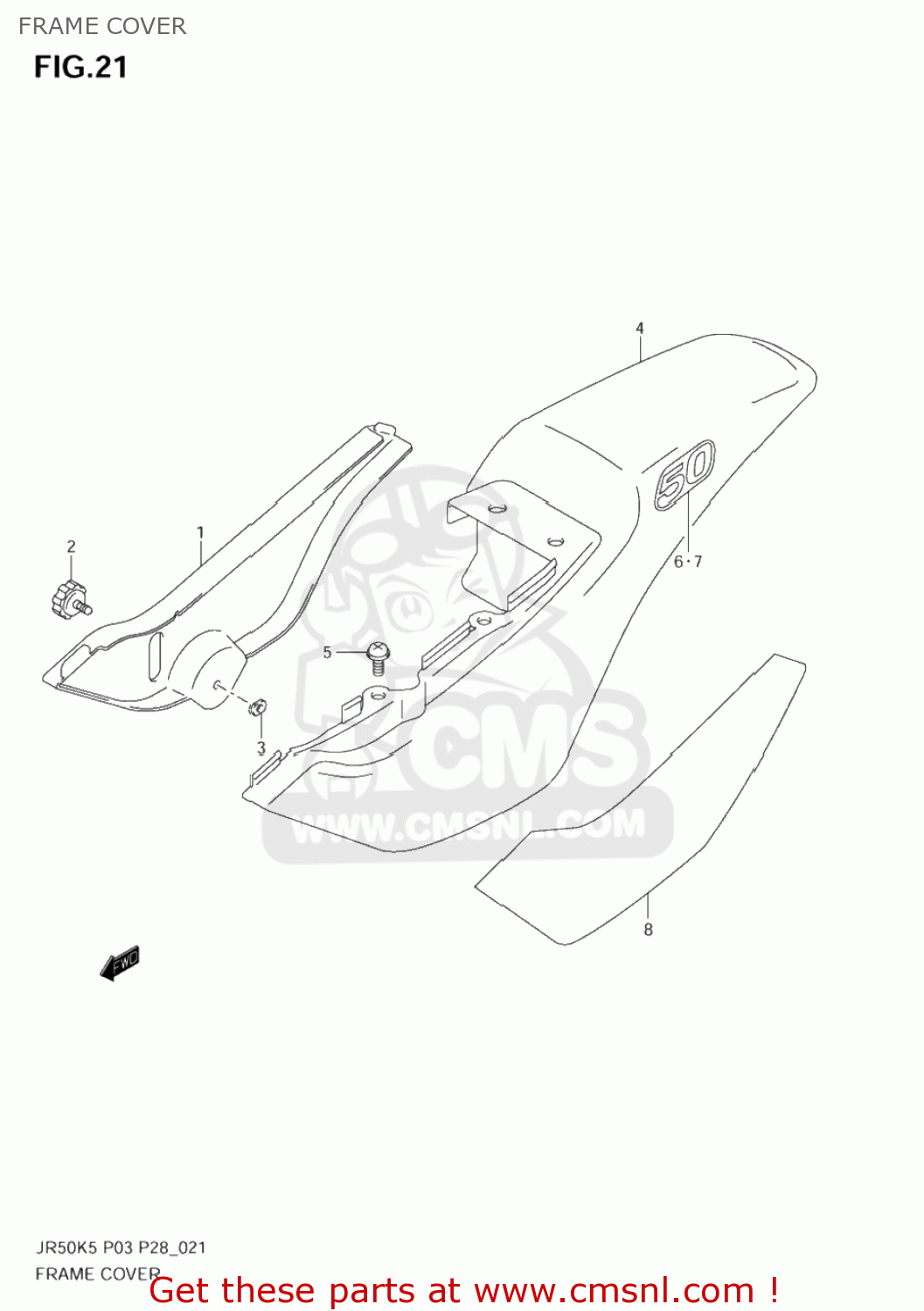

Frame cover diagram JR50 2006 (K6) USA (E03)

FRAME COVER JR50 2006 (K6) USA (E03)
FRAME COVER JR50 2006 (K6) USA (E03)
FRAME COVER JR50 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4711109AA030H
ref: 1
COVER,FRAME,R(WHITE)
4711109AA030H
€ 36.50
2
4713033101
ref: 2
KNOB,FRAME COVER,R
4713033101
€ 7.50
3
0915206002
ref: 3
NUT
0915206002
€ 2.00
4-1
4721109AA0YU1
ref: 4-1
COVER,FRAME,L(YELLOW)
€ 57.50
4-2
4721109AB0YU1
ref: 4-2
COVER,FRAME,L(YELLOW)
4721109AB0YU1
€ 57.50
5
0913606015
ref: 5
SCREW(6X16)
0913606015
€ 2.00
6-1
6813109A20GY8
ref: 6-1
EMBLEM,FRAME COVER,R
€ 8.00
6-2
6813109A20CFL
ref: 6-2
EMBLEM,FRAME COVER,R
€ 0.00
7-1
6814109A20GY8
ref: 7-1
EMBLEM,FRAME COVER,L
€ 8.00
7-2
6814109A20CFL
ref: 7-2
EMBLEM,FRAME COVER,L
€ 0.00
8
6814509AB030H
ref: 8
TAPE,FRAME COVER,L
€ 64.50
