MAGNETO

JR50 2006 (K6) USA (E03)

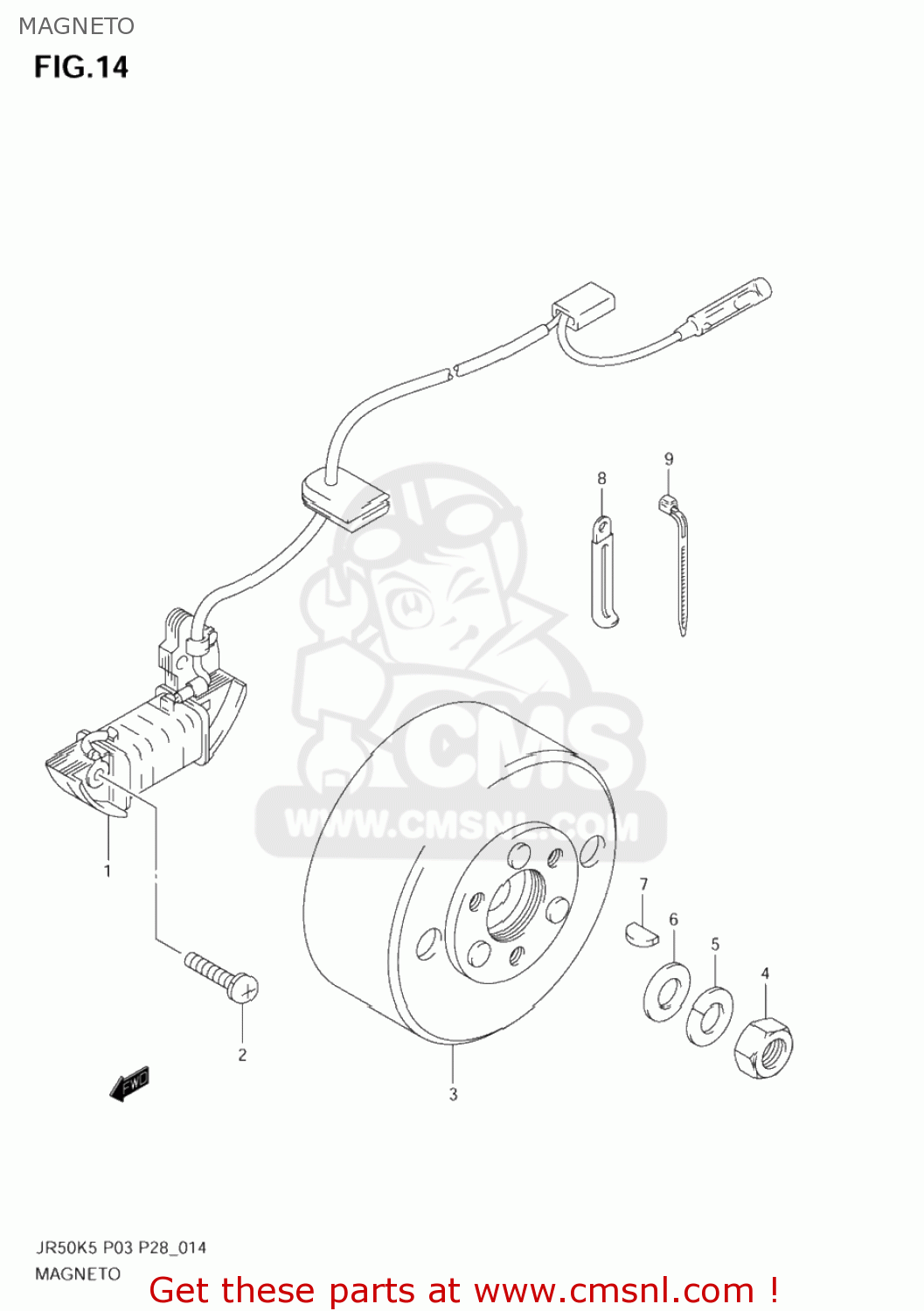

Magneto diagram JR50 2006 (K6) USA (E03)

MAGNETO JR50 2006 (K6) USA (E03)

MAGNETO JR50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210119G00
ref: 1

STARTER ASSY

€ 80.50

2

0211234253
ref: 2
02112-3425B

SCREW

€ 2.00

3

3210219G00
ref: 3

ROTOR ASSY

€ 0.00

4

0831000103
ref: 4
08310-0010A

NUT

€ 2.00

5

0832101103
ref: 5
08321-0110A

WASHER

€ 3.00

6

0832201103
ref: 6
08322-0110A

WASHER

€ 2.50

7

0834131039
ref: 7

KEY

€ 2.00

8

0940406429
ref: 8

CLAMP(L:45)

€ 2.50

9

0940718402
ref: 9

CLAMP(L:165)

€ 2.50
