REAR BRAKE

JR50 2006 (K6) USA (E03)

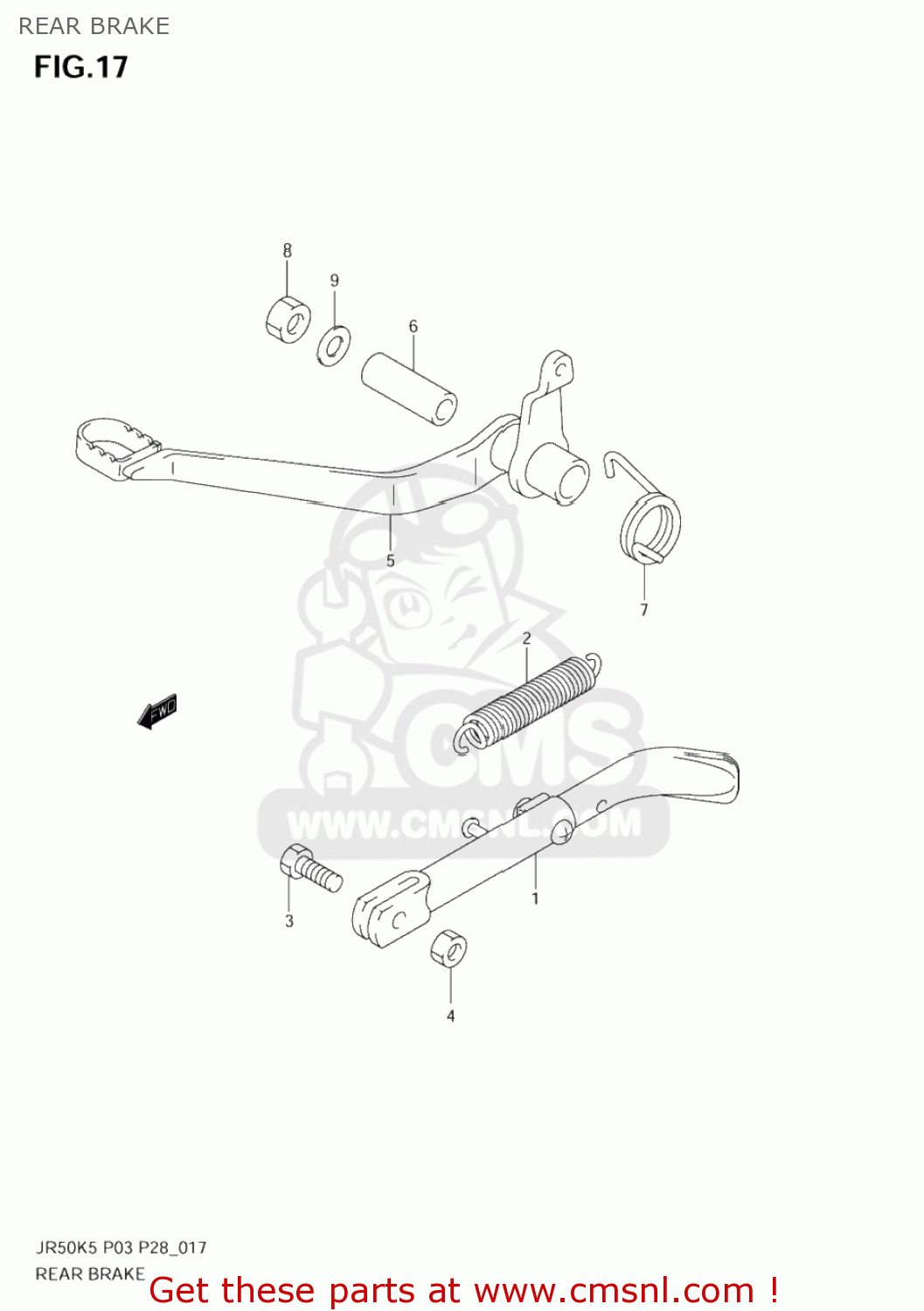

Rear brake diagram JR50 2006 (K6) USA (E03)

REAR BRAKE JR50 2006 (K6) USA (E03)

REAR BRAKE JR50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4230004420019
ref: 1

STAND,PROP

€ 93.50

2

0944314017
ref: 2

SPRING

€ 6.50

3

0910008274
ref: 3

BOLT(8X22)

€ 3.00

4

0831000083
ref: 4
08310-0008A

NUT

€ 1.50

5

4311004410
ref: 5

PEDAL,BRAKE

€ 12.00

6

4318104411
ref: 6

SPACER,BRAKE PEDAL

€ 3.50

7

4318204410
ref: 7

SPRING,BRAKE PEDAL RETURN

€ 6.50

8

0915910093
ref: 8

NUT

€ 8.50

9

0916010119
ref: 9
09160-10143

WASHER(10.5X22X1.6)

€ 2.00
