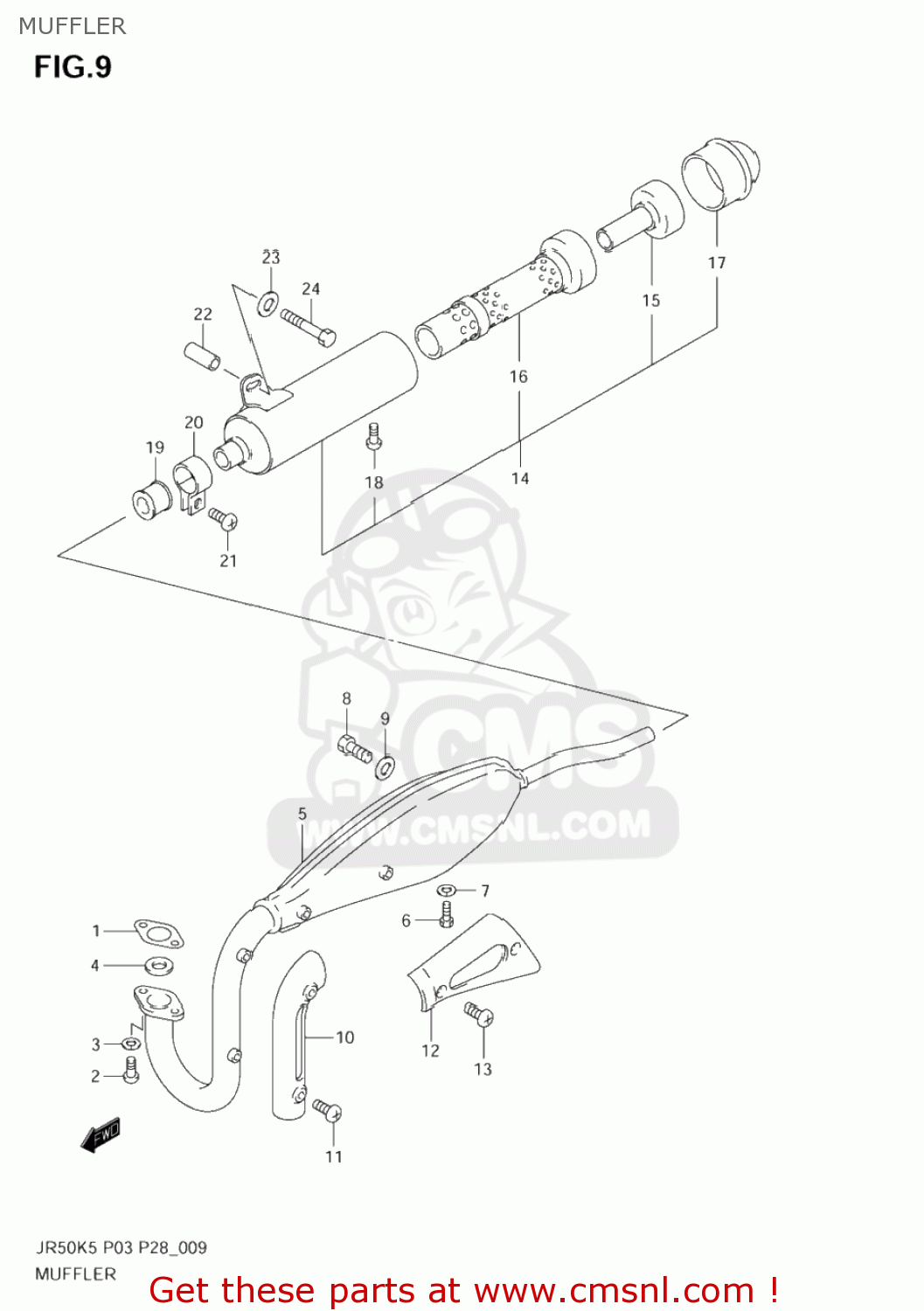

MUFFLER

ref

part #

description

quantity

1

1418104200
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 7.00

2

0713006163
ref: 2
07130-0616B

BOLT,OIL FILLE

€ 3.00

3

0832101063
ref: 3
08321-0106A

LOCK WASHER

€ 2.00

4

1415904410
ref: 4

PLATE,EXHAUST PIPE

€ 7.00

5

1430104420H01
ref: 5

MUFFLER ASSY

€ 99.00

6

0150006103
ref: 6
01500-0610B

BOLT

€ 2.00

7

0832201063
ref: 7
08322-0106B

WASHER

€ 2.00

8

0157008163
ref: 8
01570-0816A

BOLT, UPPER

€ 2.00

9

0916008125
ref: 9
09160-08054

WASHER (8.5X20X1.6)

€ 1.50

10

1418604410
ref: 10

COVER,EXHAUST PIPE

€ 10.00

11

0912505121
ref: 11
02112-0506B

SCREW (M5X6)

€ 2.00

12

1478104410
ref: 12

COVER,MUFFLER

€ 13.50

13

0912505121
ref: 13
02112-0506B

SCREW (M5X6)

€ 2.00

14

1430304420H01
ref: 14

MUFFLER ASSY,2ND

€ 121.50

15

1451004420
ref: 15

PIPE,BAFFLE

€ 0.00

16

1485004420
ref: 16

ARRESTER

€ 0.00

17

1481704420
ref: 17

CUTTER,MUFFLER TAIL

€ 0.00

18

0211236123
ref: 18
02112-3612A

BOLT

€ 2.00

19

1477104410
ref: 19

CONNECTOR,MUFFLER

€ 2.50

20

0940222601
ref: 20

CLAMP

€ 3.50

21

0211206163
ref: 21
02112-0616A

SCREW 6X16

€ 2.00

22

1441904420
ref: 22

SPACER,2ND MUF SPRT

€ 3.50

23

0832201083
ref: 23
08322-0108A

WASHER

€ 1.50

24

0150008453
ref: 24

BOLT

€ 2.50
