CARBURETOR

JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)

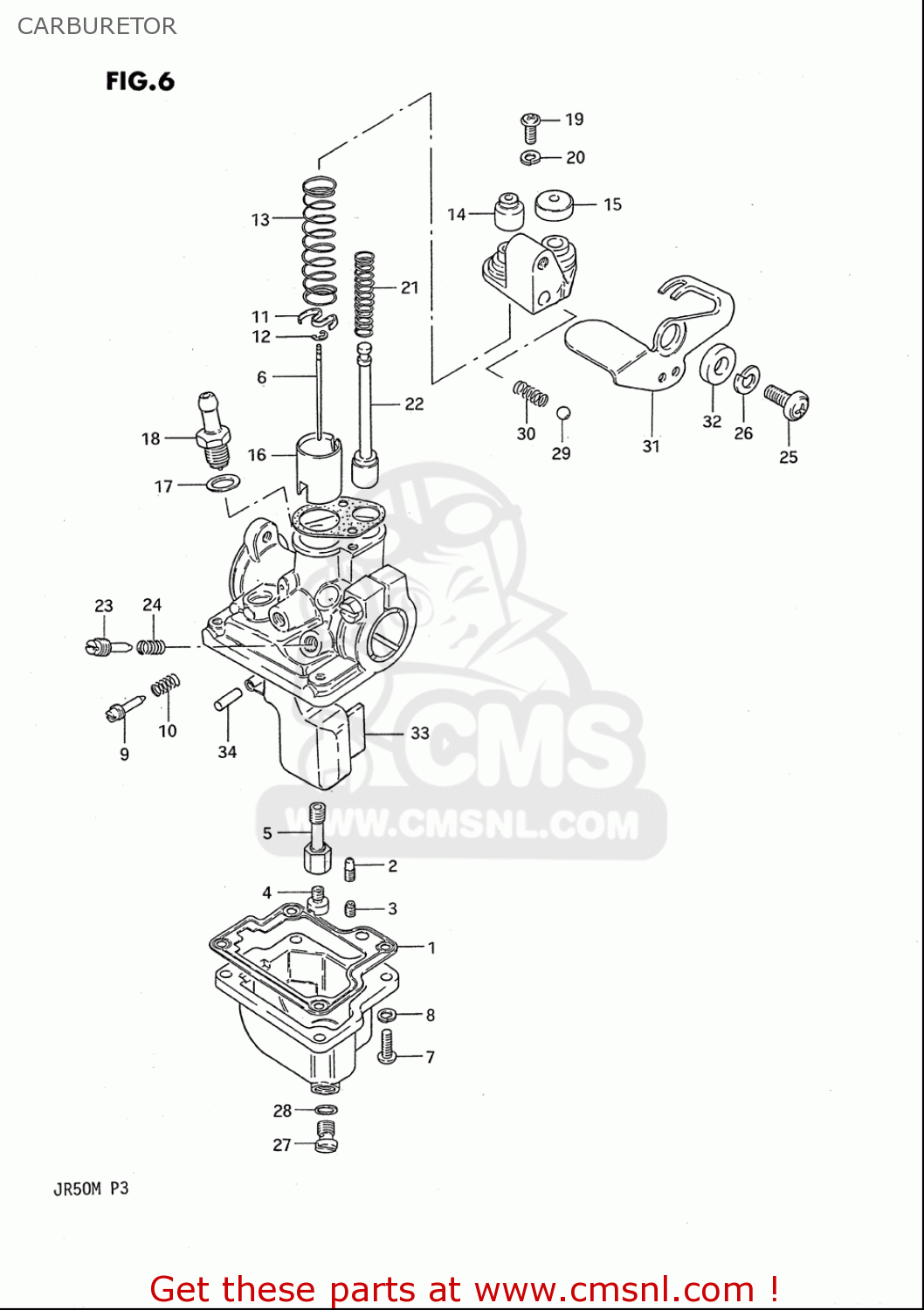

Carburetor diagram JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)

CARBURETOR JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)
CARBURETOR JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)
CARBURETOR JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
0
1320004410
ref: 0
CARBURETOR ASSY
1320004410
€ 114.50
1
1325104110
ref: 1
GASKET,FLOAT CAHMBER (NAS)
1325104110
€ 5.50
2
0949215015
ref: 2
JET,PILOT(15)
0949215015
€ 11.00
3
0949215009
ref: 3
JET,PILOT
0949215009
€ 6.50
4
0949152002
ref: 4
JET,MAIN
0949152002
€ 7.50
5
0949400210
ref: 5
JET,NEEDLE
0949400210
€ 16.00
6
1338319010
ref: 6
NEEDLE,JET
1338319010
€ 13.50
7
0211204123
ref: 7
SCREW
0211204123
€ 1.50
8
0832101043
ref: 8
WASHER,LOCK
0832101043
€ 2.00
9
1326701010
ref: 9
SCREW,THROTTLE STOP
1326701010
€ 6.00
10
1326801010
ref: 10
SPRING
1326801010
€ 3.50
11
1358104010
ref: 11
SEAT,THROTTLE VALVE SPRING
1358104010
€ 3.00
12
1339440D00
ref: 12
CLIP,NEEDLE
1339440D00
€ 3.00
13
1357301010
ref: 13
SPRING,THROTTLE VALVE
1357301010
€ 5.50
14
1368104010
ref: 14
CAP
1368104010
€ 3.00
15
1368298010
ref: 15
RUBBER,THROTTLE VALVE CAP
1368298010
€ 3.00
16
1355104110
ref: 16
VALVE,THROTTLE
1355104110
€ 24.00
17
1366331010
ref: 17
GASKET,THRO VALVE INSPECTION (NAS)
1366331010
€ 3.50
18
1337004110
ref: 18
VALVE ASSY,NEEDLE
1337004110
€ 22.50
19
0211204103
ref: 19
SCREW
0211204103
€ 1.00
20
0832101043
ref: 20
WASHER,LOCK
0832101043
€ 2.00
21
1341718630
ref: 21
SPRING
1341718630
€ 6.00
22
1341104410
ref: 22
VALVE,STARTER
€ 14.00
23
1326904010
ref: 23
SCREW,AIR
1326904010
€ 10.00
24
1326801010
ref: 24
SPRING
1326801010
€ 3.50
25
021120612A
ref: 25
SCREW
021120612A
€ 1.50
26
083210106A
ref: 26
WASHER,LOCK
083210106A
€ 2.00
27
1324705010
ref: 27
PLUG
1324705010
€ 6.00
28
1324905010
ref: 28
GASKET,DRAIN,PLUG (NAS)
1324905010
€ 1.50
29
1343533110
ref: 29
BALL,STARTER SHAFT
1343533110
€ 2.50
30
1343430650
ref: 30
SPRING,STARTER SHAFT
1343430650
€ 4.00
31
1341304410
ref: 31
LEVER,STARTER
1341304410
€ 13.00
32
1342430650
ref: 32
RING,CARBURETOR STARTER
1342430650
€ 5.00
33
1325204011
ref: 33
FLOAT
1325204011
€ 18.50
34
1325404010
ref: 34
PIN,FLOAT
1325404010
€ 3.00
