CRANKSHAFT

JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)

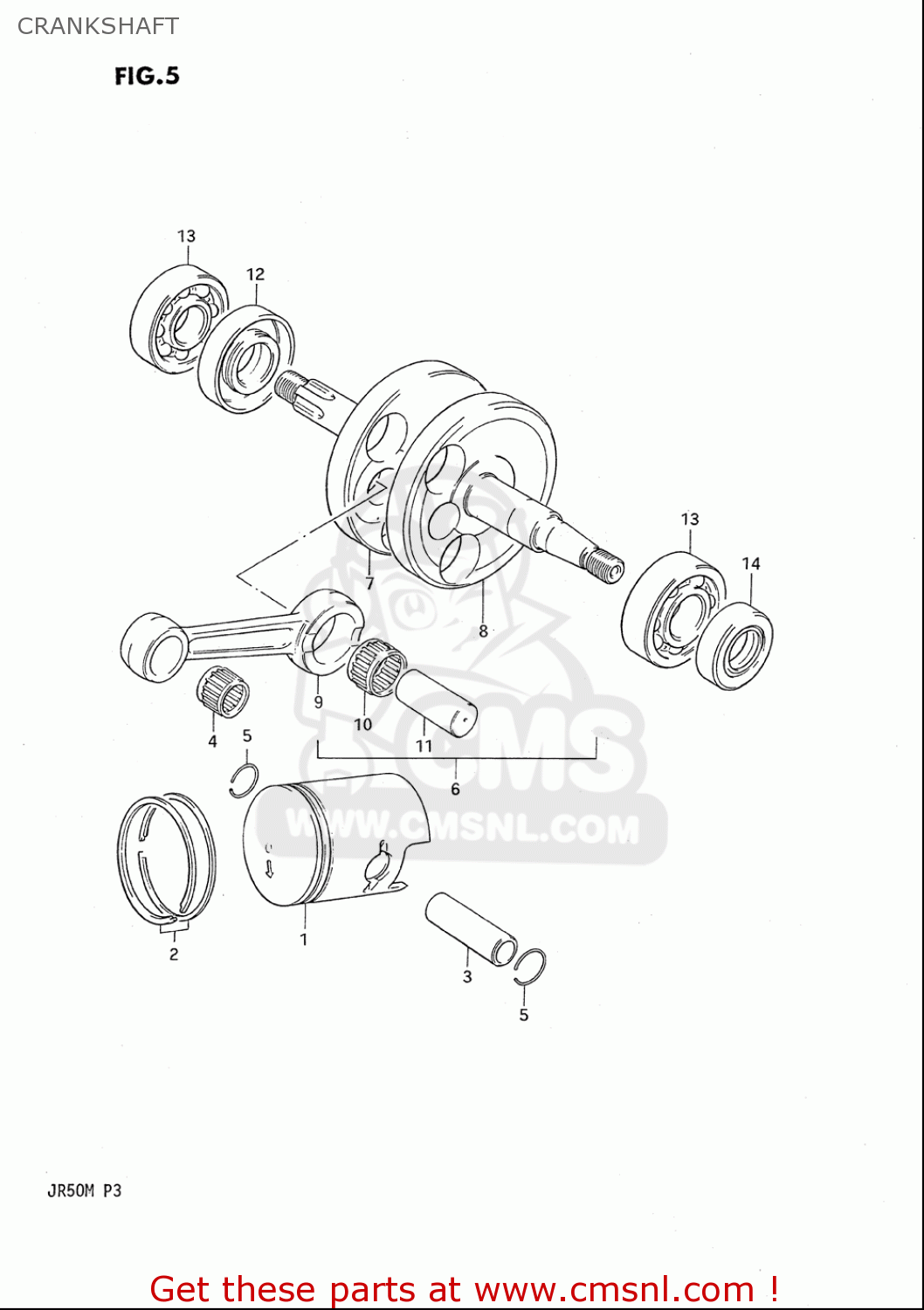

Crankshaft diagram JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1211043000
ref: 1-1

PISTON (41.00MM)

€ 44.00

1-2

1210035611050
ref: 1-2

PISTON SET(OS:0.5)

€ 84.50

1-3

1210035611100
ref: 1-3

PISTON SET(OS:1.0)

€ 71.50

2-1

1214016B10
ref: 2-1

RING SET,PISTON

€ 31.00

2-2

1214046110050
ref: 2-2

RING SET,PISTON(OS:0.50)

€ 24.50

2-3

1214046110100
ref: 2-3

RING SET,PISTON(OS:1.0)

€ 53.00

1215104700
ref: 3

PIN,PISTON

€ 9.00

0926312023
ref: 4

BEARING(12X16X16)

€ 9.00

0938112001
ref: 5

RING,SNAP

€ 1.50

1220004401
ref: 6

CRANKSHAFT ASSY

€ 329.50

1222104400
ref: 7

CRANKSHAFT,R

€ 67.50

1226104000
ref: 8

CRANKSHAFT,L

€ 94.00

1216104001
ref: 9

ROD,CONNECTING

€ 56.00

0926315014
ref: 10

BEARING(15X21X9.8)

€ 14.50

1221104000
ref: 11

PIN,CRANK

€ 14.00

0928322001
ref: 12

SEAL,OIL(22X40X8)

€ 6.50

0926217023
ref: 13

BEARING(17X40X12)

€ 14.00

0928317012
ref: 14

SEAL,OIL(17X29X7)

€ 9.50
