FUEL TANK (MODEL F/G/H)

JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)

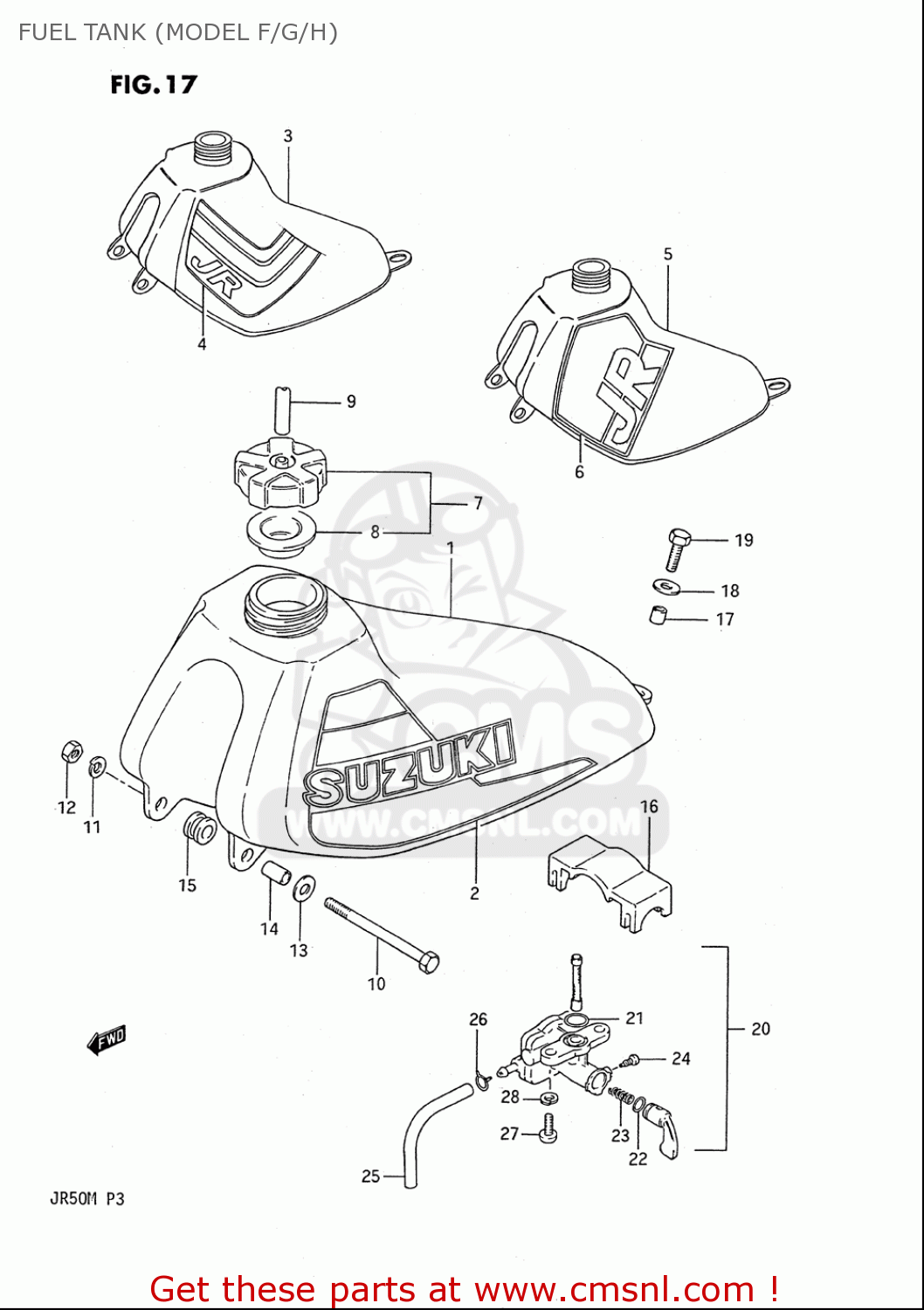

Fuel tank (model f/g/h) diagram JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

441100442025Y
ref: 3

TANK,FUEL

€ 151.50

4420040821
ref: 7

CAP SET,FUEL TANK

€ 20.00

4424805210
ref: 8

GASKET (NAS)

€ 4.50

0935250823600
ref: 9

HOSE(5X8.2X600)

€ 13.00

0150006907
ref: 10

BOLT

€ 1.50

0832101067
ref: 11

WASHER,LOCK

€ 2.50

0831000067
ref: 12

NUT

€ 2.50

0916006028
ref: 13

WASHER(6.5X18X1)

€ 1.50

0918006006
ref: 14

SPACER (6.8X10X11.5)

€ 3.00

0932010008
ref: 15

CUSHION

€ 2.50

4454204420
ref: 16

CUSHION,FUEL TANK UPR

€ 5.50

0918006260
ref: 17

SPACER(6.5X9X7.2)

€ 3.50

0916006028
ref: 18

WASHER(6.5X18X1)

€ 1.50

0150006167
ref: 19

BOLT

€ 3.00

4430004420
ref: 20

COCK ASSY,FUEL

€ 21.00

4434841370
ref: 21

O RING

€ 1.50

4435341370
ref: 22

O RING,LEVER

€ 4.00

4435732470
ref: 23

SPRING

€ 2.00

4434341370
ref: 24

SCREW

€ 2.00

0935250823600
ref: 25

HOSE(5X8.2X600)

€ 13.00

0940108401
ref: 26

CLIP

€ 1.50

0211206167
ref: 27

SCREW

€ 2.50

0832101067
ref: 28

WASHER,LOCK

€ 2.50
