Buy Suzuki JR Parts Online


TRANSMISSION

JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)

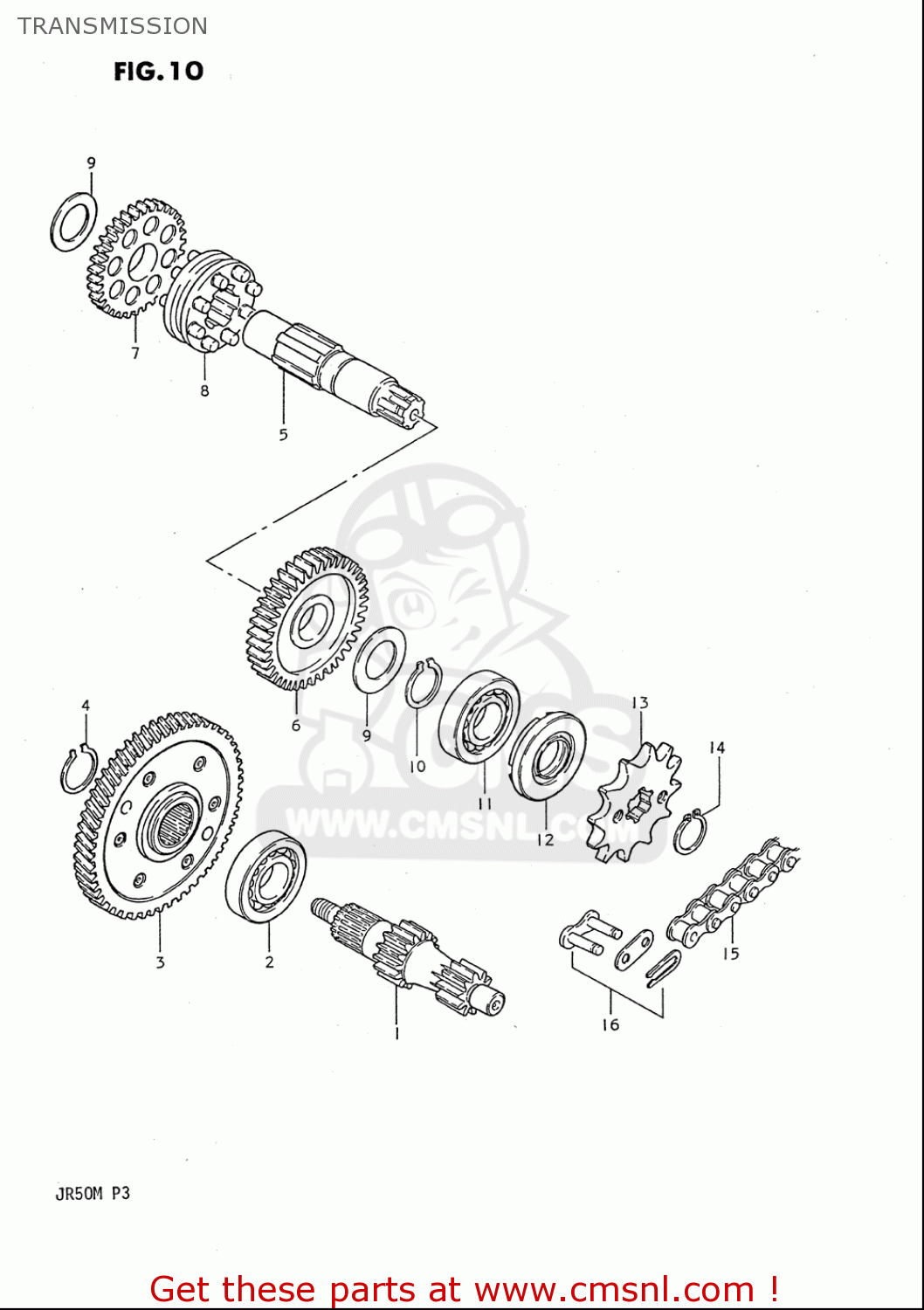

Transmission diagram JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)

TRANSMISSION JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)
TRANSMISSION JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)
TRANSMISSION JR50 85 86 87 88 89 90 91 (F) (G) (H) (J) (K) (L) (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2412104011
ref: 1
SHAFT,COUNTER
2412104011
€ 89.00
2
0926217023
ref: 2
BEARING(17X40X12)
0926217023
€ 14.00
3
2120004501
ref: 3
GEAR ASSY,PRI DRIVEN
2120004501
€ 103.00
4
0938017003
ref: 4
CIRCLIP
0938017003
€ 3.00
5
2413104001
ref: 5
SHAFT,DRIVE
2413104001
€ 81.50
6
2431104002
ref: 6
GEAR 1ST DRIVEN
2431104002
€ 51.50
7
2432104011
ref: 7
GEAR 2ND DRIVEN
€ 55.50
8
2441104003
ref: 8
WHEEL,1ST GEAR
€ 39.50
9
0918117223
ref: 9
SHIM(17X30X1)
0918117223
€ 3.00
10
0938017003
ref: 10
CIRCLIP
0938017003
€ 3.00
11
0926217023
ref: 11
BEARING(17X40X12)
0926217023
€ 14.00
12
0928317001
ref: 12
SEAL,OIL(17X29X7)
0928317001
€ 5.50
13
2751119000
ref: 13
SPROCKET,ENGINE
2751119000
€ 14.00
14
0833131166
ref: 14
CIRCLIP 16MM
0833131166
€ 2.00
15
2760046211
ref: 15
CHAIN,DRIVE
€ 16.00
16-1
2762001023
ref: 16-1
JOINT,CHAIN(RK)
2762001023
€ 5.50
16-2
2762001012
ref: 16-2
JOINT
2762001012
€ 5.00
