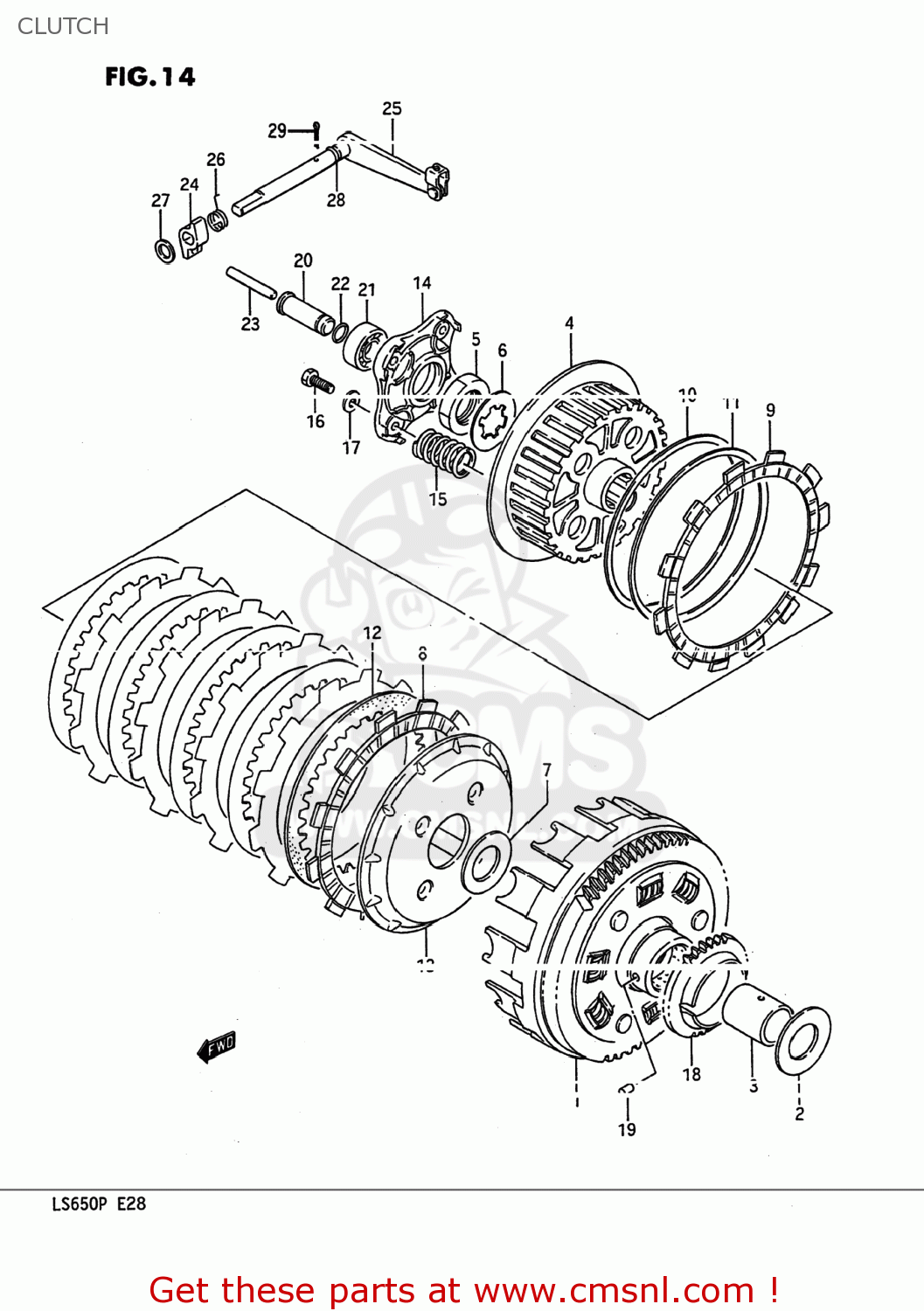

CLUTCH

ref

part #

description

quantity

1

2120024B01
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 263.50

2

0821122443
ref: 2

WASHER

€ 3.00

3

0918022023
ref: 3

SPACER(22X28X32.5)

€ 15.50

4

2141137401
ref: 4

HUB,CLUTCH SLEEVE

€ 78.00

5

0914022009
ref: 5

NUT

€ 6.00

6

0916722005
ref: 6

WASHER,LOCK

€ 2.50

7

0821122403
ref: 7

WASHER

€ 4.00

8

2144137400
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

9

2144237401
ref: 9

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

10

2147137400
ref: 10

SEAT,WAVE WASHER(T:1.4)

€ 8.00

11

0916400004
ref: 11

WASHER

€ 9.00

12

2145114A00
ref: 12

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 6.50

13

2146237400
ref: 13

DISC,CLUTCH PRESSURE

€ 41.00

14

2146537400
ref: 14

PLATE,RELEASE

€ 11.50

15

0944020016
ref: 15

SPRING

€ 5.00

16

0110706207
ref: 16
01500-06207

BOLT

€ 2.00

17

0832221067
ref: 17
08322-01067

WASHER

€ 2.00

18

1632124B00
ref: 18

GEAR,ENG OIL PUMP DRIVE

€ 32.50

19

0926106002
ref: 19

PIN(6X6)

€ 1.50

20

2312124B02
ref: 20

PIECE,CLUTCH PUSH

€ 14.00

21

0811060010
ref: 21
09262-12001

BEARING

€ 15.00

22

0928009005
ref: 22

O RING(D:1.9,ID:8.6)

€ 4.00

23-1

2311124B00445
ref: 23-1

ROD,CLUTCH PUSH

€ 5.50

23-2

2311124B00455
ref: 23-2

ROD,CLUTCH PUSH

€ 5.50

23-3

2311124B00465
ref: 23-3

ROD,CLUTCH PUSH

€ 5.50

24

2326324B01
ref: 24

CAM,CLUTCH RELEASE

€ 7.00

25

2327024B03
ref: 25

ARM ASSY,CLUTCH RELEASE

€ 72.00

26

0944813010
ref: 26

SPRING

€ 14.50

27

0821110141
ref: 27
09181-10111

WASHER,THRUST

€ 2.00

28

0928007004
ref: 28

O RING(D:1.9,ID:6.8)

€ 1.50

29

0411120208
ref: 29
04111-2020A

PIN 20X20

€ 1.50

all assemblies
