PILLION RIDER HANDLE

LS650F SAVAGE 1988 (J) USA (E03)

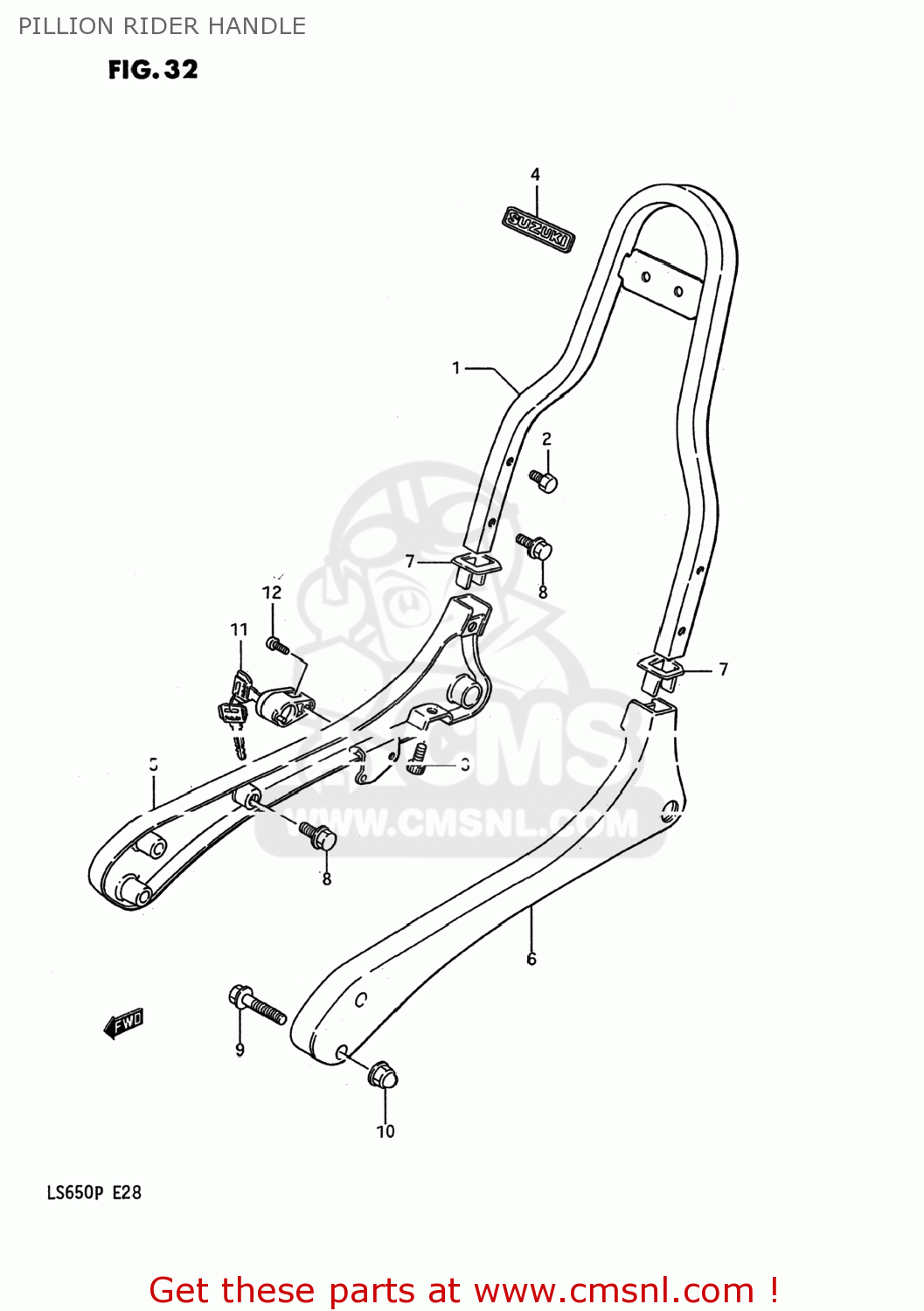

Pillion rider handle diagram LS650F SAVAGE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

4621024B00
ref: 1

HANDLE,PILLION UPR

€ 87.50

0120408127
ref: 2

BOLT

€ 2.00

0711008128
ref: 3
07130-08127

BOLT,LOWER

€ 1.50

6828124B00
ref: 4

EMBLEM

€ 8.50

4624024B00
ref: 5

HANDLE,PILLION RIDER,R

€ 132.00

4625024B00
ref: 6

HANDLE,PILLION RIDER,L

€ 132.00

4626124B00
ref: 7

COVER,PILLION HNDL

€ 3.00

0151708166
ref: 8
01550-0816A

BOLT

€ 3.00

0151708356
ref: 9
01550-0835A

BOLT,FRONT

€ 3.50

0831321087
ref: 10
08313-20087

NUT 8MM

€ 2.50

11-1

9570038831
ref: 11-1
95700-38821

LOCK SET,HELMET

€ 54.00

11-2

9570038821
ref: 11-2

LOCK SET,HELMET

€ 54.00

0211205128
ref: 12
02112-05127

SCREW

€ 2.50
