MAGNETO

LS650F SAVAGE 1988 (J) USA (E03)

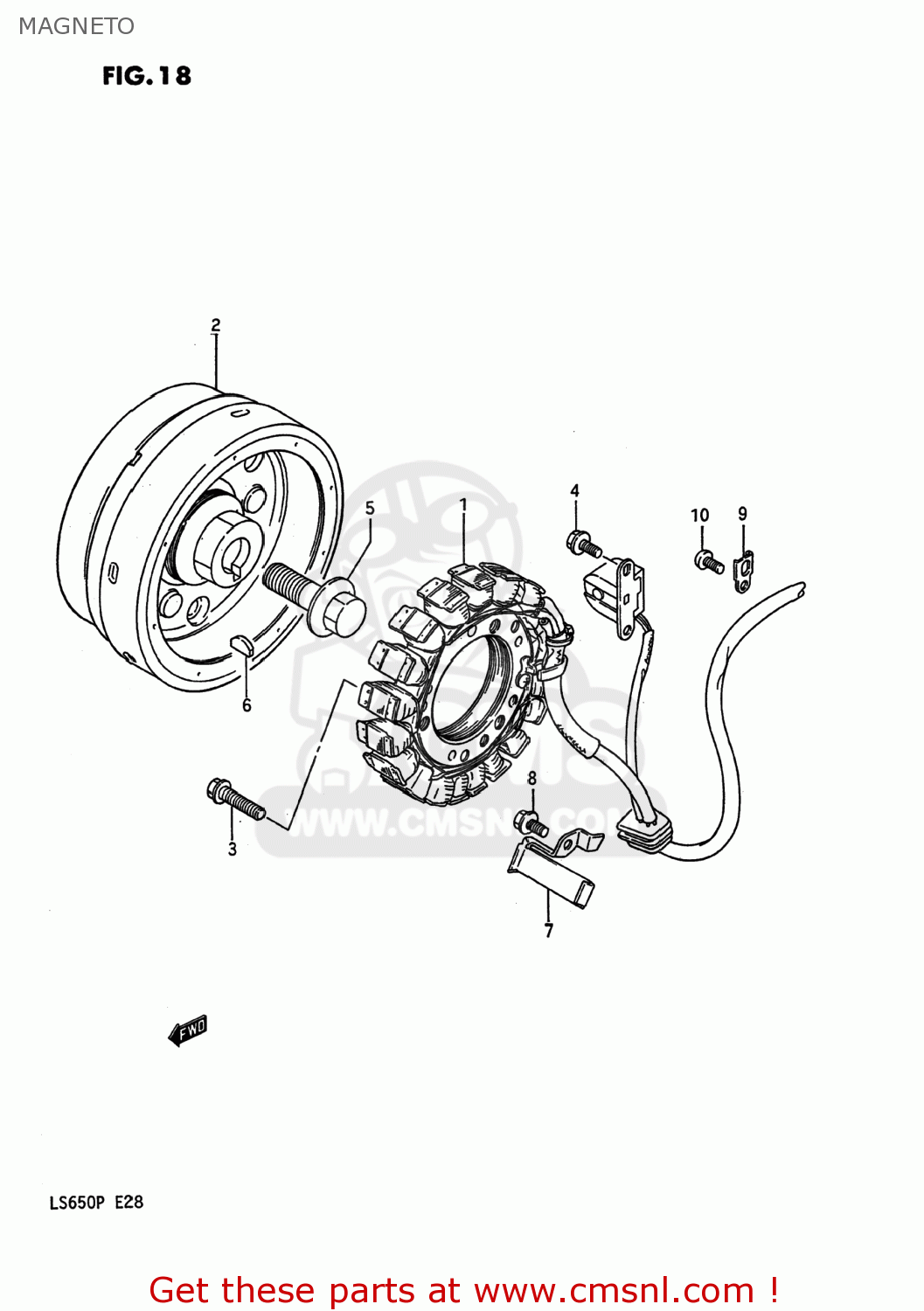

Magneto diagram LS650F SAVAGE 1988 (J) USA (E03)

MAGNETO LS650F SAVAGE 1988 (J) USA (E03)

MAGNETO LS650F SAVAGE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210124B00
ref: 1
32101-24B02

STATOR ASSEMBLY

€ 603.00

2

3210224B00
ref: 2

ROTOR,FLYWHEEL

€ 422.50

3

0154706257
ref: 3

BOLT

€ 2.50

4

0154705107
ref: 4

BOLT

€ 1.50

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942005007
ref: 6

KEY

€ 3.00

7

3237124B00
ref: 7

CLAMP,MAGNETO LEAD WIRE NO.1

€ 3.00

8

0154705107
ref: 8

BOLT

€ 1.50

9

3149745000
ref: 9

CLAMP,GENERATOR LEAD WIRE

€ 1.50

10

0211205107
ref: 10

SCREW

€ 2.00
