CRANKCASE COVER

LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

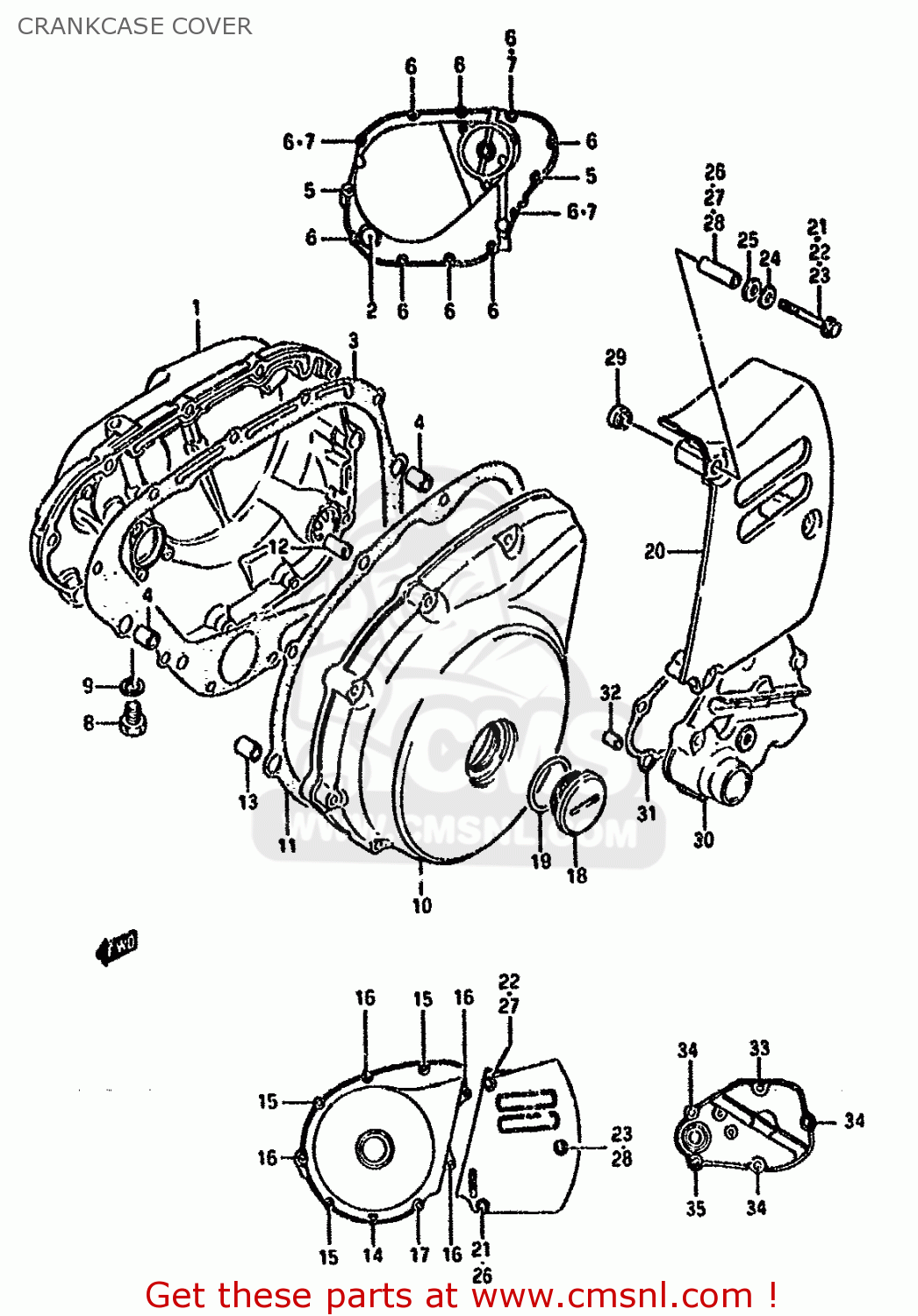

Crankcase cover diagram LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

CRANKCASE COVER LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)
CRANKCASE COVER LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)
CRANKCASE COVER LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)
prices are in EUR
ref
part #
description
quantity
1
1134024B00
ref: 1
COVER,CLUTCH
1134024B00
€ 230.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148224B11
ref: 3
GASKET,CLUTCH COVER (NAS)
1148224B11
€ 26.00
4
0421111169
ref: 4
PIN
0421111169
€ 2.00
5
0154706357
ref: 5
BOLT
0154706357
€ 2.50
6
0154706257
ref: 6
BOLT
0154706257
€ 2.50
7
0916806023
ref: 7
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
8
0924712102
ref: 8
PLUG
0924712102
€ 2.50
9
0916812002
ref: 9
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
10
1135124B01
ref: 10
COVER,GENERATOR
€ 108.50
11
1148324B01H17
ref: 11
GASKET,GENERATOR COVER (NAS)
1148324B01H17
€ 15.50
12
0421109189
ref: 12
PIN
0421109189
€ 2.00
13
0421111189
ref: 13
PIN
0421111189
€ 2.00
14
0154706257
ref: 14
BOLT
0154706257
€ 2.50
15
0154706357
ref: 15
BOLT
0154706357
€ 2.50
16
0154706457
ref: 16
BOLT
0154706457
€ 2.50
17
0154706507
ref: 17
BOLT
0154706507
€ 2.50
18-1
0925936008
ref: 18-1
MODEL G
Chrome Crankshaft Plug
0925936008
€ 8.50
18-2
0925936011
ref: 18-2
MODEL J/K/L/M/R
PLUG,36X10
0925936011
€ 8.50
19
0928033004
ref: 19
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
20-1
1136124B01
ref: 20-1
COVER,ENGINE SPROCKET
1136124B01
€ 55.50
20-2
1136124B20
ref: 20-2
E34
COVER,ENGINE SPROCKET
€ 55.50
20-3
1136124B10
ref: 20-3
MODEL M/R E2,E4,E15,
COVER,ENGINE SPROCKET
1136124B10
€ 75.00
21
0154706457
ref: 21
BOLT
0154706457
€ 2.50
22
0154706507
ref: 22
BOLT
0154706507
€ 2.50
23
0154706557
ref: 23
BOLT
0154706557
€ 2.50
24
0916006097
ref: 24
WASHER
0916006097
€ 2.00
25
0916109006
ref: 25
WASHER(8.7X15X2.1)
0916109006
€ 2.50
26
0918006170
ref: 26
SPACER (6.1X9X31.5)
0918006170
€ 4.00
27
0918006171
ref: 27
SPACER (6.1X9X38.3)
€ 4.50
28
0918006172
ref: 28
SPACER (6.1X9X41.3)
0918006172
€ 4.00
29
0916109005
ref: 29
WASHER(8.7X16X5)
0916109005
€ 2.50
30
1137124B01
ref: 30
COVER,GEAR SHIFT
1137124B01
€ 43.00
31
1148524B10
ref: 31
GASKET,GEAR SHIFT COVER (NAS)
1148524B10
€ 5.50
32
0421109109
ref: 32
PIN
0421109109
€ 2.00
33-1
0154706167
ref: 33-1
MODEL G/J/K/L/M
BOLT
0154706167
€ 2.00
33-2
0154706163
ref: 33-2
MODEL R
BOLT
0154706163
€ 2.50
34-1
0154706307
ref: 34-1
MODEL G/J/K/L/M
BOLT
0154706307
€ 2.50
34-2
0154706303
ref: 34-2
MODEL R
BOLT,G/S SWITC
0154706303
€ 3.00
35-1
0154706357
ref: 35-1
MODEL G/J/K/L/M
BOLT
0154706357
€ 2.50
35-2
0154706353
ref: 35-2
MODEL R
BOLT
0154706353
€ 3.00
