FUEL COCK

LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

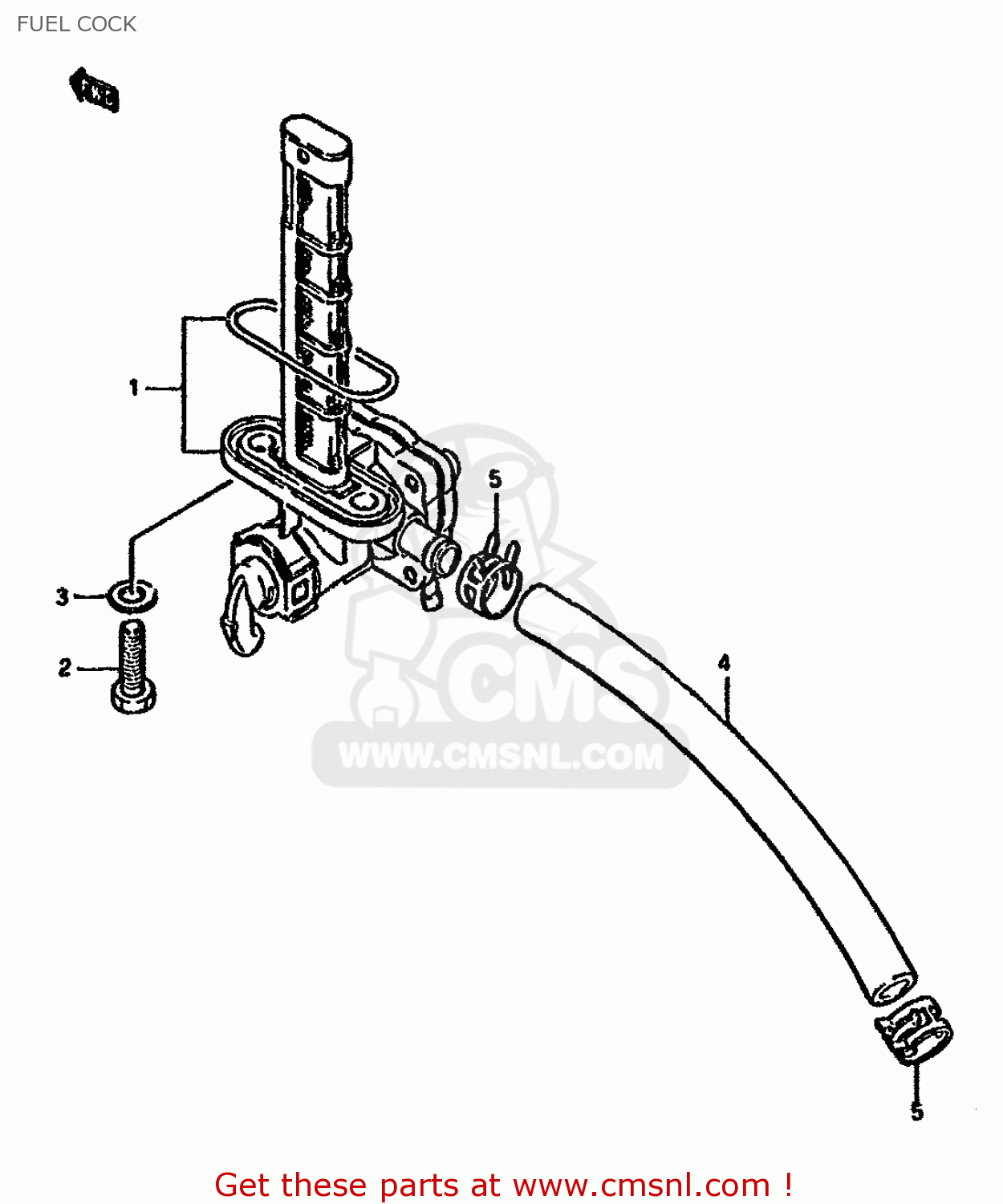

Fuel cock diagram LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

prices are in EUR

ref

part #

description

quantity

4430024B00
ref: 1

COCK ASSY,FUEL

€ 92.00

2-1

0912806057
ref: 2-1
MODEL G/J

BOLT(6X20)

€ 2.00

2-2

0912806006
ref: 2-2
MODEL K/L/M/R

BOLT(6X20)

€ 2.00

3-1

0916806026
ref: 3-1

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

3-2

0916806023
ref: 3-2
E17

GASKET(5.8X13X1.2) (NAS)

€ 2.00

4-1

0934307195
ref: 4-1
MODEL G/J

HOSE

€ 26.00

4-2

0935470123300
ref: 4-2
MODEL K/L/M/R

HOSE (7X12X300)

€ 26.00

0940112406
ref: 5

CLAMP

€ 2.50
