CYLINDER

LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

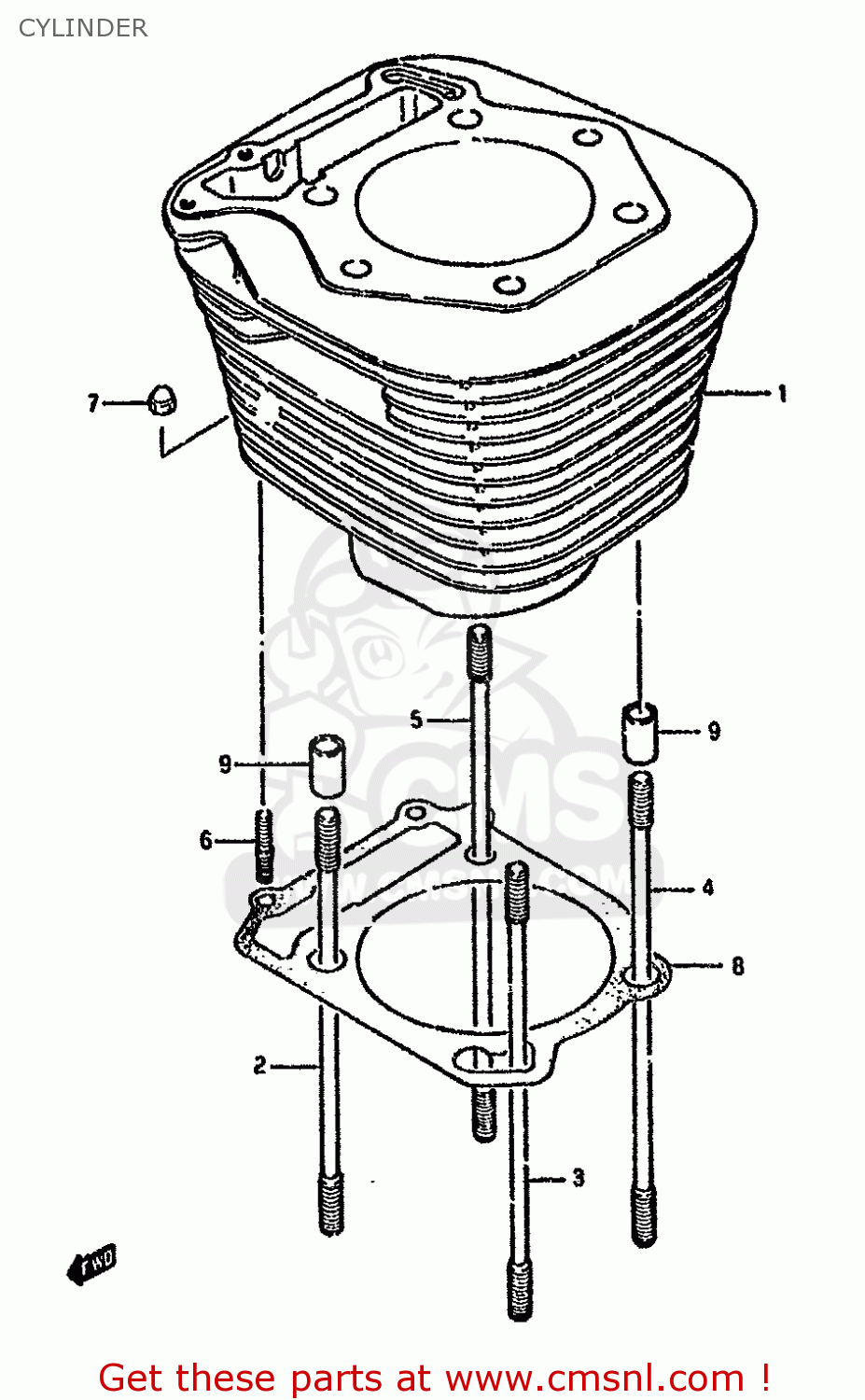

Cylinder diagram LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

CYLINDER LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

CYLINDER LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

prices are in EUR

ref

part #

description

quantity

1

1121024B07
ref: 1

CYLINDER

€ 606.50

2

0910809001
ref: 2

BOLT,STUD

€ 7.50

3

0910809002
ref: 3

BOLT,STUD

€ 8.50

4

0910809003
ref: 4

BOLT,STUD

€ 9.00

5

0910809004
ref: 5

BOLT,STUD

€ 9.00

6

0142106208
ref: 6

STUD 6X20

€ 2.50

7

0831310067
ref: 7

NUT

€ 2.00

8

1124124B01H17
ref: 8

GASKET,CYLINDER (NAS)

€ 10.00

9

0920613001
ref: 9

PIN

€ 2.50
