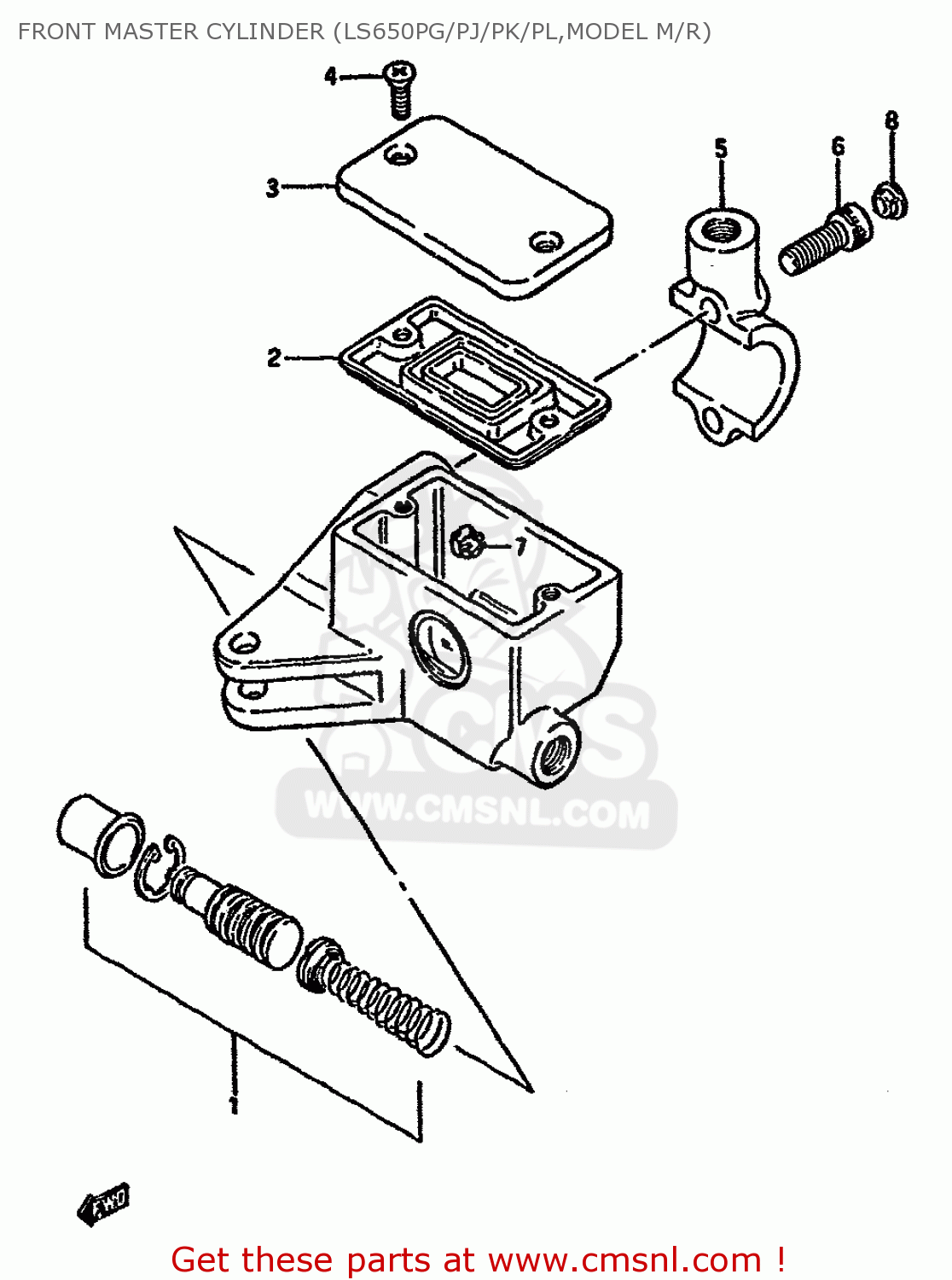

FRONT MASTER CYLINDER (LS650PG/PJ/PK/PL,MODEL M/R)

LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

Front master cylinder (ls650pg/pj/pk/pl,model m/r) diagram LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

FRONT MASTER CYLINDER (LS650PG/PJ/PK/PL,MODEL M/R) LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

FRONT MASTER CYLINDER (LS650PG/PJ/PK/PL,MODEL M/R) LS650P 1994 (R) (E02 E04 E15 E18 E22 E25 E39 E53)

prices are in EUR

ref

part #

description

quantity

0

5960024B10
ref: 0
LS650PG/PJ

CYLINDER ASSEMBLY,FRONT MASTER

€ 328.00

0

5960024B50
ref: 0
LS650PK/PL MODEL M/R

CYLINDER ASSY,FR MASTER

€ 391.50

1

5960036820
ref: 1

CUP SET,MASTER CYLINDER

€ 37.50

2

5966749460
ref: 2

5966749460

3-1

5966938A30
ref: 3-1
LS650PG/PJ

CAP

€ 45.50

3-2

5966924B00
ref: 3-2
LS650PK/PL MODEL M/R

CAP

€ 59.00

4

5969138A00
ref: 4

SCREW,RESERVOIR CAP

€ 2.00

5

5967138A00
ref: 5

HOLDER

€ 37.50

6

0713006207
ref: 6

BOLT

€ 3.50

7

5966448B00
ref: 7
LS650PK/PL MODEL M/R

PROTECTOR

€ 8.00

8

0925005008
ref: 8

CAP(OD:10)

€ 5.00
