CRANK BALANCER
LS650P SAVAGE 1997 (V) USA (E03)

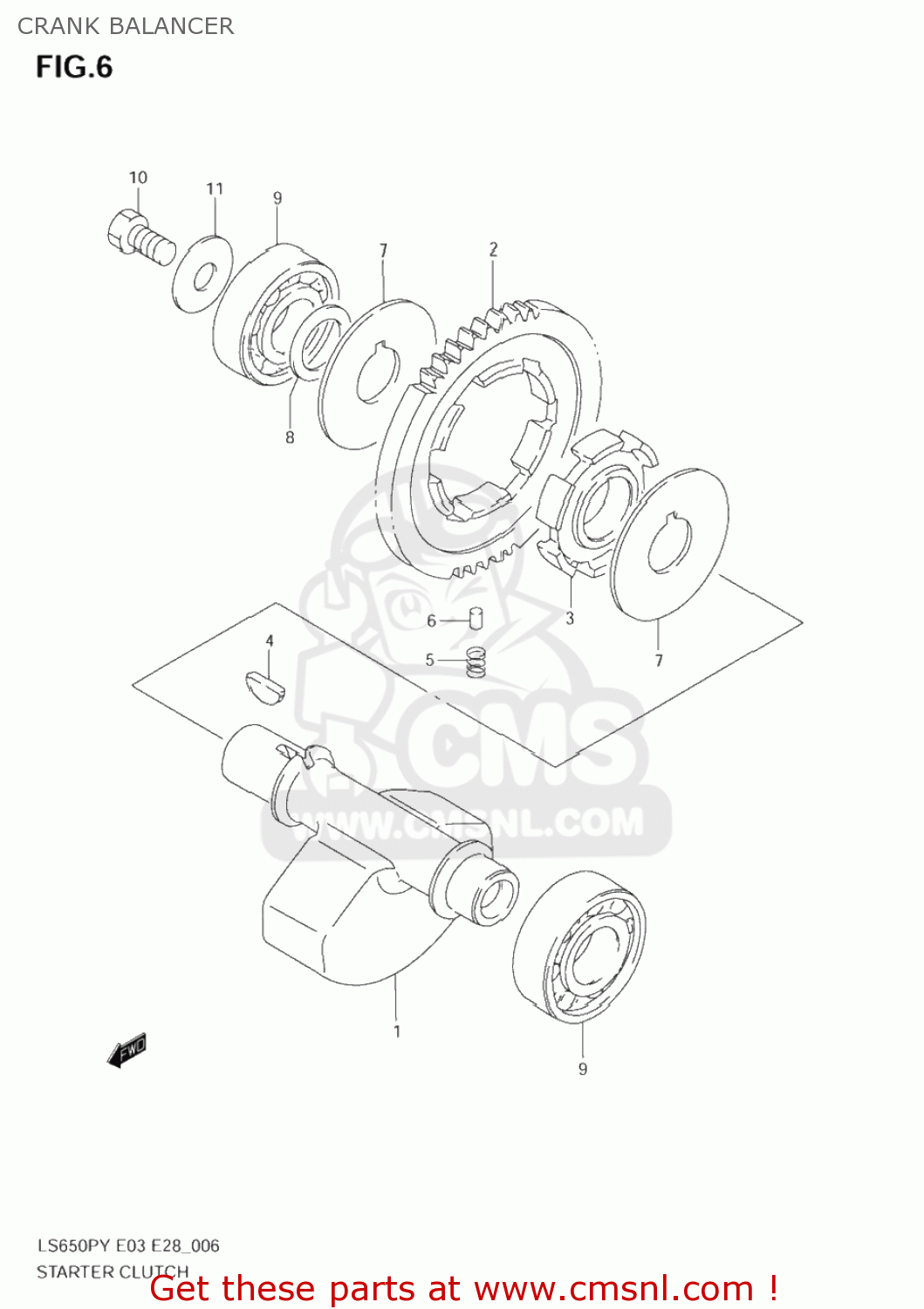

Crank balancer diagram LS650P SAVAGE 1997 (V) USA (E03)
CRANK BALANCER LS650P SAVAGE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1265124B01
ref: 1
SHAFT,CRANK BALANCER
€ 103.50
2
1266624B01
ref: 2
GEAR,CRANK BALANCER DRIVEN
€ 99.50
3-1
1266924B00
ref: 3-1
12669-24B01
RACE,CRANK BALANCER DRIVEN GEAR
€ 34.00
3-2
1266924B01
ref: 3-2
RACE,CRK BAL DRIVEN GEAR INNER
€ 34.00
4
0942004008
ref: 4
KEY
€ 3.50
5
0944009031
ref: 5
SPRING
€ 3.00
6
0920204017
ref: 6
PIN(4.5X9.5)
€ 3.00
7
0916620010
ref: 7
WASHER
€ 4.00
8-1
0822120285
ref: 8-1
09181-20158
THRUST WASHER
€ 2.50
8-2
0918120158
ref: 8-2
SHIM(20X28X0.5)
€ 2.50
9
0926220089
ref: 9
BEARING(20X47X14)
€ 17.50
10
0150010163
ref: 10
01500-1016B
BOLT
€ 2.50
11
0821110285
ref: 11
WASHER
€ 2.50
