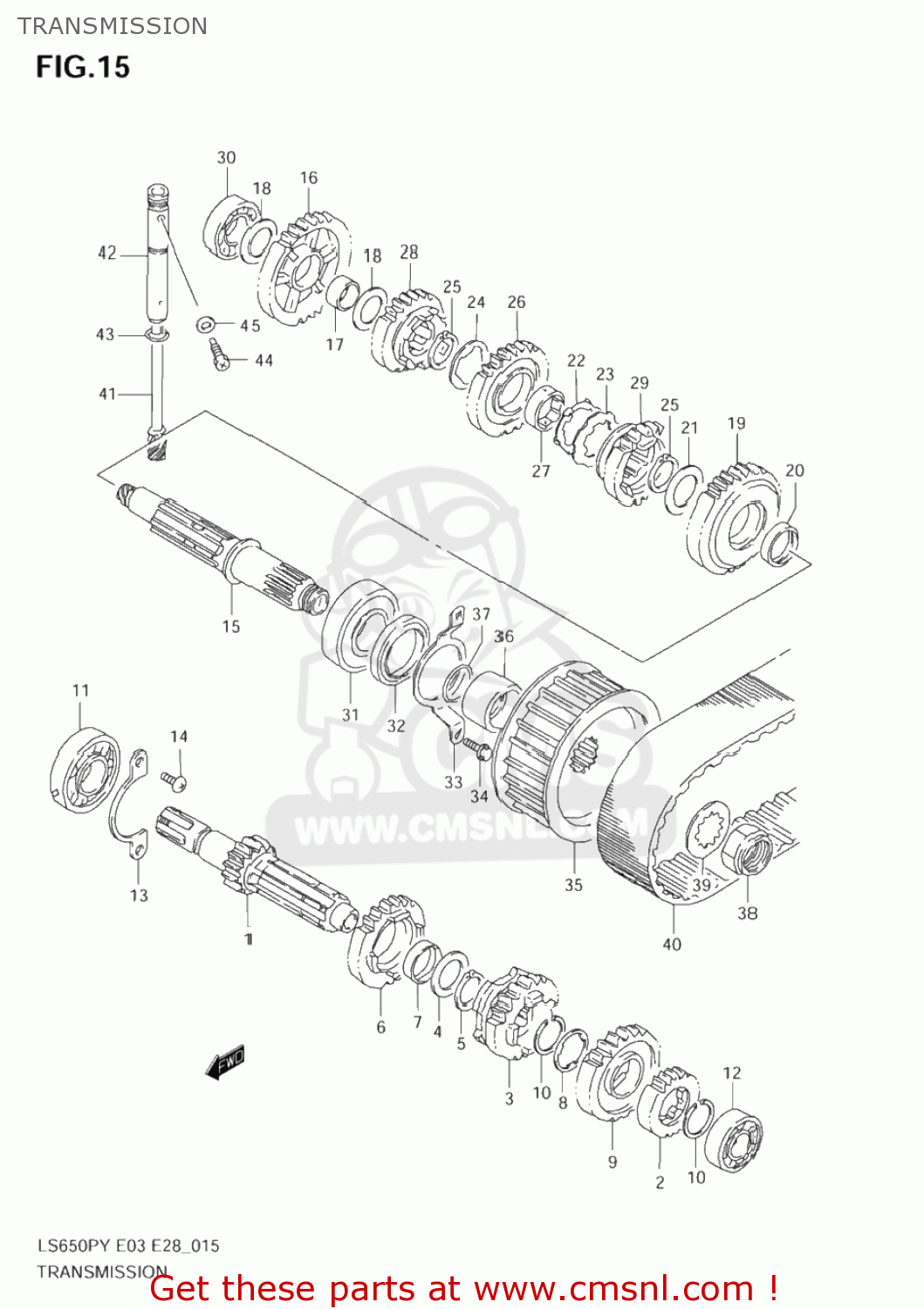

TRANSMISSION

ref

part #

description

quantity

1-1

2412124B11
ref: 1-1
24121-24B12

SHAFT,COUNTER

€ 173.50

1-2

2412124B12
ref: 1-2

SHAFT,COUNTER(NT:15)

€ 173.50

2-1

2422124B20
ref: 2-1
24221-24B21

GEAR,2ND DRIVE

€ 73.00

2-2

2422124B21
ref: 2-2

GEAR,2ND DRIVE(NT:19)

€ 73.00

3-1

2423124B20
ref: 3-1

GEAR,THIRD DRIVE

€ 54.50

3-1

2423124B20
ref: 3-1

GEAR,THIRD DRIVE

€ 54.50

3-2

2423124B21
ref: 3-2
24231-24B30

GEAR,THIRD DRIVE

€ 88.50

3-2

2423124B21
ref: 3-2
24231-24B30

GEAR,THIRD DRIVE

€ 88.50

3-3

2423124B30
ref: 3-3

GEAR,3RD DRIVE(NT:21)

€ 88.50

4

0821125351
ref: 4

WASHER

€ 3.00

5

0938025003
ref: 5

RING,SNAP

€ 3.00

6-1

2424124B11
ref: 6-1

GEAR,4TH DRIVE

€ 73.50

6-1

2424124B11
ref: 6-1

GEAR,4TH DRIVE

€ 73.50

6-2

2424124B12
ref: 6-2

GEAR,FOURTH DRIVE

€ 85.50

6-2

2424124B12
ref: 6-2

GEAR,FOURTH DRIVE

€ 85.50

6-3

2424124B13
ref: 6-3
24241-24B12

GEAR,FOURTH DRIVE

€ 85.50

6-4

2424124B20
ref: 6-4

GEAR,4TH DRIVE(NT:23)

€ 85.50

7-1

0930025023
ref: 7-1
24252-19F00

BUSHING 25X29X10

€ 9.50

7-2

2425219F00
ref: 7-2

BUSH

€ 9.50

8

0916725012
ref: 8

WASHER,LOCK

€ 3.50

9-1

2425124B12
ref: 9-1
24251-24B13

GEAR,FIFTH DRIVE

€ 82.00

9-1

2425124B12
ref: 9-1
24251-24B13

GEAR,FIFTH DRIVE

€ 82.00

9-2

2425124B13
ref: 9-2

GEAR,5TH DRIVE

€ 82.00

9-2

2425124B13
ref: 9-2

GEAR,5TH DRIVE

€ 82.00

9-3

2425124B13
ref: 9-3

GEAR,5TH DRIVE

€ 82.00

10

0938025010
ref: 10

CIRCLIP

€ 3.00

11

0926222028
ref: 11

BEARING(22X56X16)

€ 59.50

12

0926217027
ref: 12

BEARING(17X40X12)

€ 25.00

13

2474124B00
ref: 13

RETAINER,CNTR SHAFT BEARING

€ 6.00

14

0211206123
ref: 14
02112-0612A

SCREW

€ 1.50

15-1

2413024B11
ref: 15-1
24130-24B12

SHAFT COMP,DRIVE

€ 161.50

15-2

2413024B12
ref: 15-2

SHAFT,DRIVE

€ 161.50

16

2431124B11
ref: 16

GEAR,1ST DRIVEN(NT:35)

€ 100.50

17

0930020032
ref: 17

BUSH(20X24X13)

€ 10.00

18-1

0821120301
ref: 18-1

WASHER

€ 3.00

18-2

0918120195
ref: 18-2

SHIM(20X30X1)

€ 3.00

19

2432124B20
ref: 19

GEAR,2ND DRIVEN

€ 85.50

20

0930025020
ref: 20

BUSH(25X29X8)

€ 10.00

21

0821125351
ref: 21

WASHER

€ 3.00

22

0916925001
ref: 22

WASHER

€ 2.00

23

0916725013
ref: 23

WASHER,LOCK

€ 2.50

24

0916725016
ref: 24

WASHER,LOCK

€ 3.00

25

0938025003
ref: 25

RING,SNAP

€ 3.00

26

2433124B20
ref: 26

GEAR,3RD DRIVEN

€ 82.00

27-1

2433224500
ref: 27-1
24332-24510

BUSHING

€ 9.50

27-2

2433224510
ref: 27-2

BUSH,DRIVEN GEAR

€ 9.50

28-1

2434124B11
ref: 28-1
24341-24B20

GEAR,FOURTH DRIVEN

€ 82.00

28-2

2434124B12
ref: 28-2
24341-24B20

GEAR,FOURTH DRIVEN

€ 82.00

28-3

2434124B20
ref: 28-3

GEAR,4TH DRIVEN(NT:22)

€ 82.00

29-1

2435124B12
ref: 29-1
24351-24B13

GEAR,FIFTH DRIVEN

€ 86.50

29-2

2435124B13
ref: 29-2

GEAR,5TH DRIVEN

€ 86.50

30-1

0926220086
ref: 30-1
09262-20106

BALL BEARING 20X42X12

€ 20.50

30-2

0926220106
ref: 30-2

BEARING(20X42X12)

€ 20.50

31

0926225083
ref: 31
09262-25125

BALL BEARING 25X62X17

€ 49.00

32

0928336003
ref: 32

SEAL,OIL(36X50X6)

€ 12.00

33

2475124B00
ref: 33

RETAINER,DRIVE SHAFT OIL SEAL

€ 4.50

34

0154706123
ref: 34
01547-0612B

BOLT

€ 2.00

35

2751024B01
ref: 35

PULLEY,FR

€ 81.50

36

2753124B00
ref: 36

SPACER,FR PULLEY

€ 18.50

37

0928024010
ref: 37

O RING(D:2.4,ID:23.7)

€ 5.50

38

0915920004
ref: 38

NUT

€ 12.00

39-1

0916725014
ref: 39-1
09167-25019

WASHER

€ 2.50

39-2

0916725019
ref: 39-2

WASHER,LOCK

€ 2.50

40

2761124B00133
ref: 40

BELT,DRIVE

€ 416.50

41

2613124B00
ref: 41

GEAR,SPEEDOMETER DRIVEN

€ 21.50

42

2648124B01
ref: 42

SLEEVE,TACHOMETER DRIVEN GEAR

€ 28.50

43

0928010001
ref: 43

O RING(D:1.3,ID:9.6)

€ 2.00

44

0913506013
ref: 44
09135-06501

BOLT

€ 2.50

45

0916806004
ref: 45

GASKET(6.2X11X1).2 (NAS)

€ 1.50

all assemblies
