HEADLAMP (MODEL T/V/W/X/Y)
LS650P SAVAGE 1997 (V) USA (E03)

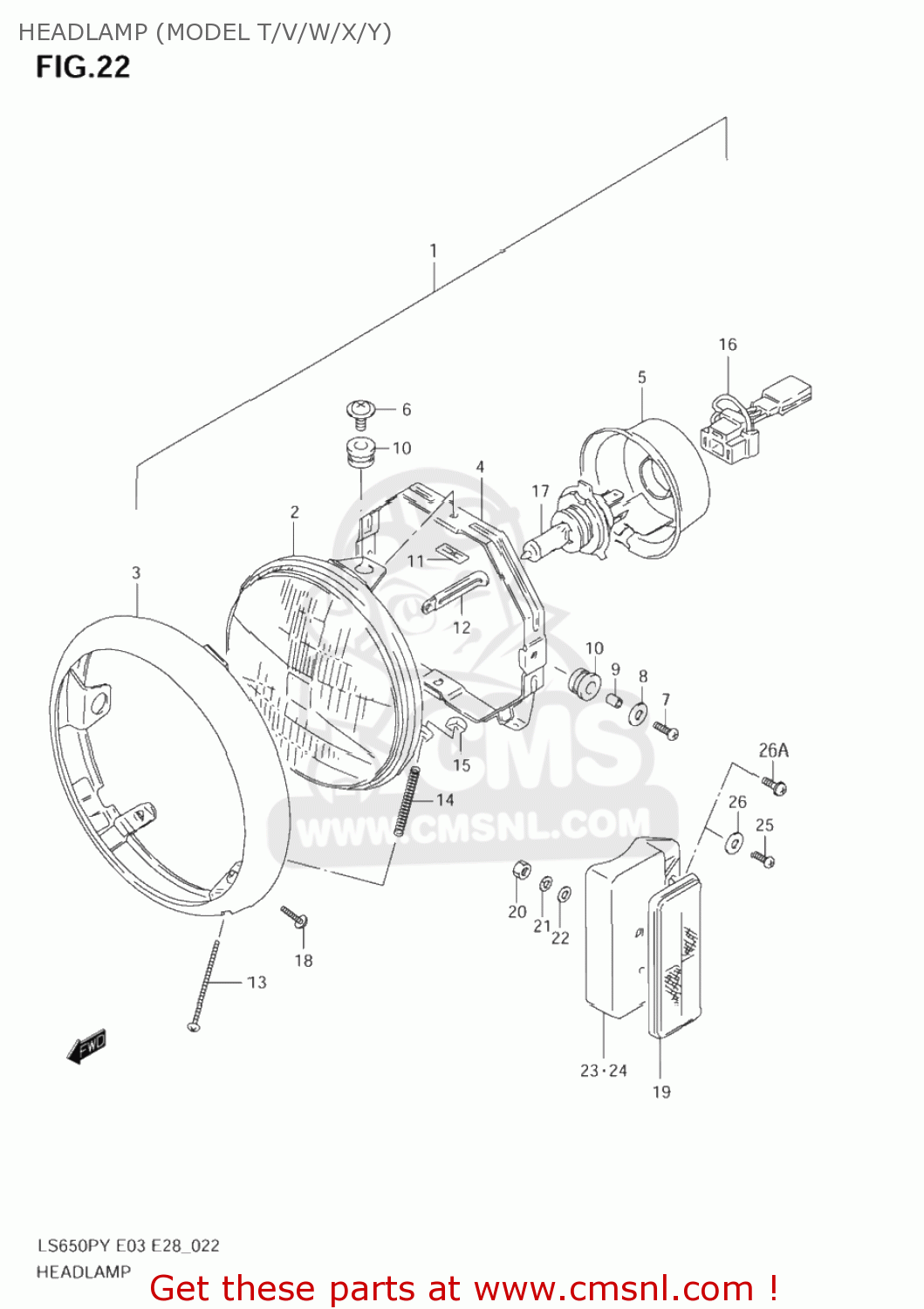

Headlamp (model t/v/w/x/y) diagram LS650P SAVAGE 1997 (V) USA (E03)
HEADLAMP (MODEL T/V/W/X/Y) LS650P SAVAGE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510038A30999
ref: 1
35100-38A61-999
HEADLAMP ASSY
€ 236.00
2
3512138A30
ref: 2
UNIT,LAMP
€ 106.00
3
3511138A00
ref: 3
RIM
€ 27.00
4
3513038A00
ref: 4
RING,MOUNTING
€ 15.00
5
3517338A00
ref: 5
COVER,SOCKET
€ 12.50
6
3513638A00
ref: 6
SCREW,MOUNTING
€ 2.50
7
0912505102
ref: 7
SCREW(5X14)
€ 2.50
8
0916005003
ref: 8
09160-05045
WASHER (5.5X18X1)
€ 2.00
9
3513345230
ref: 9
SPACER
€ 2.00
10
3513945230
ref: 10
CUSHION
€ 1.50
11
3515548510
ref: 11
NUT
€ 2.00
12
0940406429
ref: 12
CLAMP(L:45)
€ 2.50
13
3515138A00
ref: 13
SCREW,ADJUSTING(4X50)
€ 2.50
14
3515431300
ref: 14
SPRING
€ 2.00
15
3515245600
ref: 15
NUT,HEADLAMP ADJUST
€ 3.00
16
3685338A00
ref: 16
SOCKET
€ 10.00
17
0947112060
ref: 17
BULB(12V60/55W,H4)
€ 8.00
18
0214205127
ref: 18
SCREW
€ 1.50
19
3595043431
ref: 19
REFLEX REFLECTOR,FR SIDE
€ 12.00
20
0831000053
ref: 20
08310-0005A
NUT
€ 2.50
21
0832101053
ref: 21
08321-0105A
LOCK,WASHER
€ 3.00
22-1
0916005013
ref: 22-1
WASHER(5.2X16X1)
€ 1.50
22-2
0916005037
ref: 22-2
WASHER(5.5X16X1.2)
€ 1.50
23
3595624B00
ref: 23
BRACKET,FR SIDE RR,R
€ 0.00
24
3595724B00
ref: 24
BRACKET,FR SIDE RR,L
€ 0.00
25
0214205123
ref: 25
02142-0512A
SCREW 5X12
€ 1.50
26
0916005037
ref: 26
WASHER(5.5X16X1.2)
€ 1.50
26A
0913605026
ref: 26A
SCREW(5X12)
€ 2.00
