FRONT WHEEL
LS650P SAVAGE 1997 (V) USA (E03)

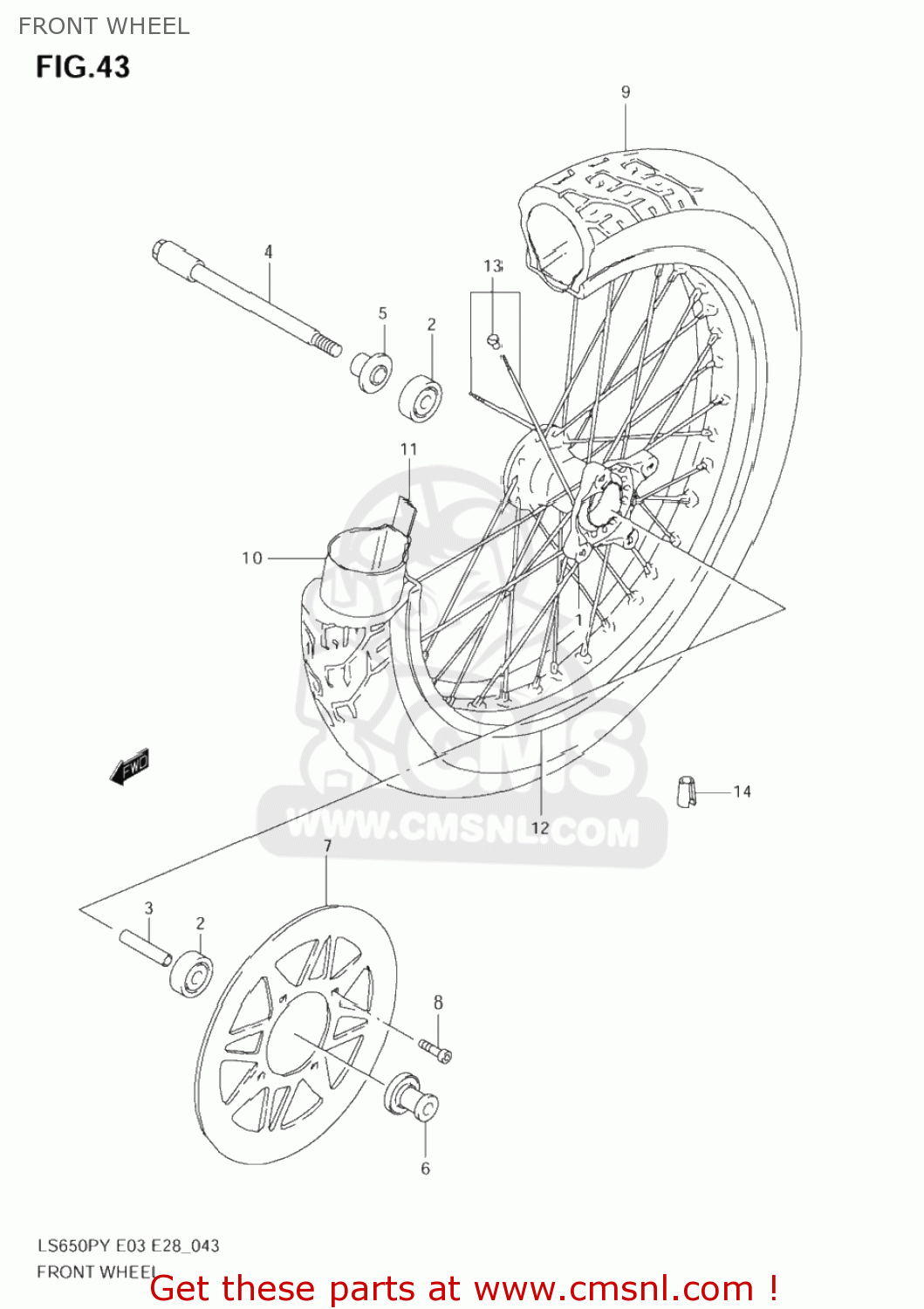

Front wheel diagram LS650P SAVAGE 1997 (V) USA (E03)
FRONT WHEEL LS650P SAVAGE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411124B01
ref: 1
HUB,FR WHEEL
€ 172.50
2
0812363027
ref: 2
BEARING
€ 19.00
3
0918015074
ref: 3
SPACER(15.3X21.7X56)
€ 8.50
3
0918015074
ref: 3
SPACER(15.3X21.7X56)
€ 8.50
4
5471124B01
ref: 4
AXLE,FR
€ 38.50
5
5474024B00
ref: 5
SPACER,FR AXLE,R
€ 12.00
6
5475024B00
ref: 6
SPACER,FR AXLE,L
€ 12.00
7
5921124B00
ref: 7
DISC,FR BRAKE
€ 232.50
8
0910608049
ref: 8
BOLT(8X25.5)
€ 4.00
9
5510024B02
ref: 9
TIRE,FR(100/90-19 57H)
€ 92.50
9
5510024B02
ref: 9
TIRE,FR(100/90-19 57H)
€ 92.50
10
5520044610
ref: 10
TUBE
€ 41.00
11
5526115010
ref: 11
PROTECTOR,WHL INR TUBE
€ 2.50
12
5531124B00
ref: 12
RIM,FR WHEEL WM(2.15X19)
€ 250.00
13
5532024B00
ref: 13
55320-24B10
SPOKE SET,FRONT
€ 38.50
14-1
5541238A00
ref: 14-1
55412-41F00
BALANCER,WHEEL
€ 6.50
14-2
5541338A00
ref: 14-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
