CRANKCASE
LS650P SAVAGE 2000 (Y) USA (E03)

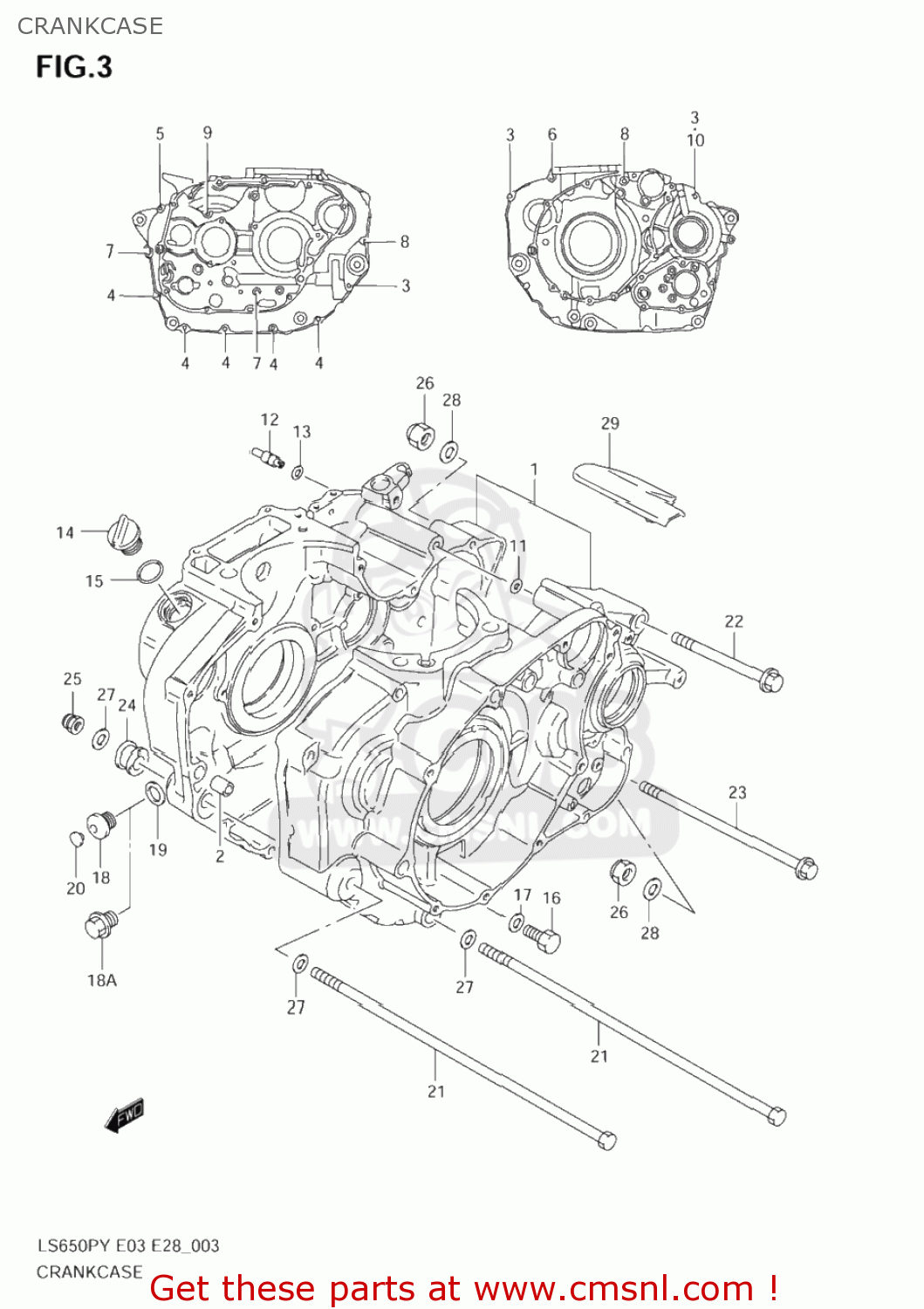

Crankcase diagram LS650P SAVAGE 2000 (Y) USA (E03)
CRANKCASE LS650P SAVAGE 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130124812
ref: 1-1
CRANKCASE SET
€ 1,352.00
1-2
1130224850
ref: 1-2
11302-24852
CRANKCASE SET
€ 1,171.50
2-1
0920611005
ref: 2-1
09206-11017
PIN (11X20)(SUS)
€ 6.50
2-2
0920611017
ref: 2-2
PIN(8.4X11X20)
€ 6.50
3-1
0154706407
ref: 3-1
BOLT
€ 2.50
3-2
0154706403
ref: 3-2
01547-0640B
BOLT
€ 3.00
4-1
0154706457
ref: 4-1
BOLT
€ 2.50
4-2
0154706453
ref: 4-2
01547-0645B
BOLT
€ 3.00
5
0154706557
ref: 5
BOLT
€ 2.50
6-1
0154706607
ref: 6-1
BOLT
€ 2.50
6-2
0154706603
ref: 6-2
01547-0660B
BOLT
€ 3.50
7-1
0154706657
ref: 7-1
BOLT
€ 2.00
7-2
0154706653
ref: 7-2
01547-0665B
BOLT
€ 2.00
7-3
0154706657
ref: 7-3
BOLT
€ 2.00
8-1
0154706707
ref: 8-1
BOLT
€ 2.50
8-2
0154706703
ref: 8-2
01547-0670B
BOLT
€ 3.00
8-3
0154706703
ref: 8-3
01547-0670B
BOLT
€ 3.00
9
0154706753
ref: 9
01547-0675B
BOLT
€ 2.00
10-1
0916806024
ref: 10-1
GASKET(5.8X11X1.2) (NAS)
€ 2.00
10-2
0916806023
ref: 10-2
GASKET(5.8X13X1.2) (NAS)
€ 2.00
11
0928010013
ref: 11
O RING(D:2.4,ID:9.6)
€ 5.50
12
0949336004
ref: 12
JET,OIL GALLERY(18)
€ 8.00
13
0928004004
ref: 13
O RING(D:1.2,ID:4)
€ 2.00
14
0925920007
ref: 14
PLUG(20X10)
€ 6.50
15
0928017003
ref: 15
O RING(D:3.1,ID:16.8)
€ 2.00
16-1
0150012203
ref: 16-1
01500-1220B
BOLT
€ 3.00
16-2
0924712106
ref: 16-2
PLUG,12X20
€ 2.50
17
0916812002
ref: 17
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
18
0924814005
ref: 18
PLUG,14X12
€ 5.00
18A
0924714012
ref: 18A
09247-14026
PLUG (14X12)
€ 3.50
19
0916814002
ref: 19
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
20
0925008014
ref: 20
CAP(OD:12)
€ 3.50
21
0910410034
ref: 21
BOLT(10X323)
€ 16.50
22
0910310087
ref: 22
BOLT(10X105)
€ 6.50
23
0910310053
ref: 23
BOLT(10X180)
€ 7.50
24
1161038400
ref: 24
SPACER,ENGINE MOUNT(L20)
€ 9.00
25
0915910064
ref: 25
NUT
€ 8.50
26
0915910047
ref: 26
NUT
€ 7.50
27
0832201107
ref: 27
WASHER
€ 2.50
28
0832201103
ref: 28
08322-0110A
WASHER
€ 2.50
29
1138424B01
ref: 29
COVER,CRANKCASE START MOT
€ 18.00
