SPEEDOMETER (E3
LS650P SAVAGE 2000 (Y) USA (E03)

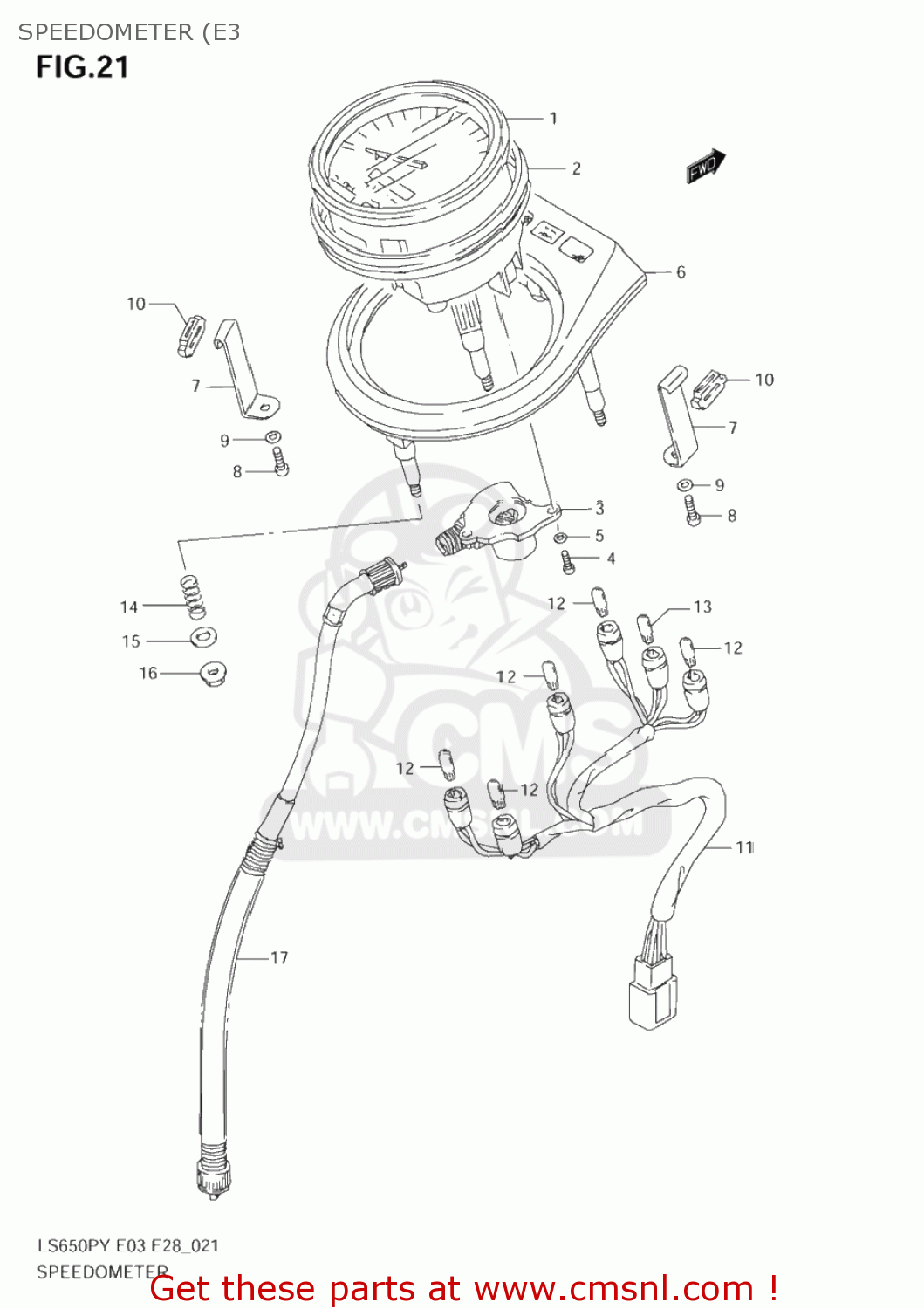

Speedometer (e3 diagram LS650P SAVAGE 2000 (Y) USA (E03)
SPEEDOMETER (E3 LS650P SAVAGE 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3411024C20
ref: 1
SPEEDOMETER(MILE/KILO)
€ 254.50
2
3428824B80
ref: 2
CUSHION,METER
€ 12.50
3-1
3413133450
ref: 3-1
34131-19B00
GEAR BOX,SPEEDOMETER
€ 134.00
3-2
3413119B00
ref: 3-2
BOX,GEAR
€ 134.00
4
0211204087
ref: 4
SCREW
€ 1.50
5
0832101043
ref: 5
08321-0104A
WASHER,LOCK
€ 2.00
6-1
3415124B80
ref: 6-1
34151-24B81
HOOD,METER
€ 97.50
6-2
3415124B81
ref: 6-2
HOOD,METER
€ 97.50
7
3411124B80
ref: 7
BRACKET,METER
€ 14.00
8
0211204087
ref: 8
SCREW
€ 1.50
9
0832101043
ref: 9
08321-0104A
WASHER,LOCK
€ 2.00
10
3418924B80
ref: 10
CUSHION
€ 4.50
11
3417024B20
ref: 11
SOCKET,METER
€ 61.00
12
0947112103
ref: 12
BULB(12V3W,T6.5)
€ 2.50
13
0947112108
ref: 13
BULB(12V1.7W,T6.5)
€ 2.00
14
0944011022
ref: 14
SPRING
€ 2.00
15-1
0916005036
ref: 15-1
09160-05048
WASHER (5.5X14X1.2)
€ 2.00
15-2
0916005048
ref: 15-2
WASHER(5.5X14X1.2)
€ 2.00
16
0836115053
ref: 16
08361-1505B
NUT
€ 2.50
17
3491024B00
ref: 17
CABLE ASSY,SPEEDOMETER
€ 80.00
