CYLINDER
LS650P SAVAGE 2000 (Y) USA (E03)

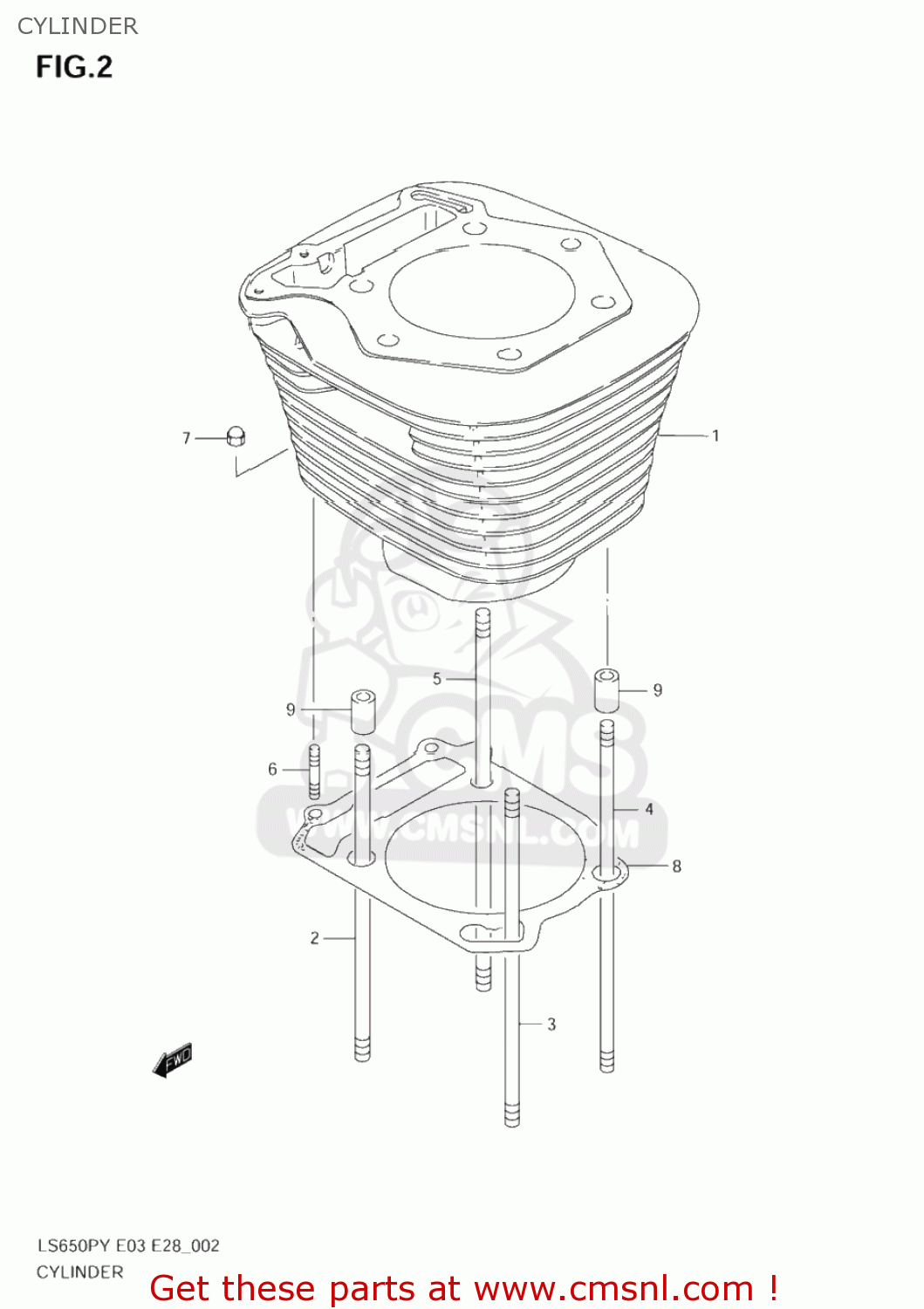

Cylinder diagram LS650P SAVAGE 2000 (Y) USA (E03)
CYLINDER LS650P SAVAGE 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121024B07
ref: 1-1
11210-24B07-0F0
CYLINDER
€ 606.50
1-2
1121024B070F0
ref: 1-2
CYLINDER
€ 606.50
1-3
1121024B100F0
ref: 1-3
CYLINDER
€ 490.50
2
0910809001
ref: 2
BOLT,STUD
€ 7.50
3
0910809002
ref: 3
BOLT,STUD
€ 8.50
4
0910809003
ref: 4
BOLT,STUD
€ 9.00
5
0910809004
ref: 5
BOLT,STUD
€ 9.00
6-1
0142106208
ref: 6-1
01421-0620A
STUD 6X20
€ 2.50
6-2
0142106203
ref: 6-2
01421-0620A
STUD,M6X1X32
€ 2.50
7-1
0831310067
ref: 7-1
NUT
€ 2.00
7-2
0831310063
ref: 7-2
08313-1006A
NUT
€ 2.00
8
1124124B01H17
ref: 8
GASKET,CYLINDER (NAS)
€ 10.00
9
0421113189
ref: 9
PIN
€ 2.50
