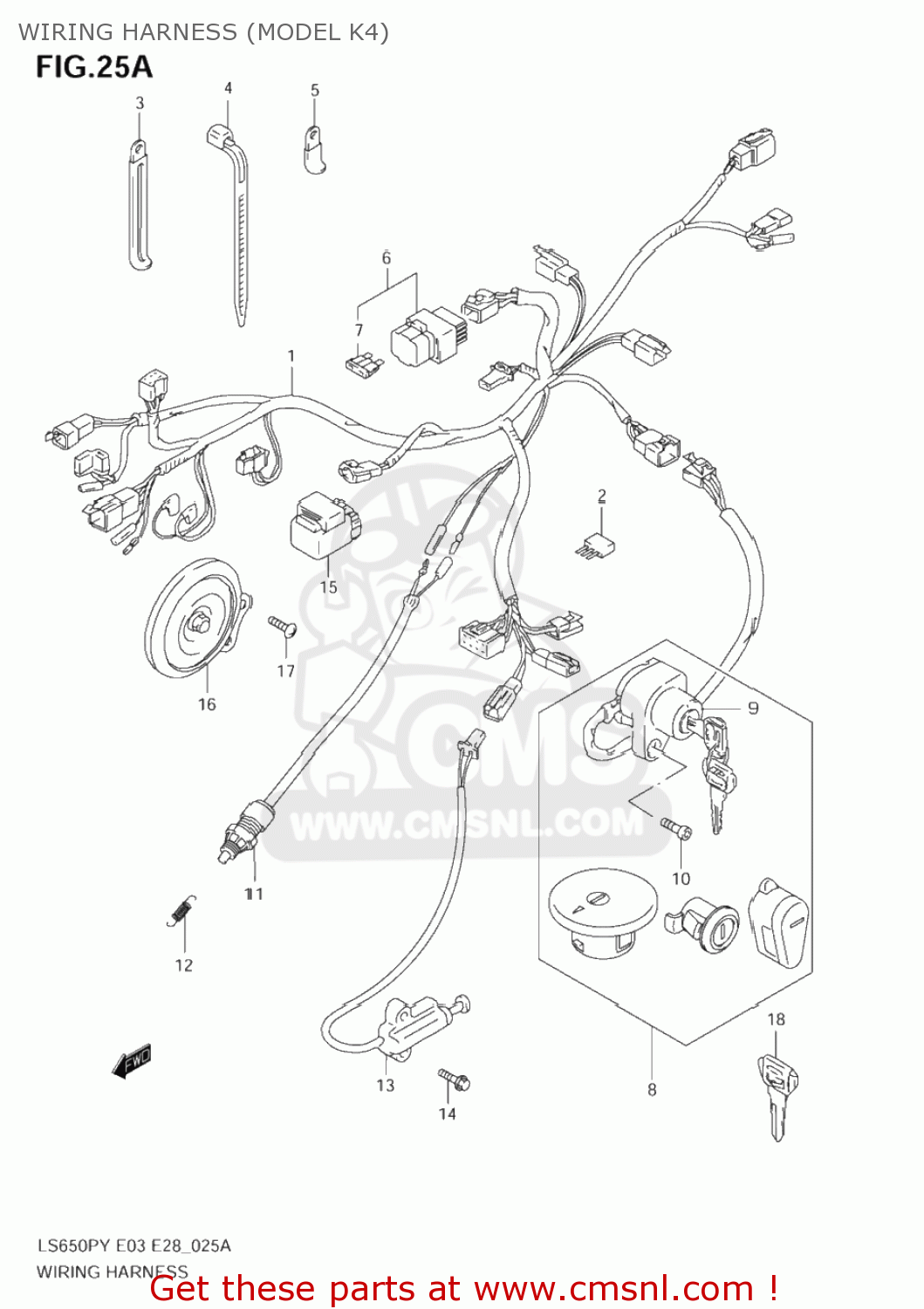

WIRING HARNESS (MODEL K4)

ref

part #

description

quantity

1

3661024BA0
ref: 1

HARNESS,WIRING

€ 0.00

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3

0940408207
ref: 3

CLAMP(L:80)

€ 3.00

4-1

0940714403
ref: 4-1

CLAMP(L:125)

€ 2.50

4-2

0940718402
ref: 4-2

CLAMP(L:165)

€ 2.50

4-3

0940725401
ref: 4-3

CLAMP(L:235)

€ 4.00

5

3665124B00
ref: 5

CLAMP

€ 0.00

6

3674024B01
ref: 6

BOX ASSY,FUSE

€ 18.00

7

0948120101
ref: 7

FUSE(20A)

€ 2.00

8-1

3710024844
ref: 8-1

LOCK SET

€ 262.50

8-2

3710024880
ref: 8-2

LOCK SET

€ 0.00

9

3711024B03
ref: 9

SWITCH ASSY,IGNITION

€ 71.00

10

0713005163
ref: 10
07130-0516A

BOLT

€ 2.00

11

3774031D00
ref: 11

SWITCH ASSY,STOP LAMP

€ 20.50

12

0944306077
ref: 12

SPRING

€ 4.50

13

3784012X50
ref: 13

SWITCH ASSY,SIDE STAND WARNING

€ 76.00

14

0155006203
ref: 14
01550-0620A

BOLT

€ 2.50

15

3874024X50
ref: 15

RELAY ASSY

€ 37.50

16

3850024B00
ref: 16

HORN ASSY

€ 52.00

17

0214206123
ref: 17
02142-0612A

SCREW 6X12

€ 2.00

18-1

3714603A00
ref: 18-1

KEY,BLANK(TYPE:C)

€ 6.00

18-2

3714603A10
ref: 18-2

KEY,BLANK(TYPE:D)

€ 6.00

18-3

3714603A20
ref: 18-3

KEY,BLANK(TYPE:E)

€ 6.00

18-4

3714603A30
ref: 18-4

KEY,BLANK(TYPE:F)

€ 6.00
